76 Prosodic Patterns

These figures show 76 dimensions of prosody in dialog, as described in Automatic Discovery of Simply-Composable Prosodic Elements.

Time is in milliseconds. First-speaker features are on top and second-speaker features below. Line width indicates volume, with the median volume seen at the far left and right of the figure. Height indicates pitch, with the median indicated by the dashed line. Darkness indicates rate.

The descriptions of dimension meanings/functions are abbreviated, and some are have more speculative. Some of the symmetries and partial symmetries appear to be artifacts of the corpus used. For details please see the paper.

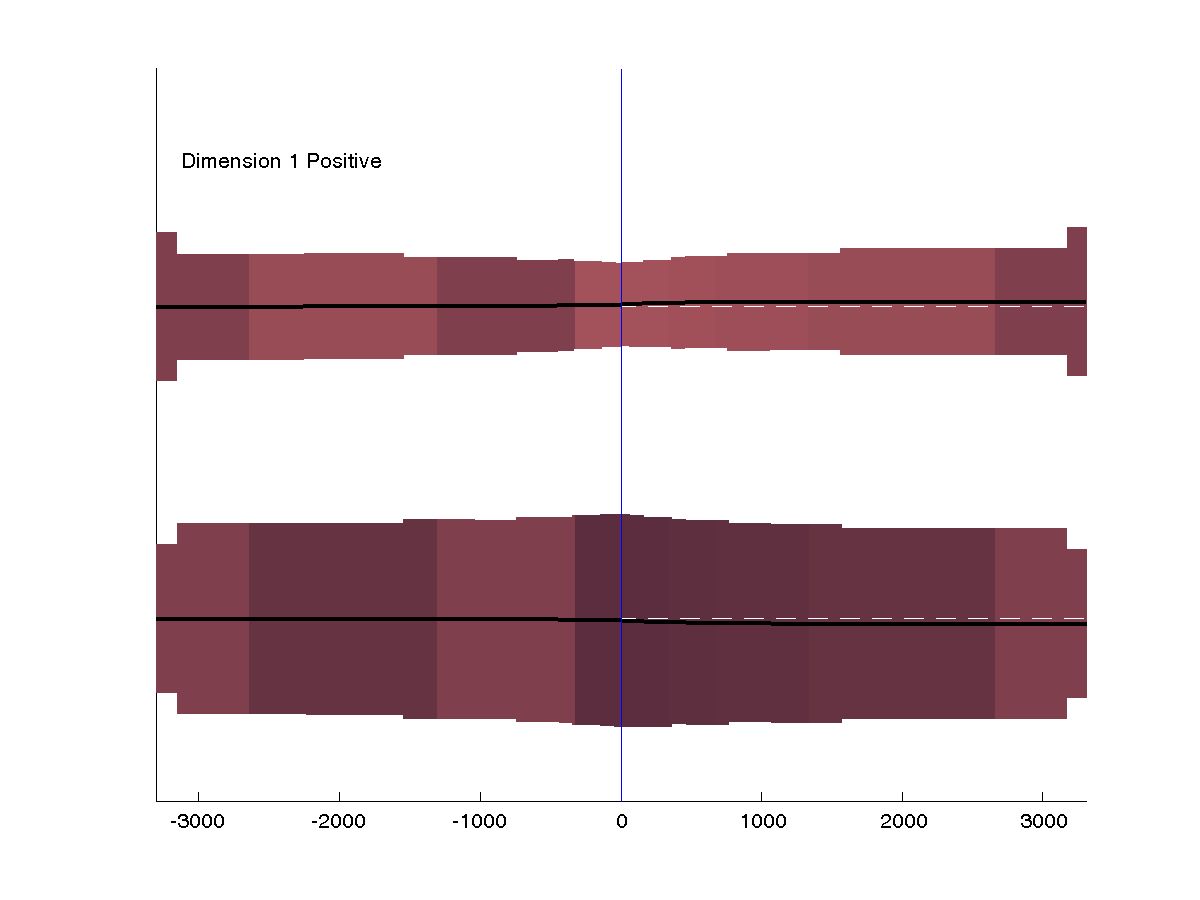

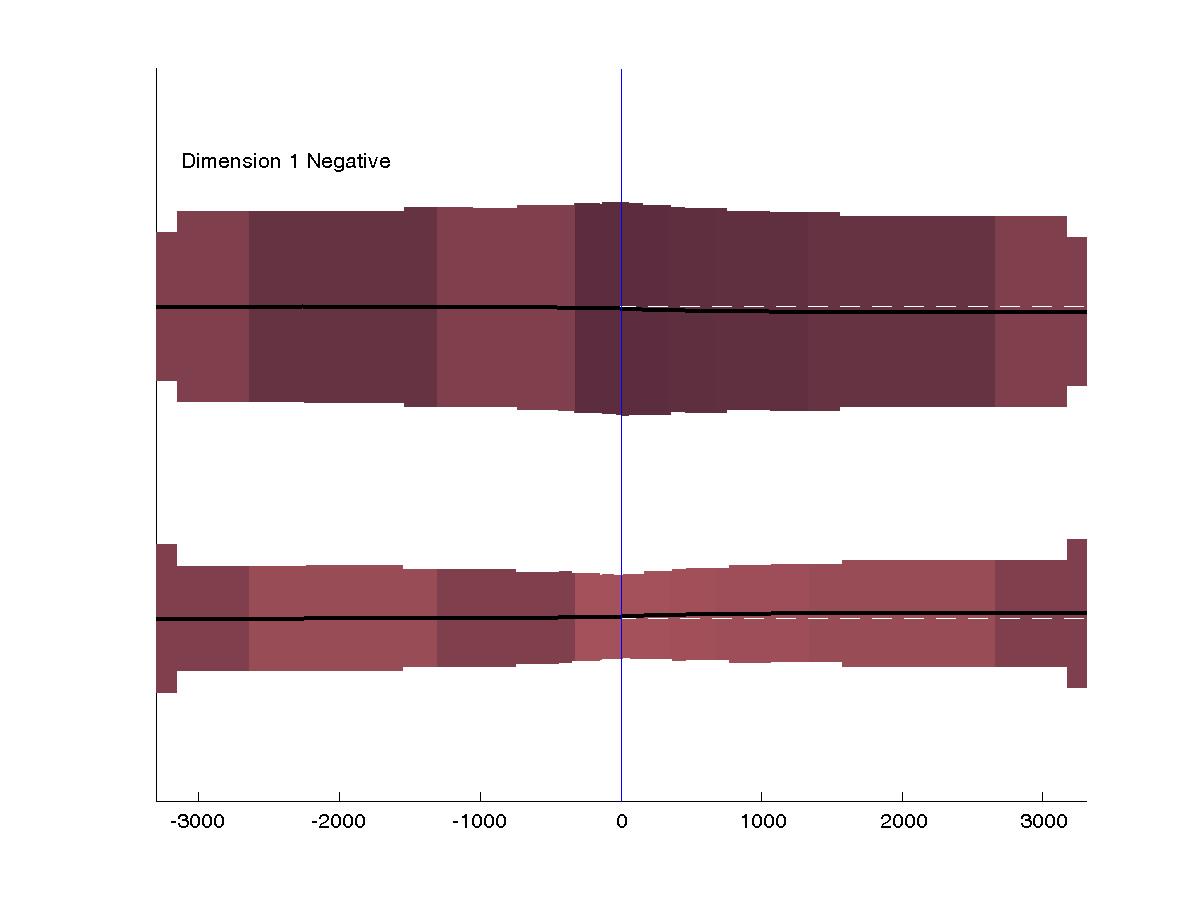

Dimension 1: this speaker talking vs. other speaker talking

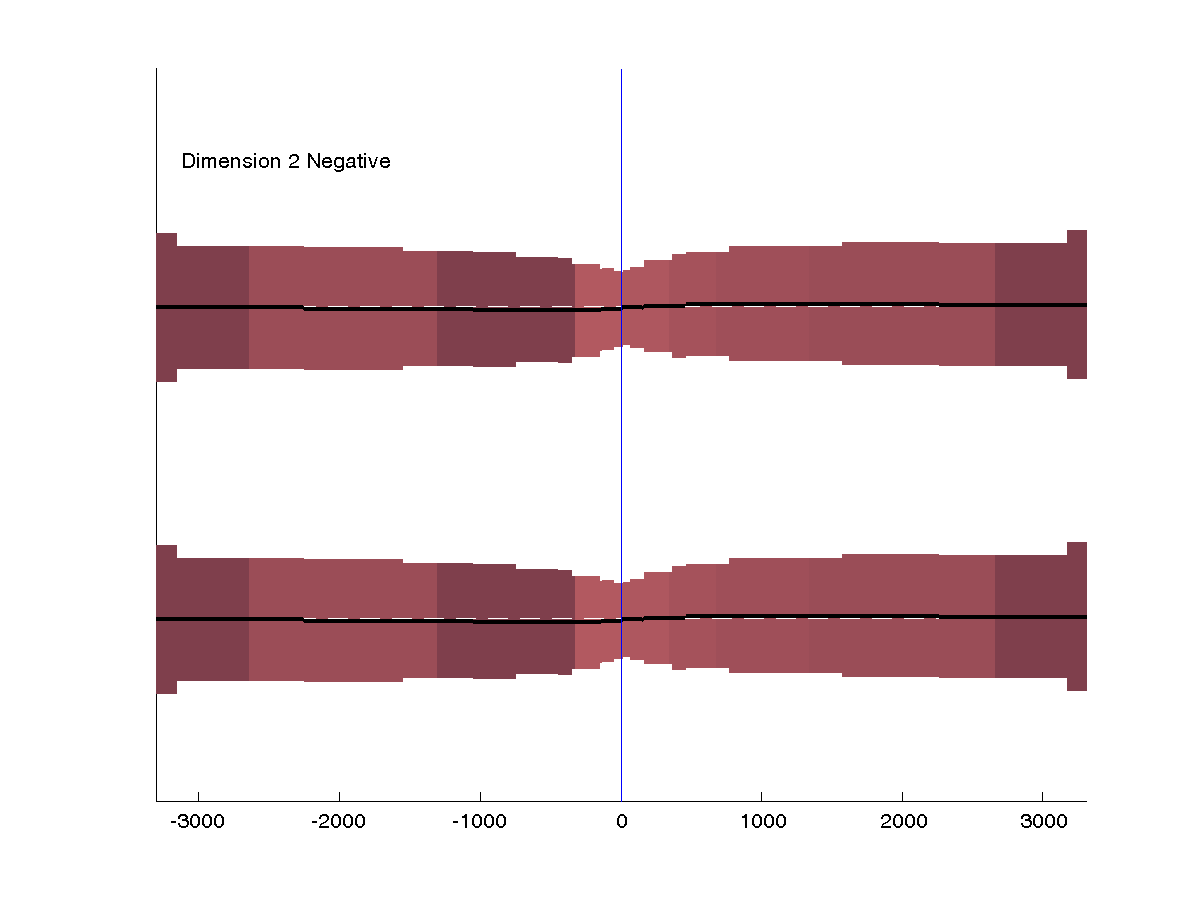

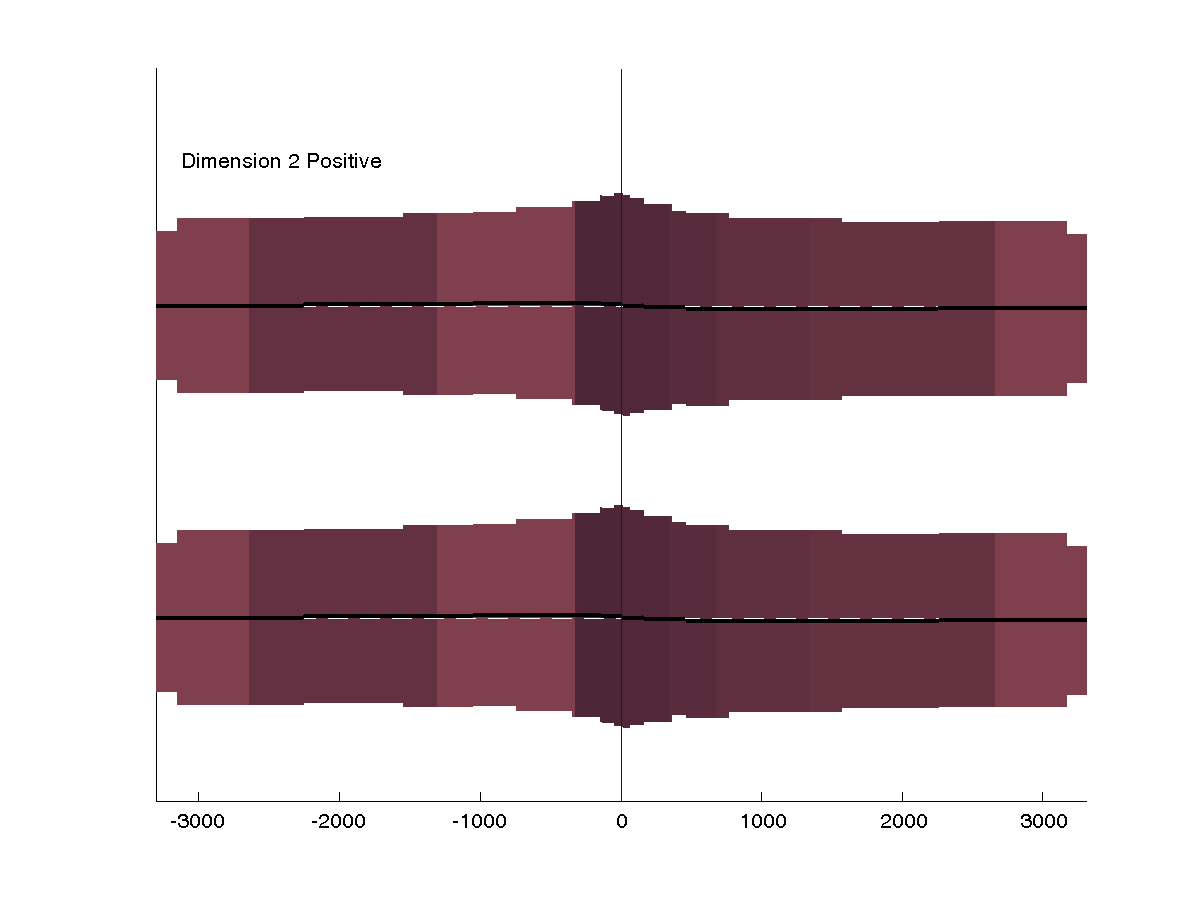

Dimension 2: neither speaking vs. both speaking

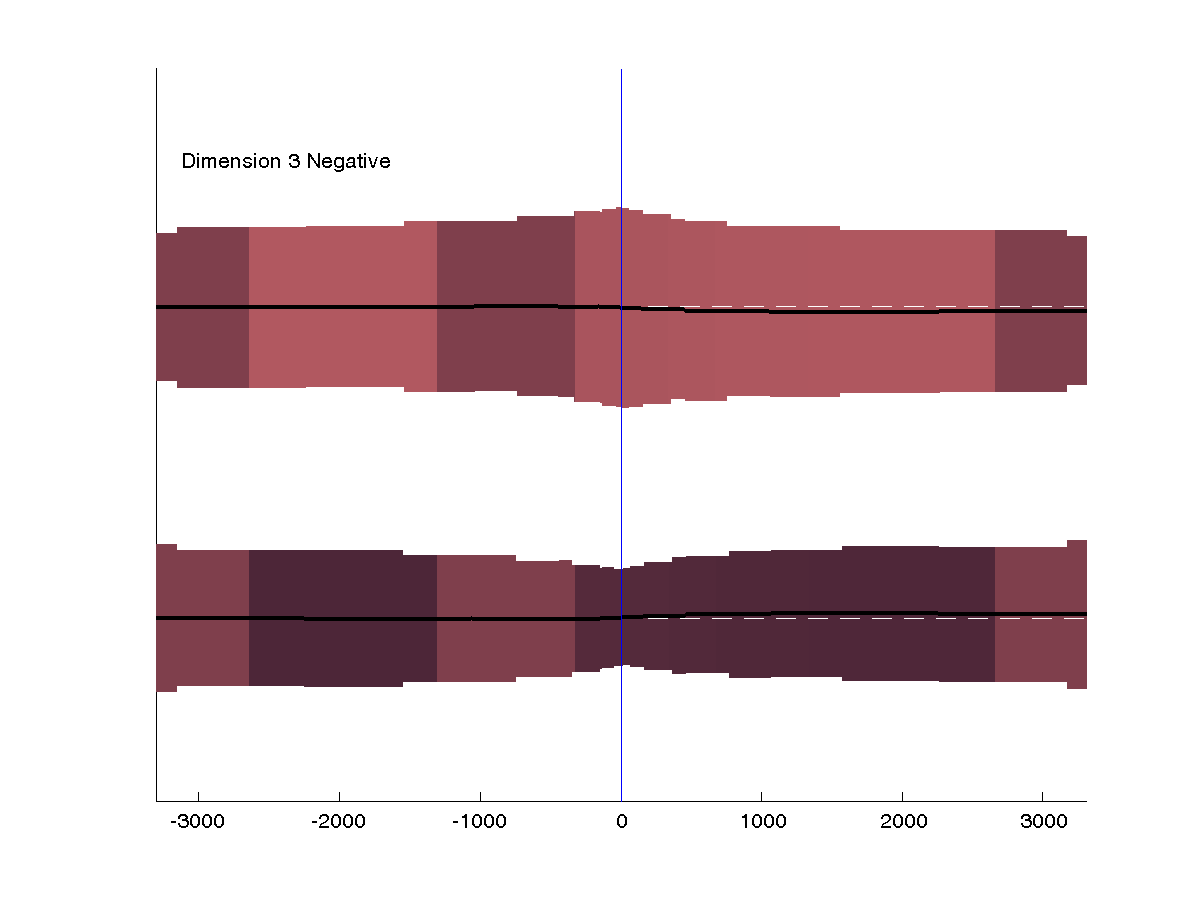

Dimension 3: topic closing vs. topic continuation

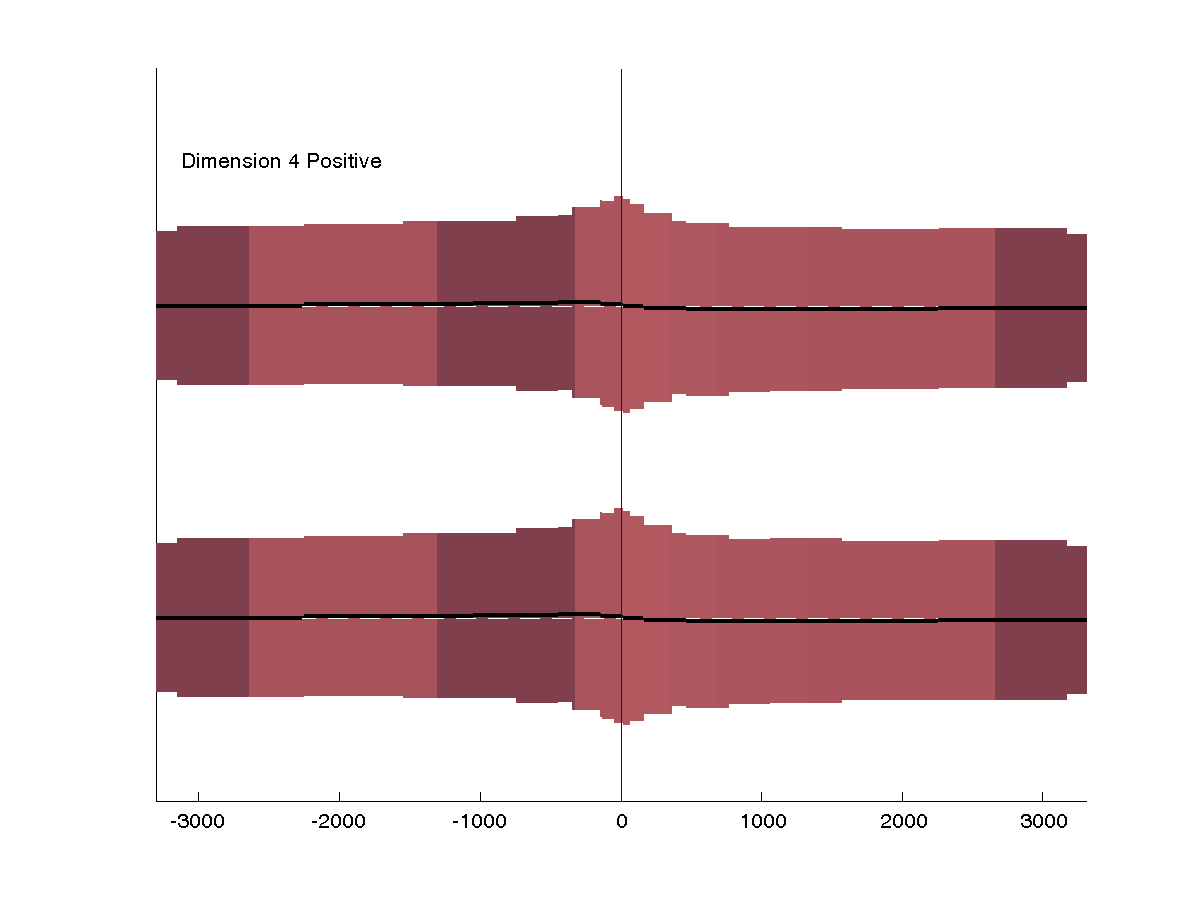

Dimension 4: grounding vs. grounded

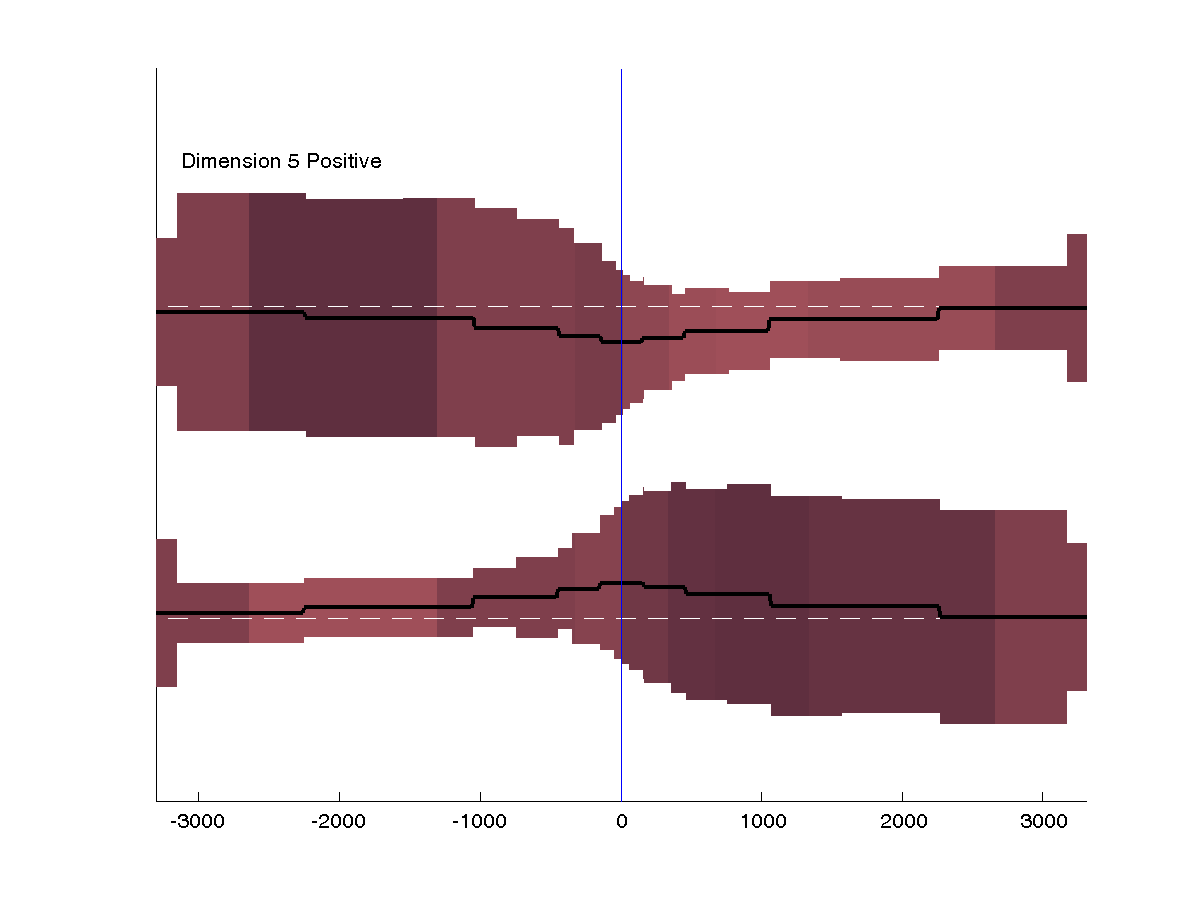

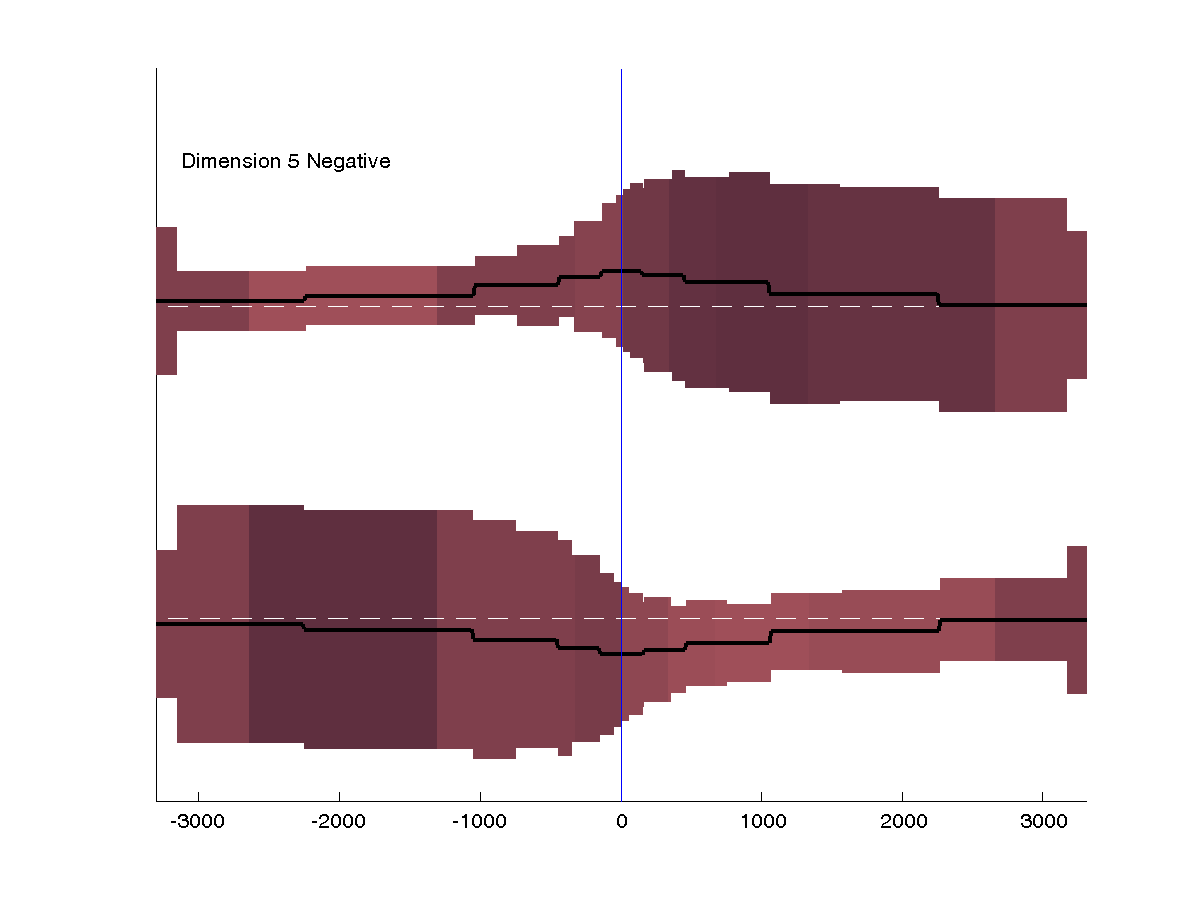

Dimension 5: turn grab vs. turn yield

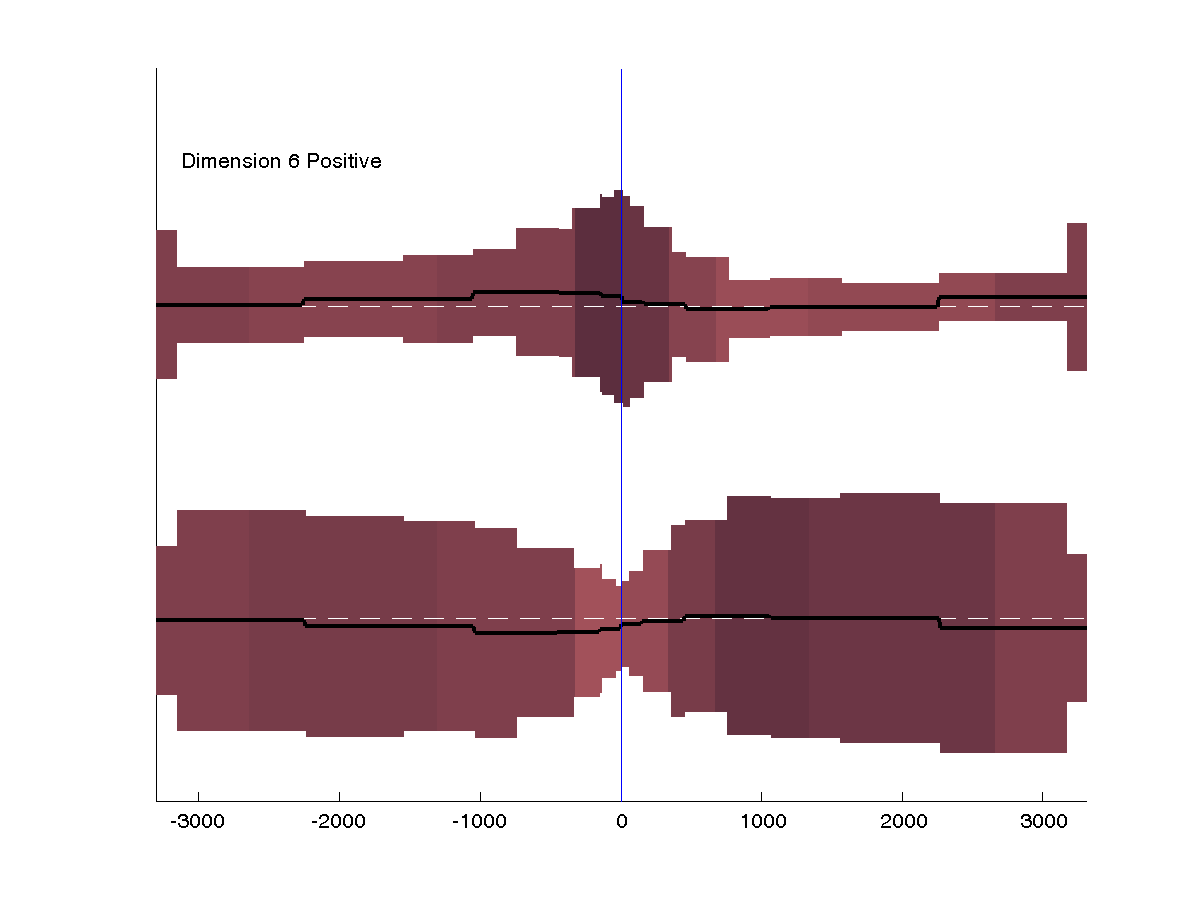

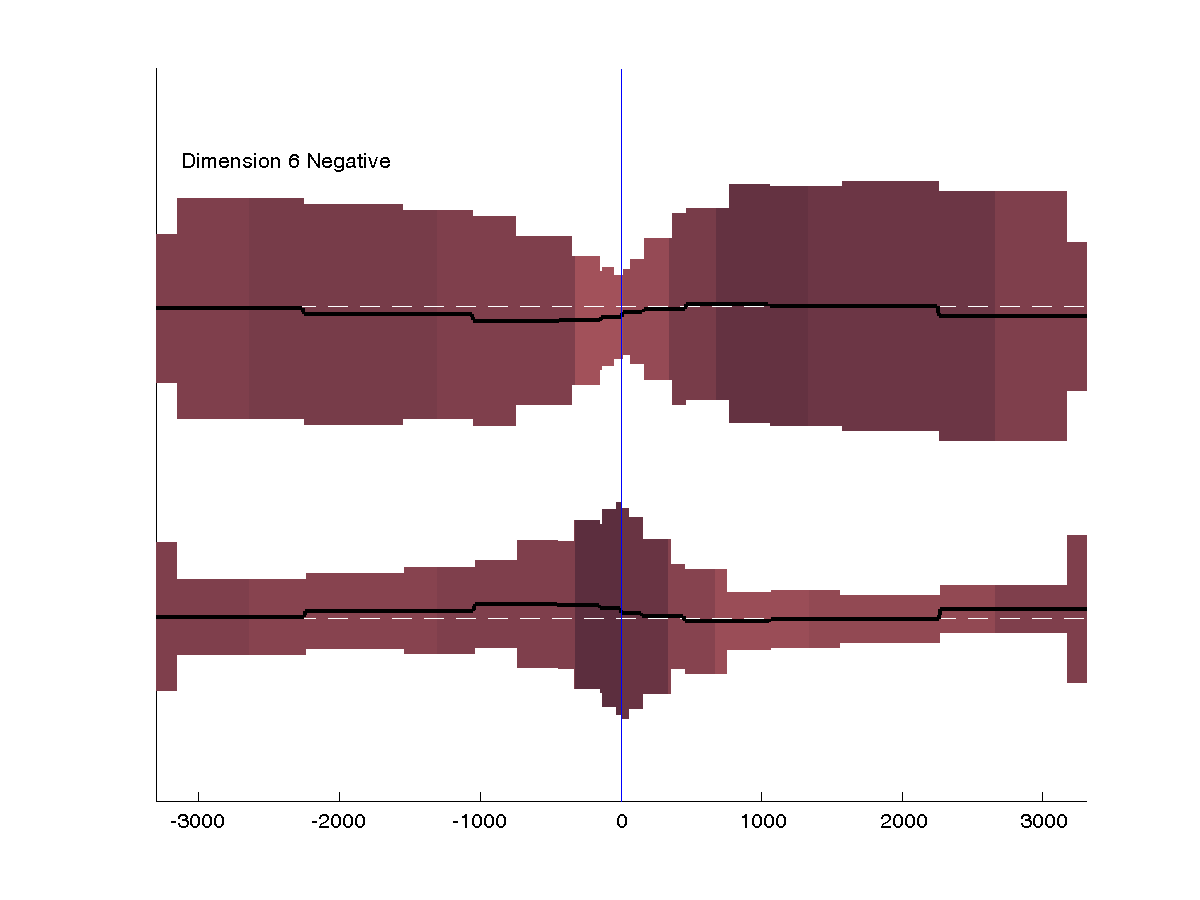

Dimension 6: seking empathy vs. expressing empathy

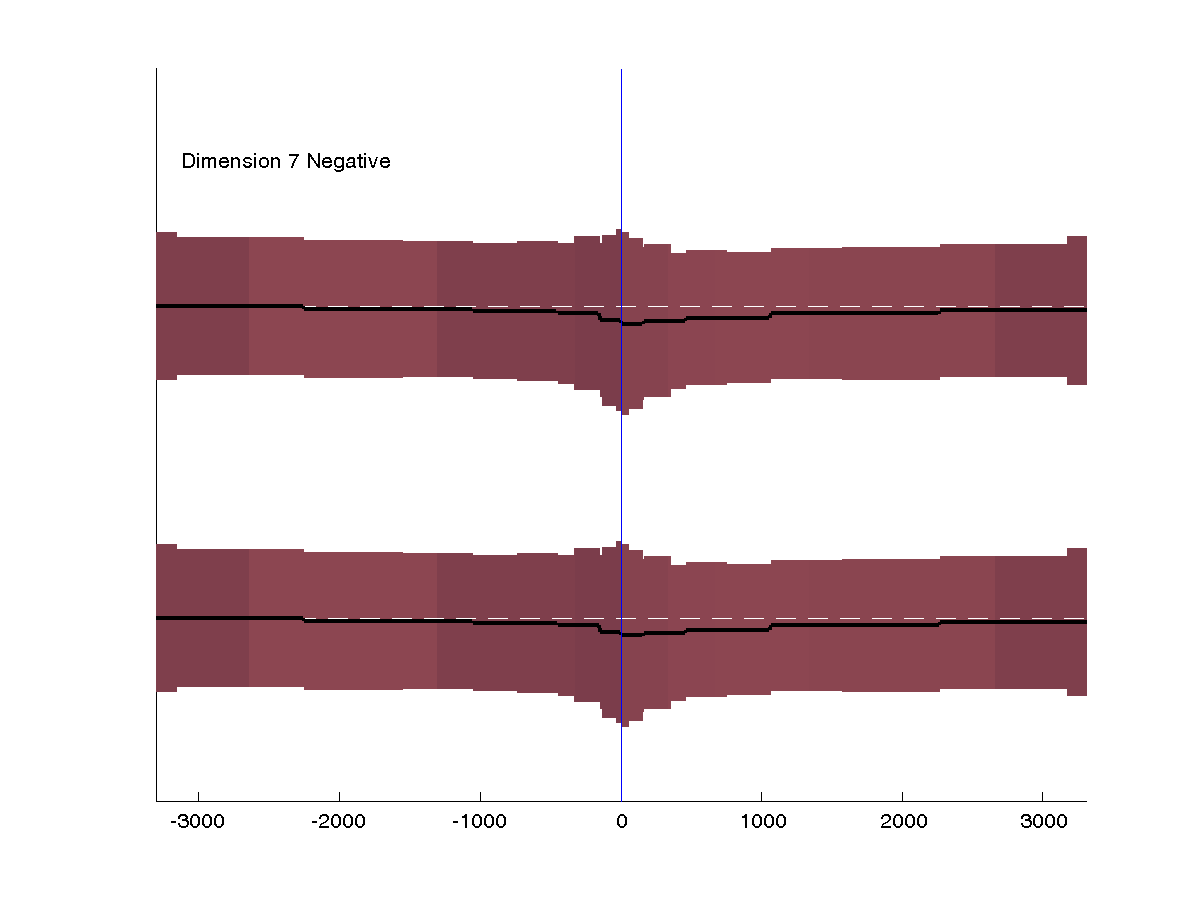

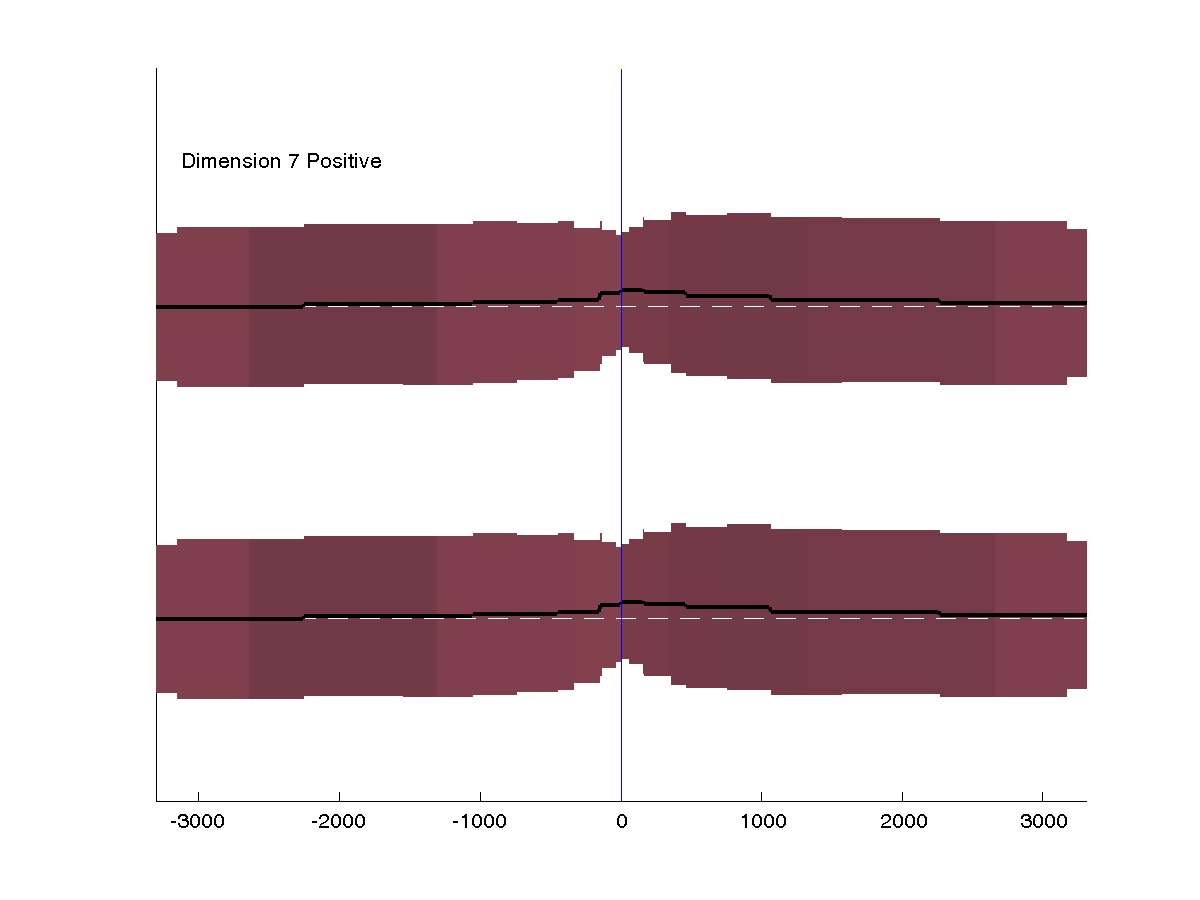

Dimension 7: floor conflict vs. floor sharing

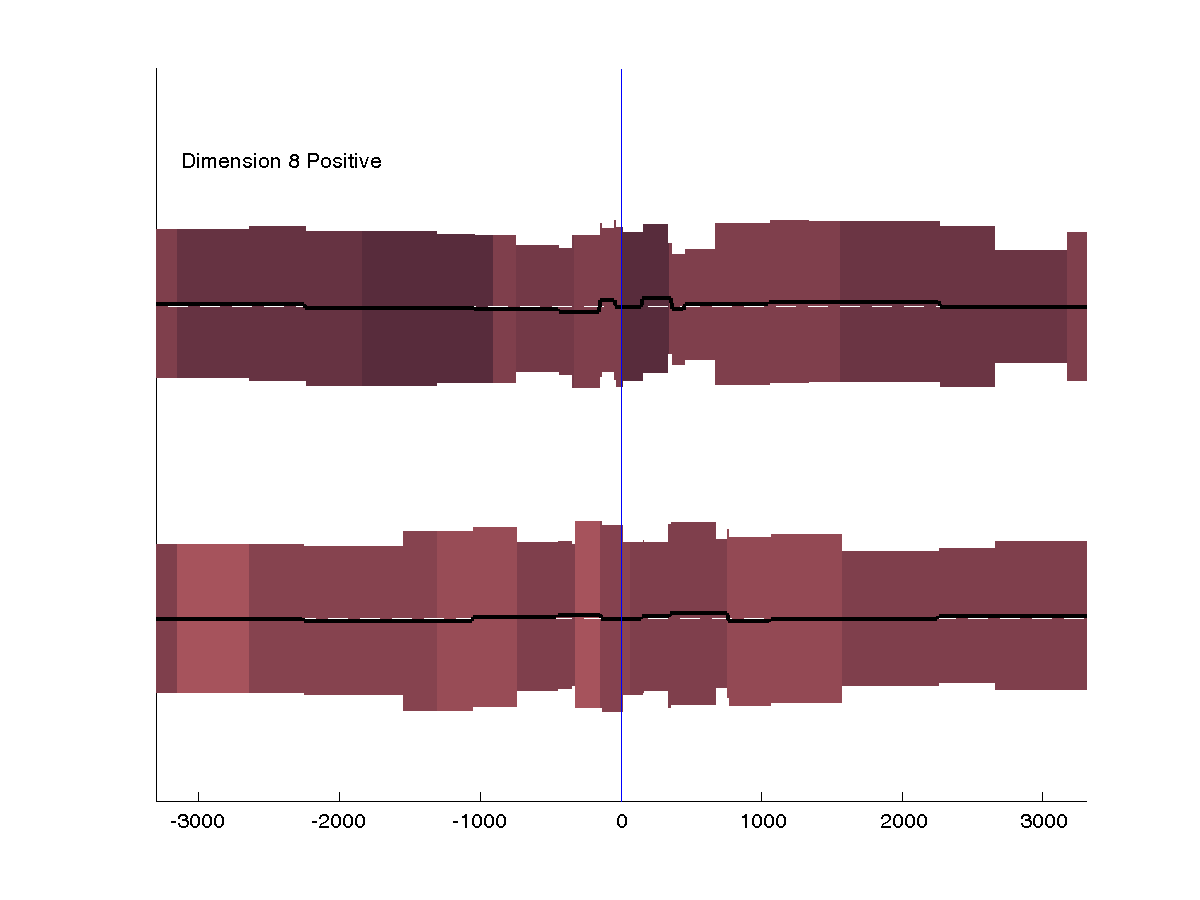

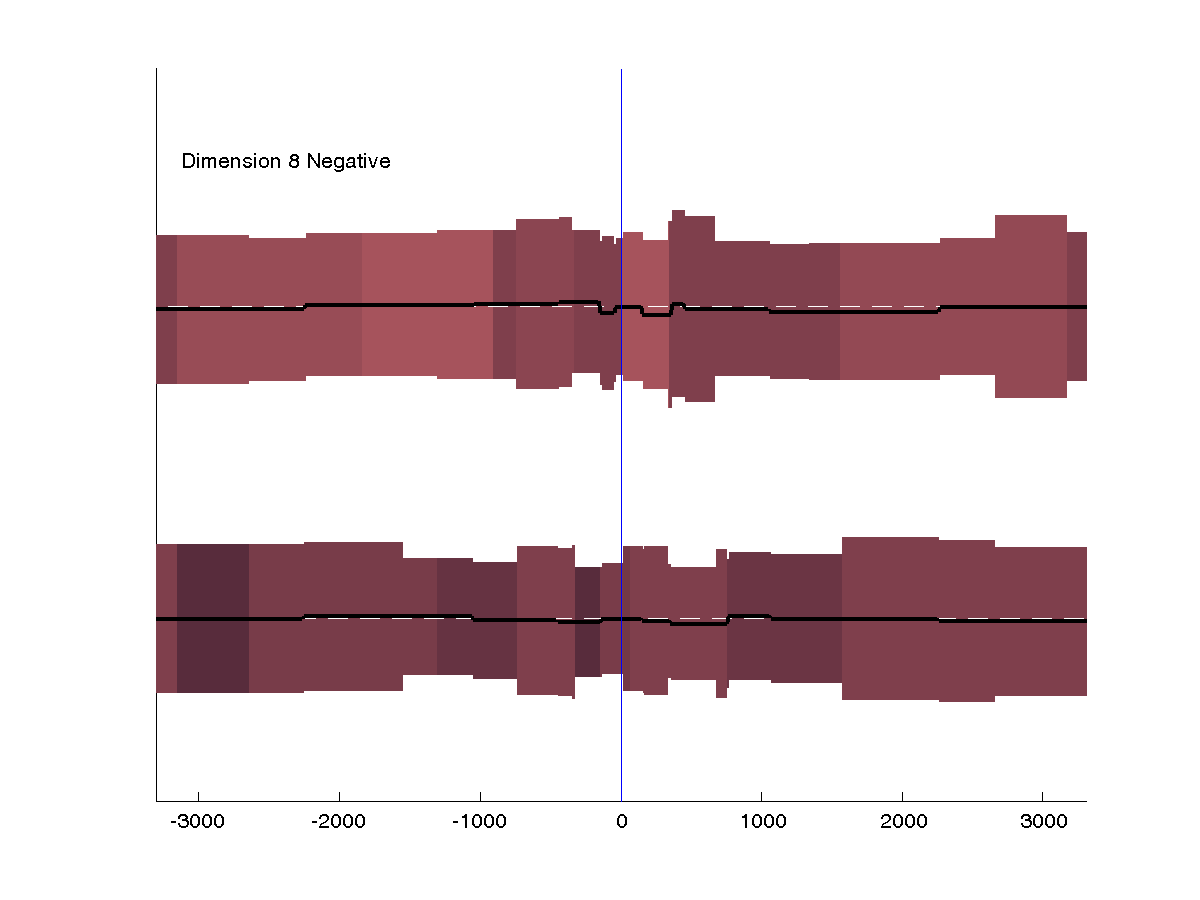

Dimension 8: dragging out a turn vs. ending confidently and crisply

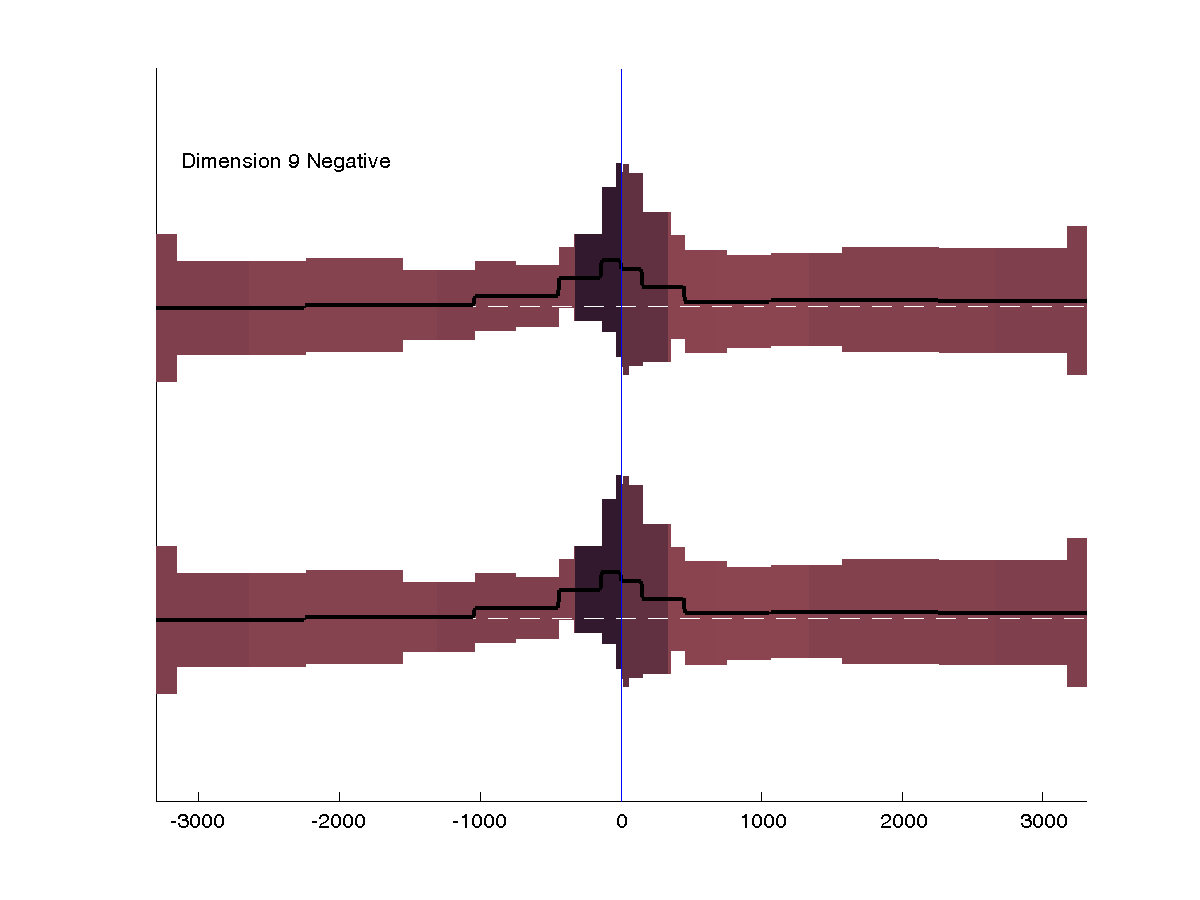

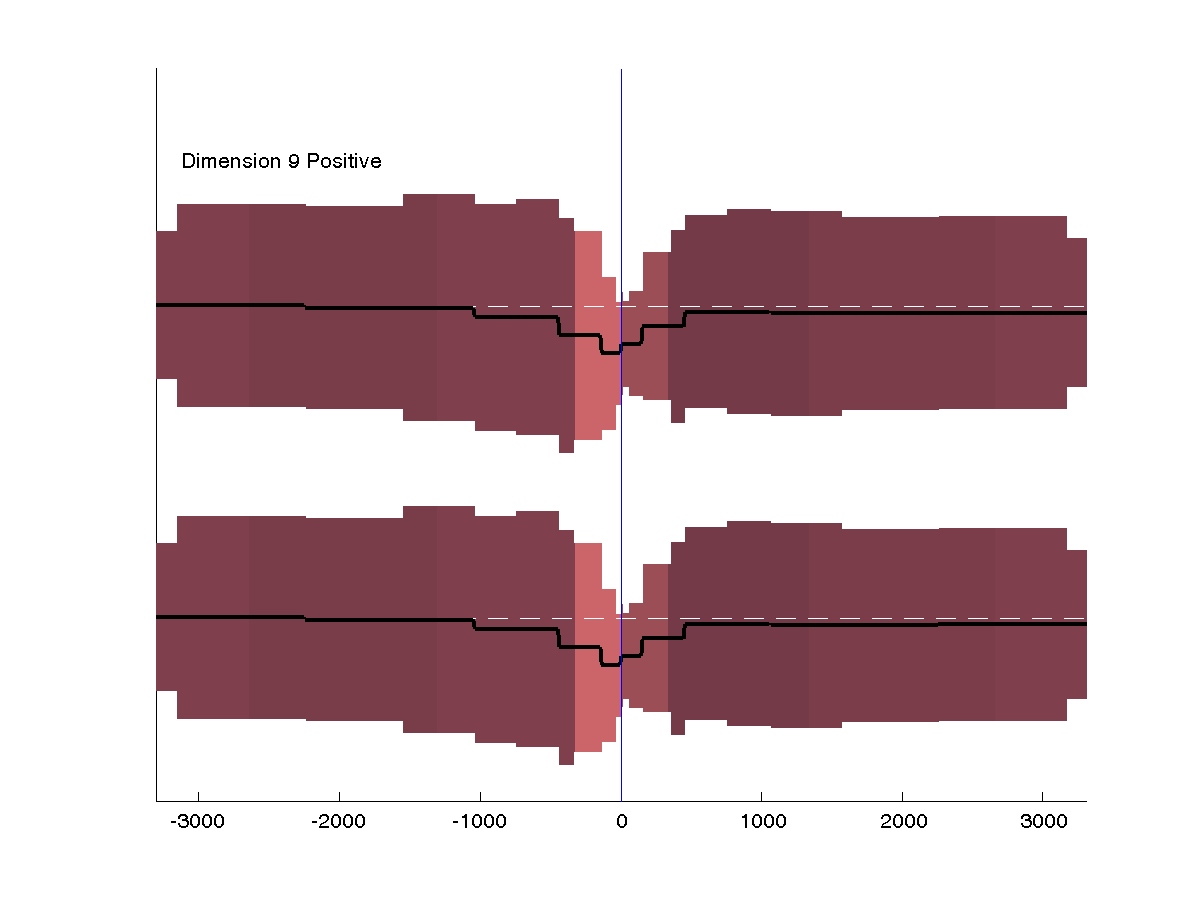

Dimension 9: topic exhaustion vs topic interest

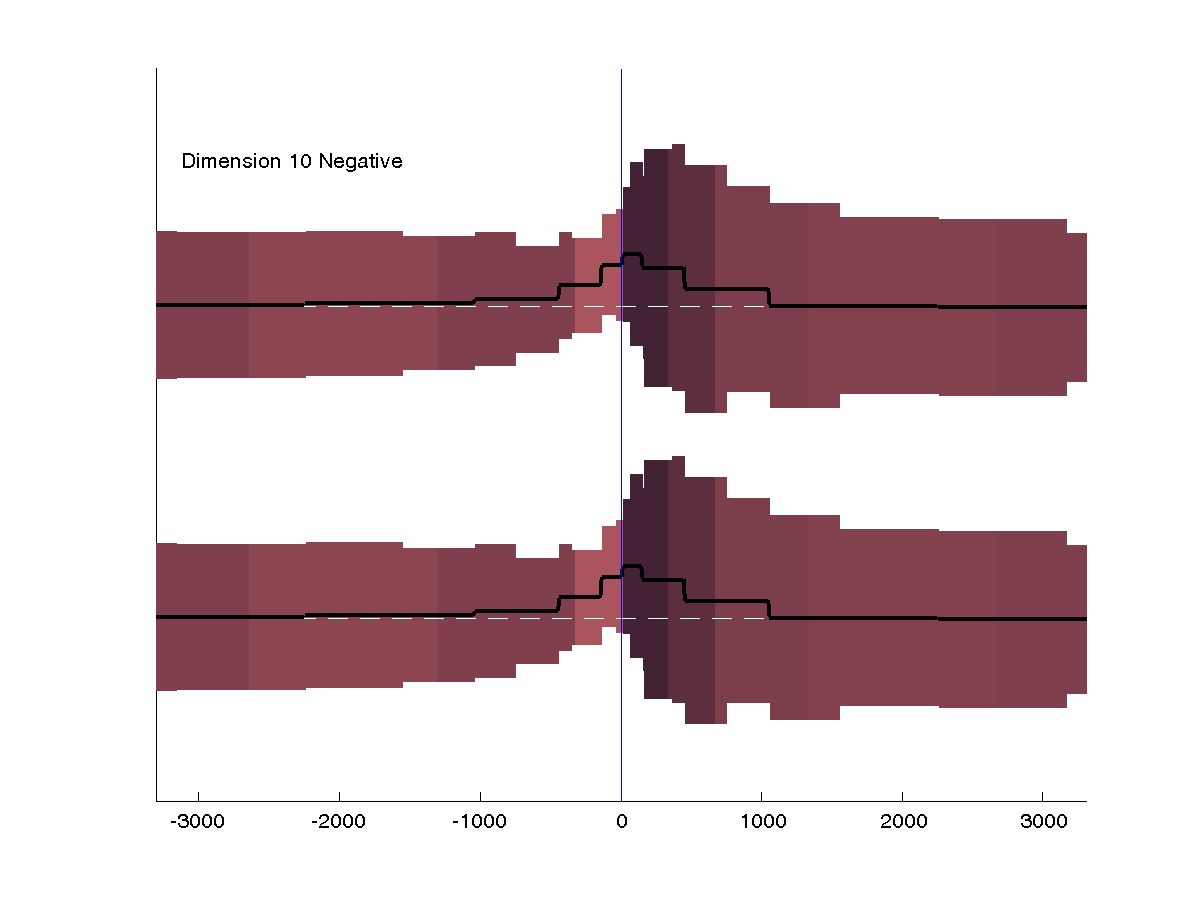

Dimension 10: lexical access or memory retrieval vs. disengaging

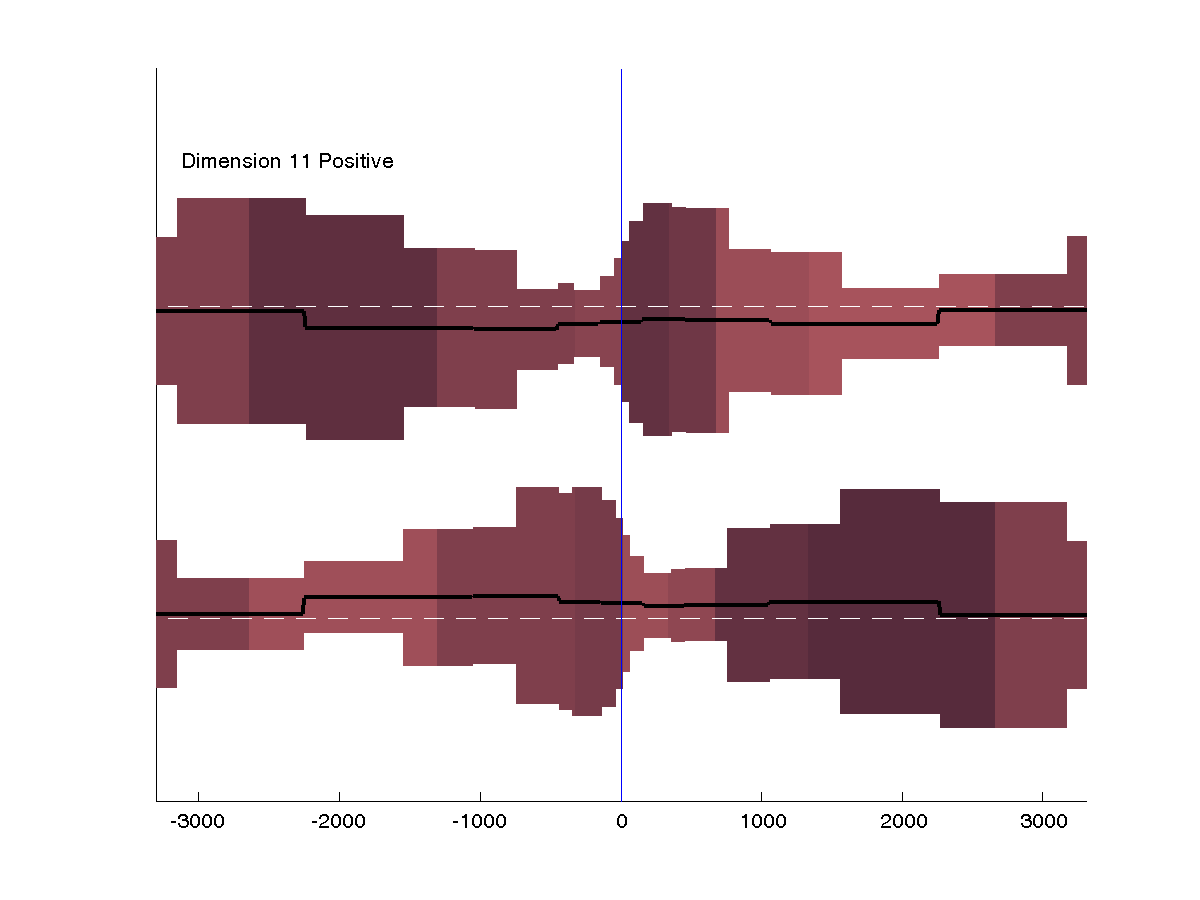

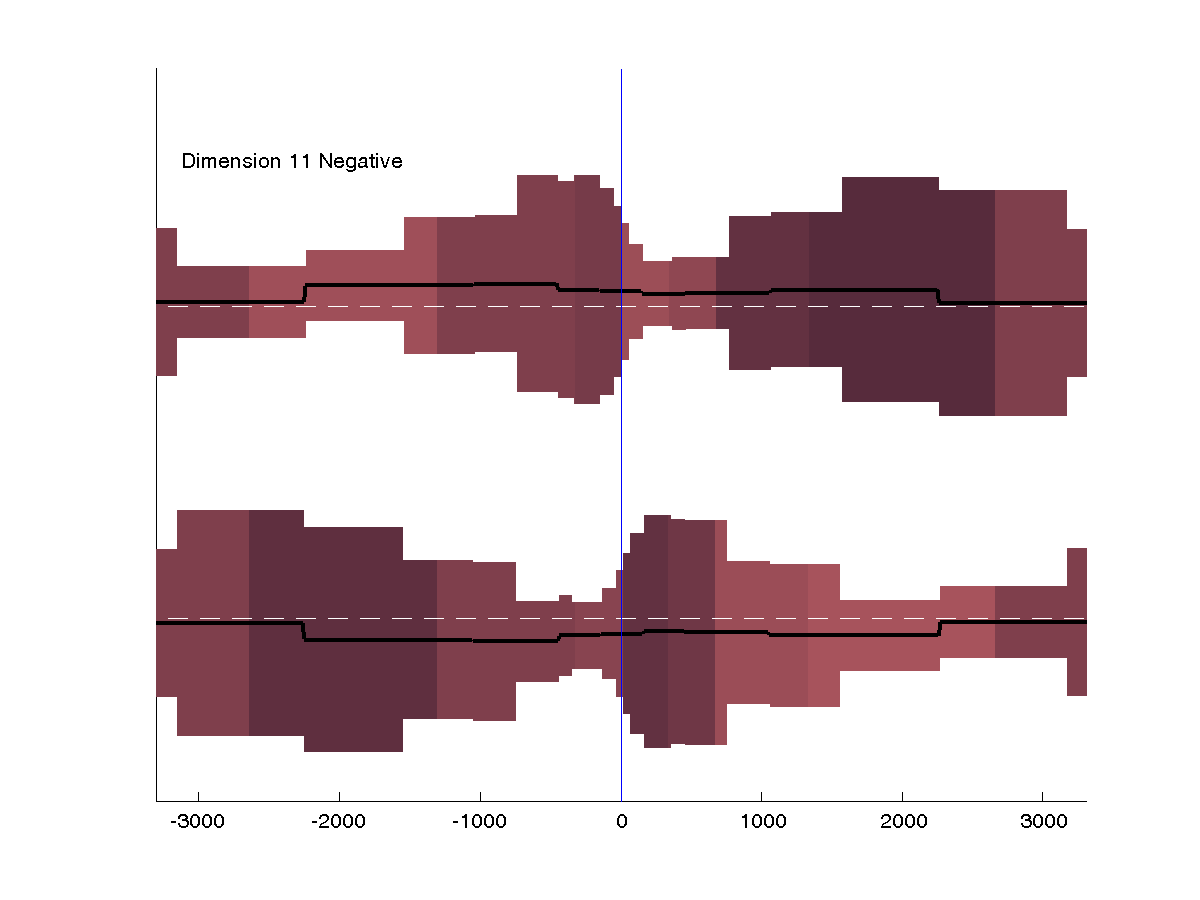

Dimension 11: low content and low confidence vs. quickness

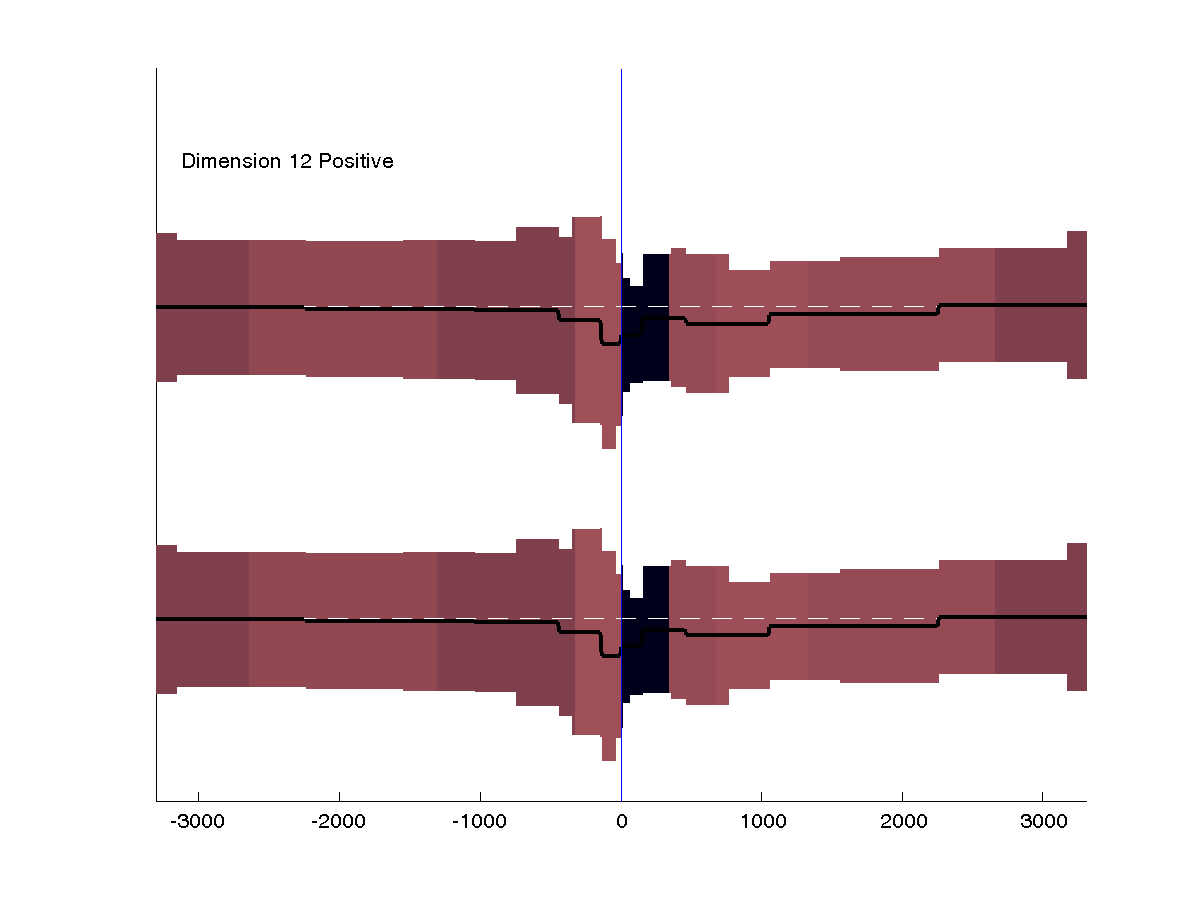

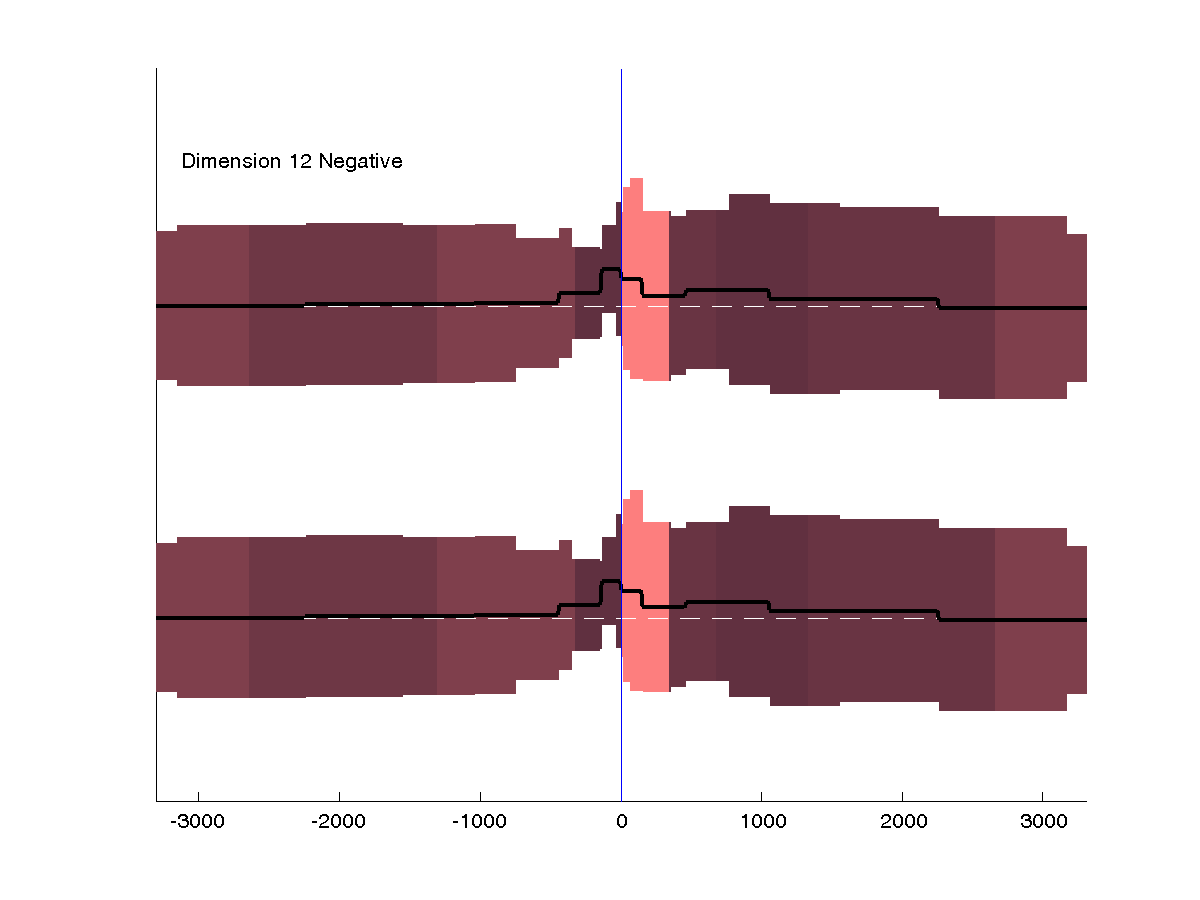

Dimension 12: claiming the floor vs. releasing the floor

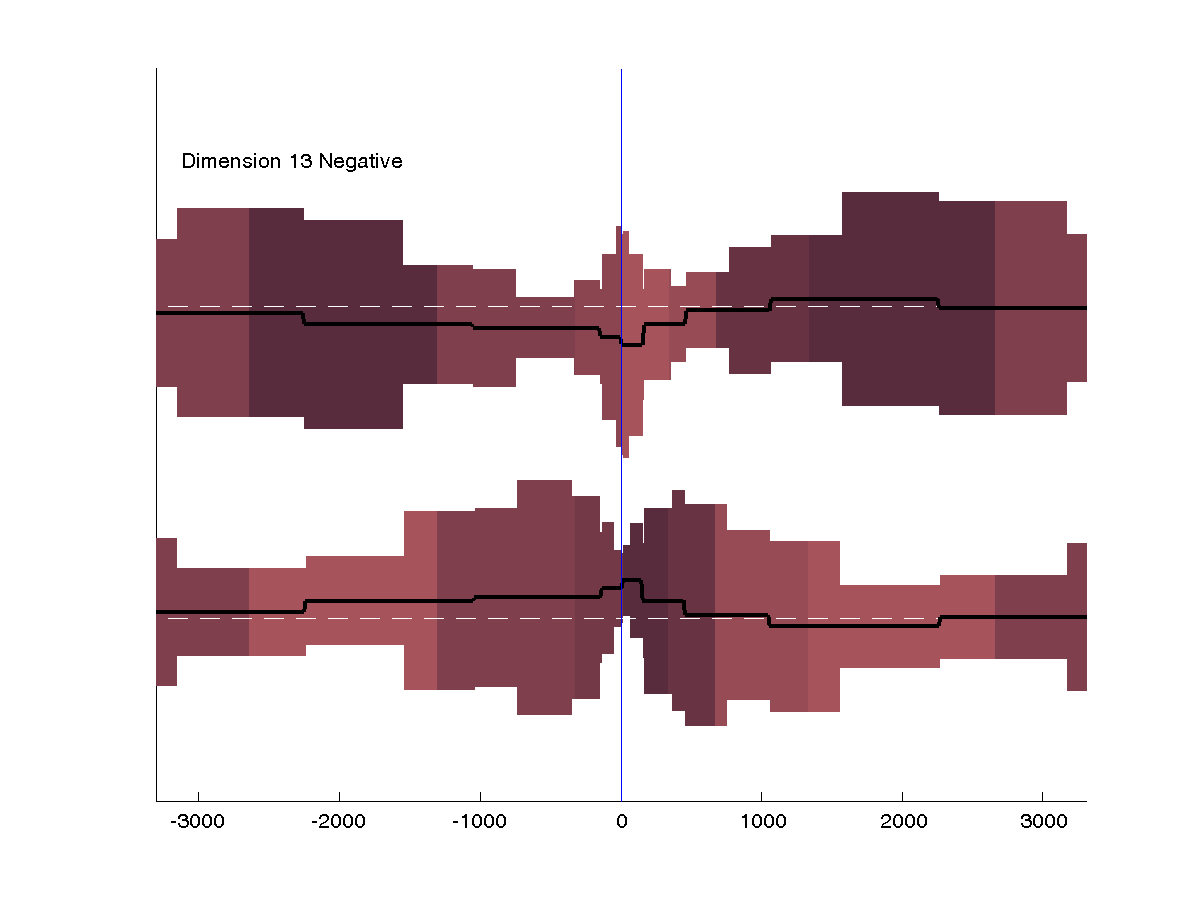

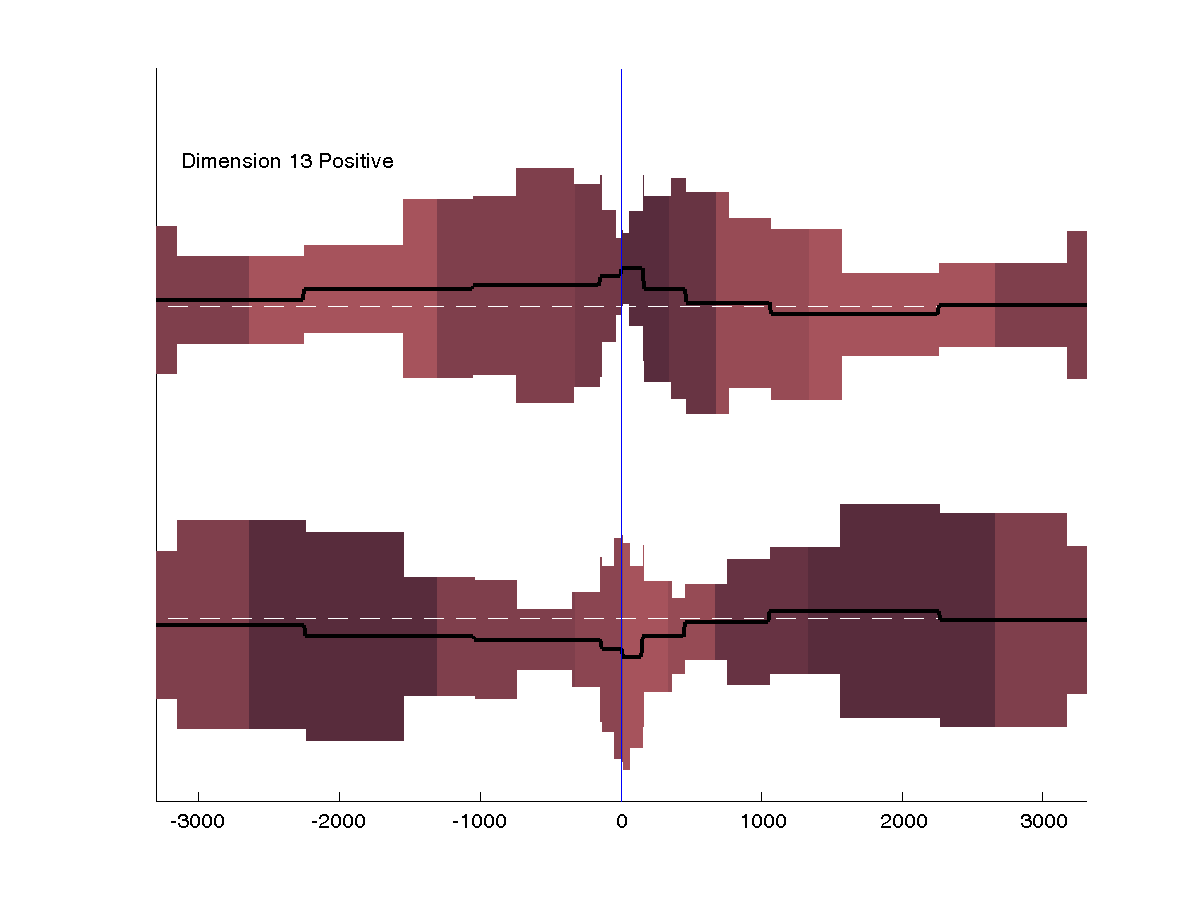

Dimension 13: starting a contrasting statement vs. starting a restatement

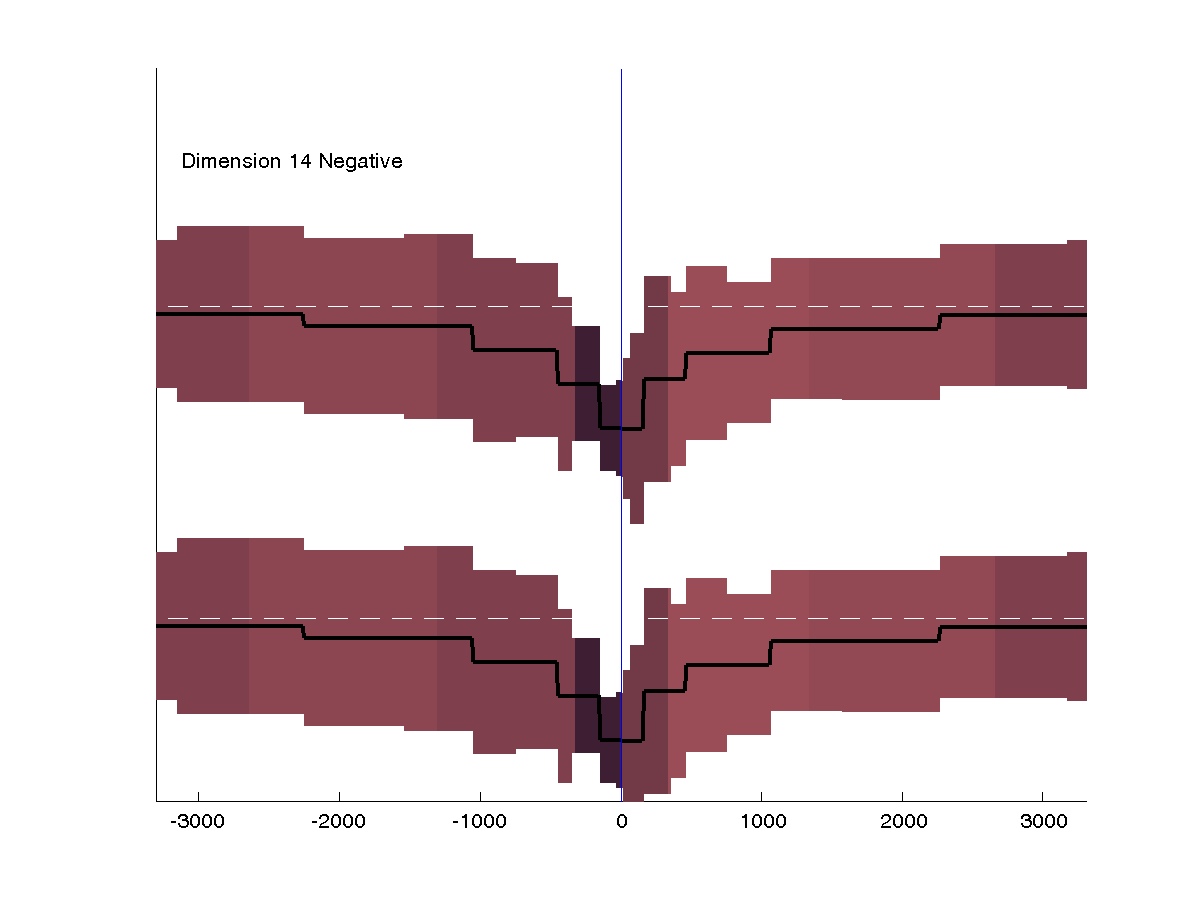

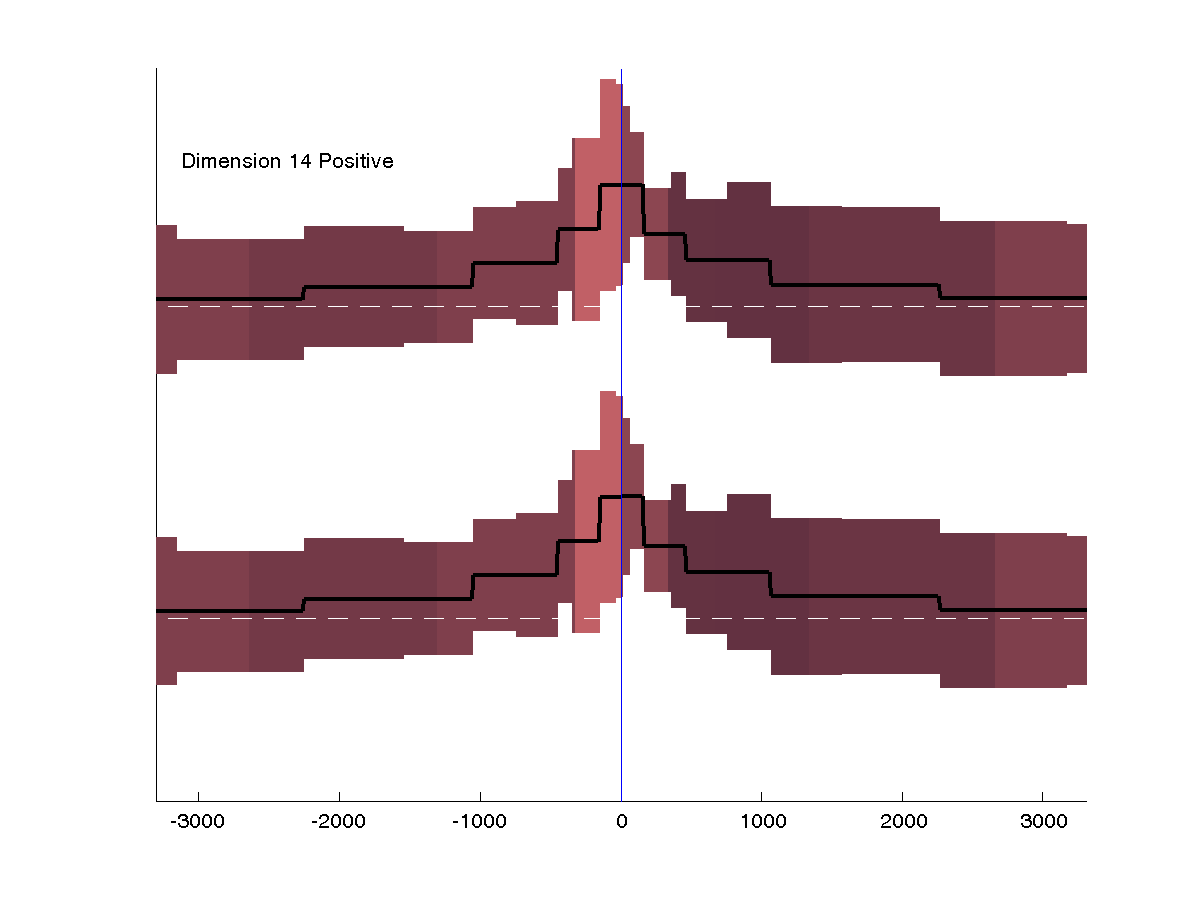

Dimension 14: rambling vs. placing emphasis

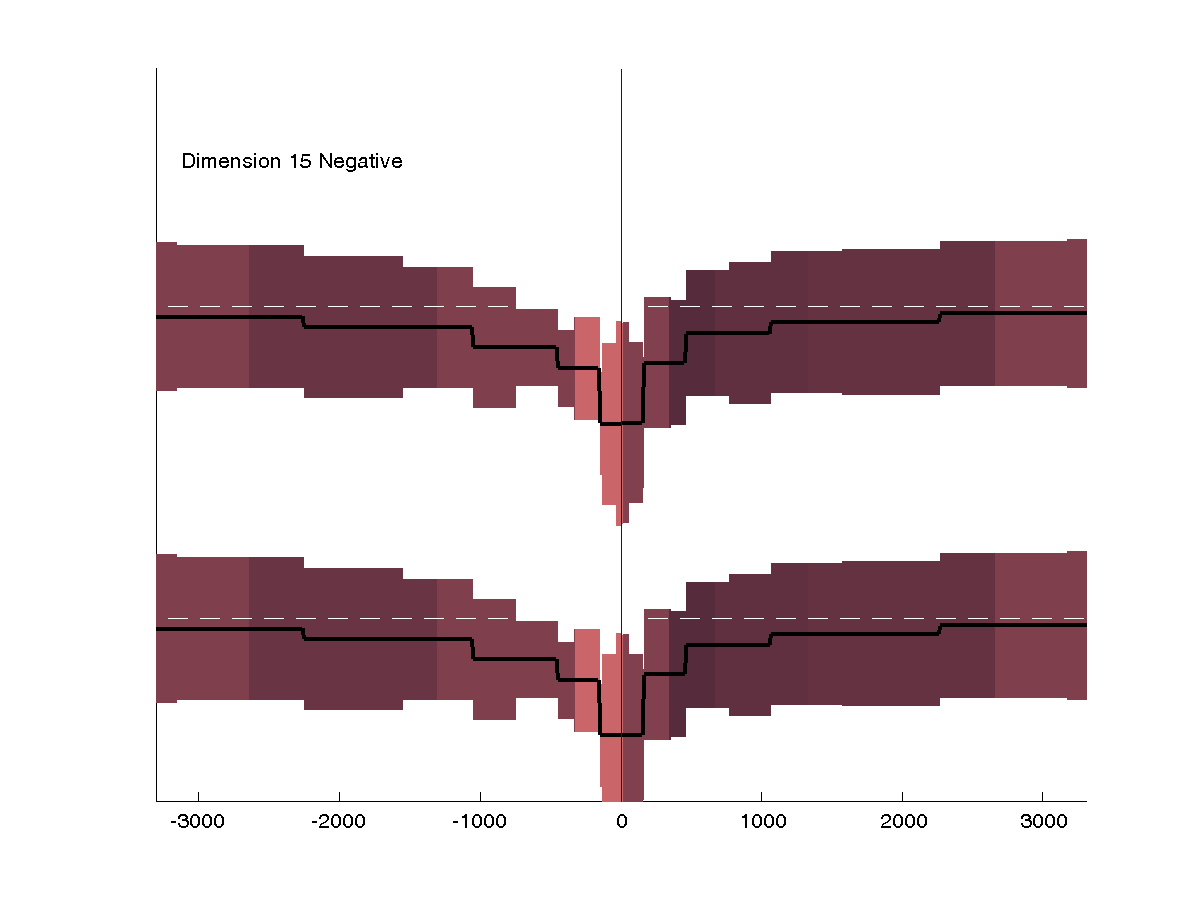

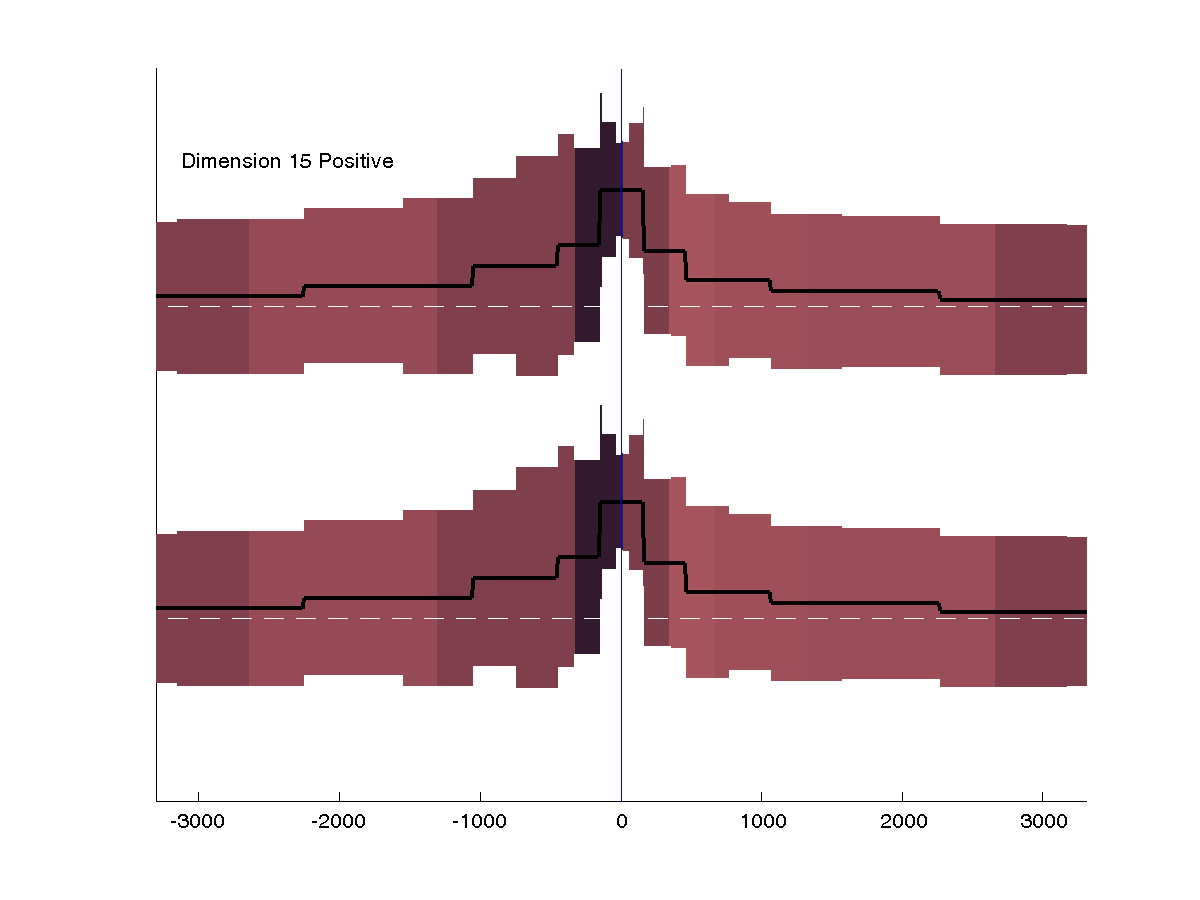

Dimension 15: speaking before ready vs. presenting held-back information

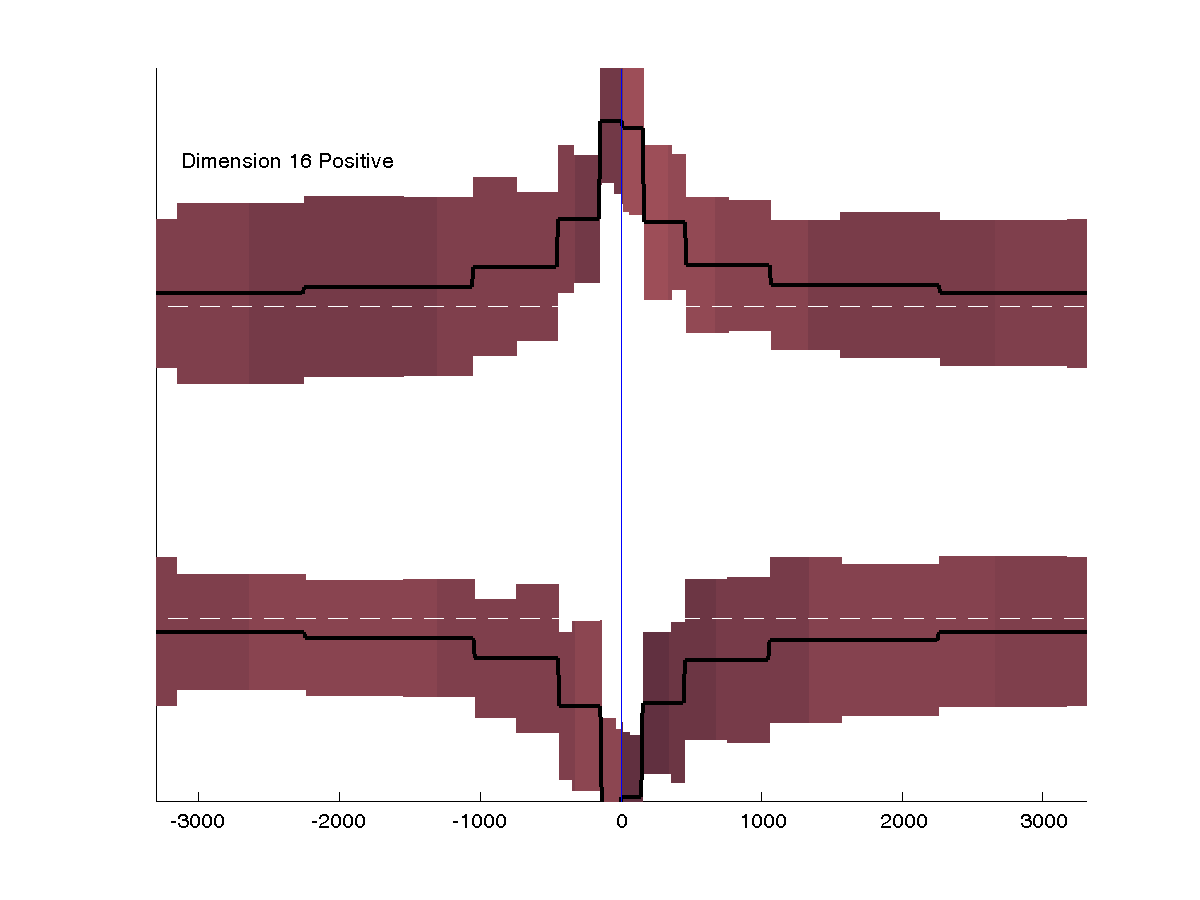

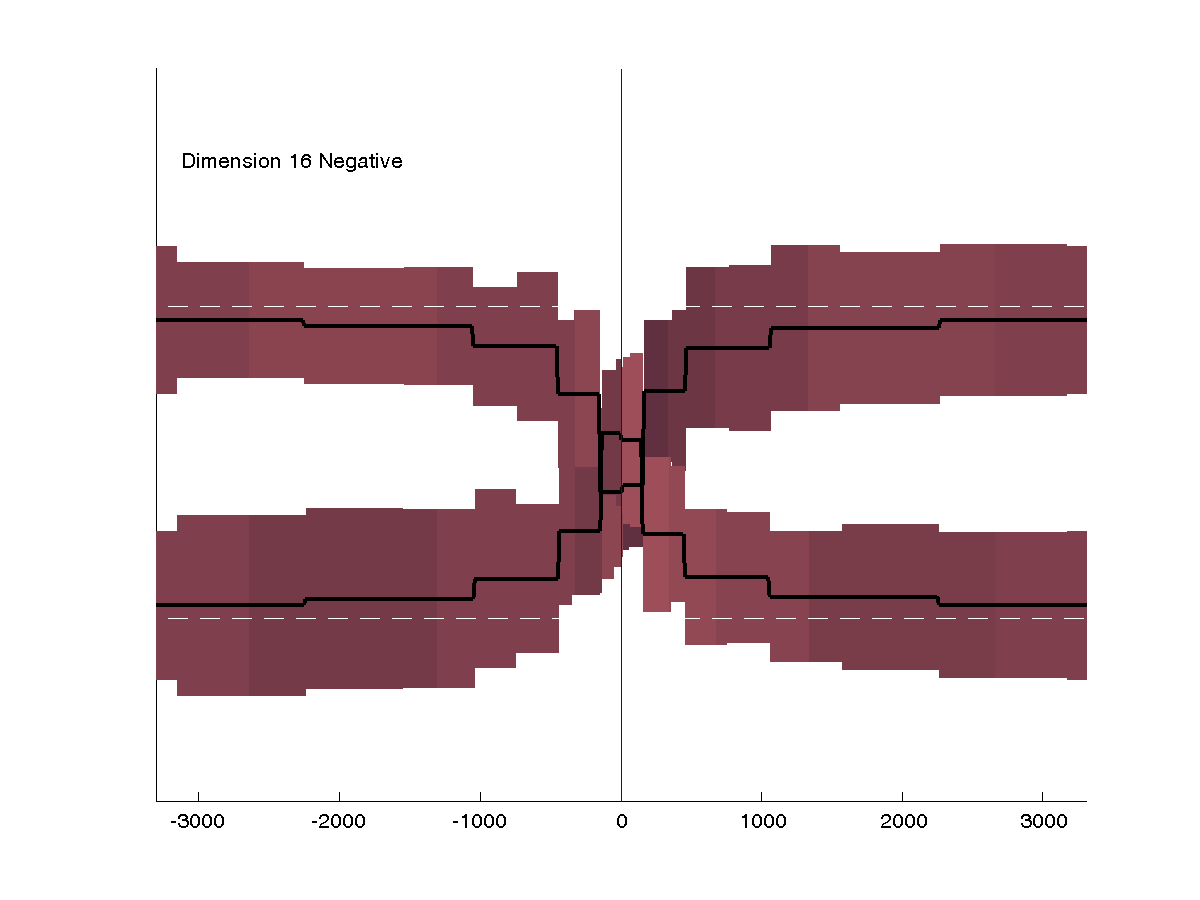

Dimension 16: humorous vs. regrettable

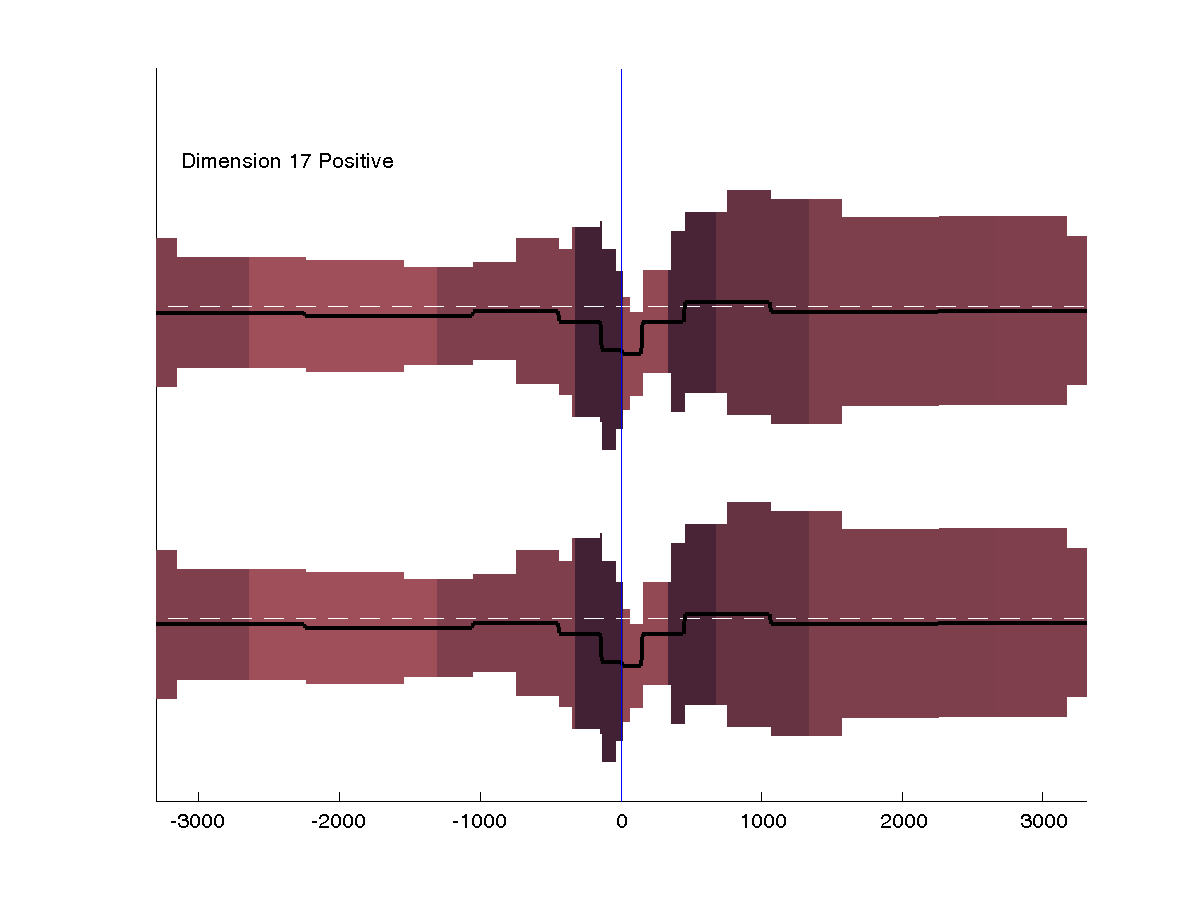

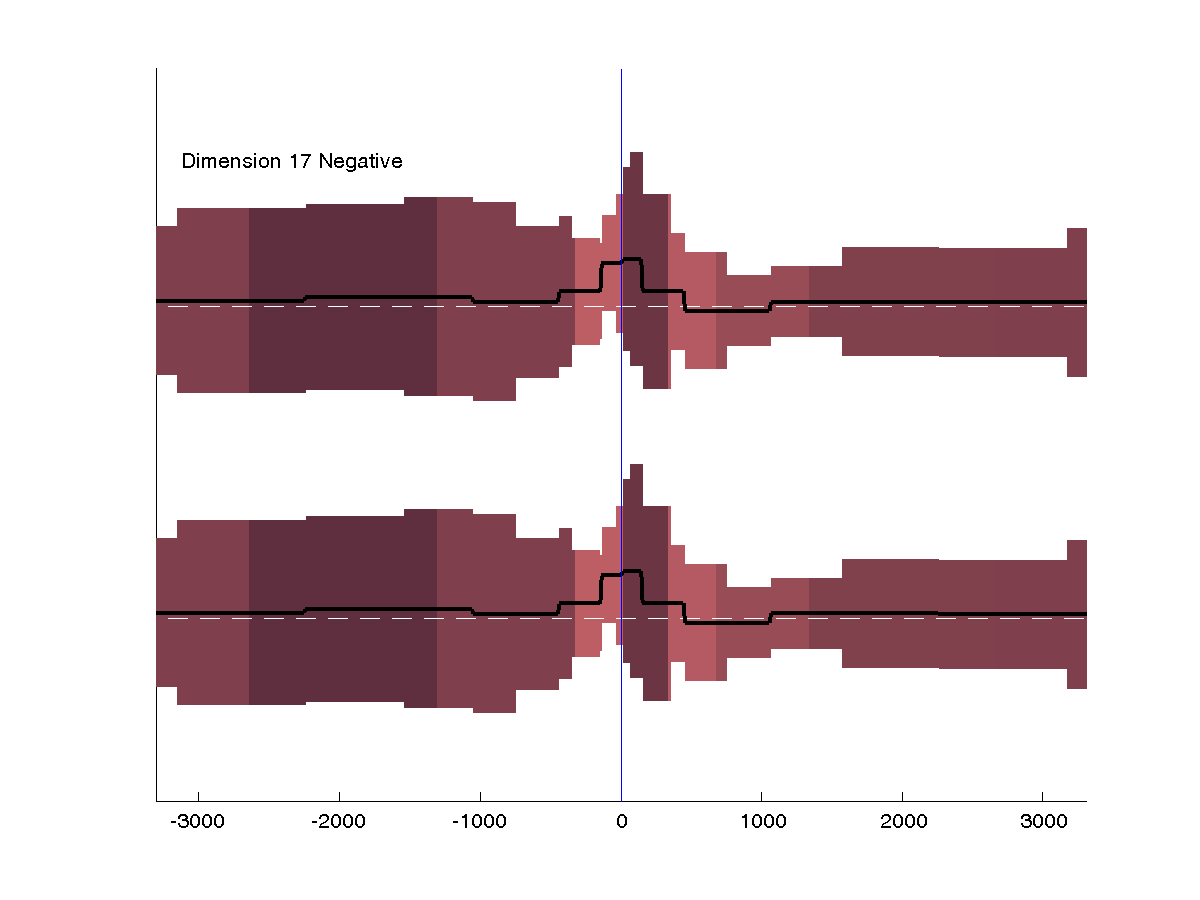

Dimension 17: new perspective vs. elaborating current feeling

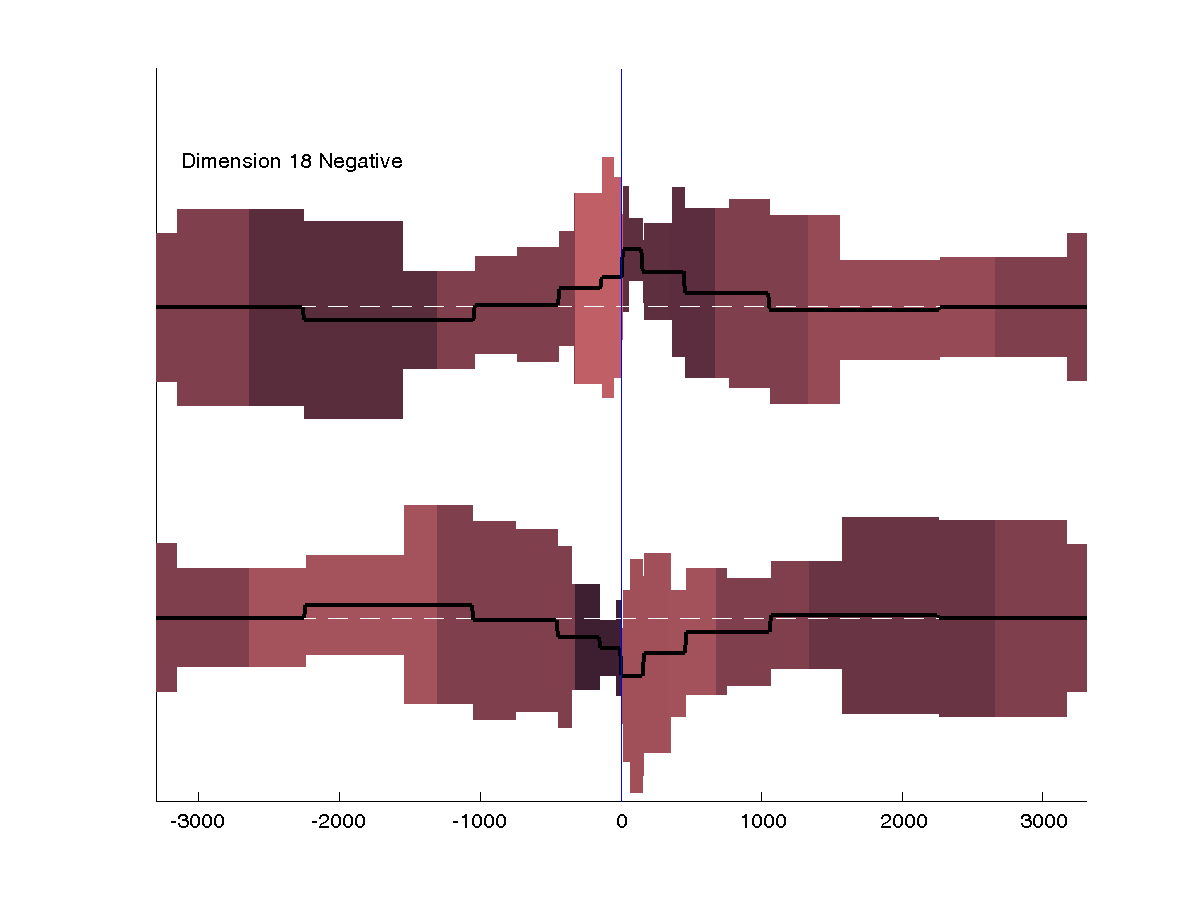

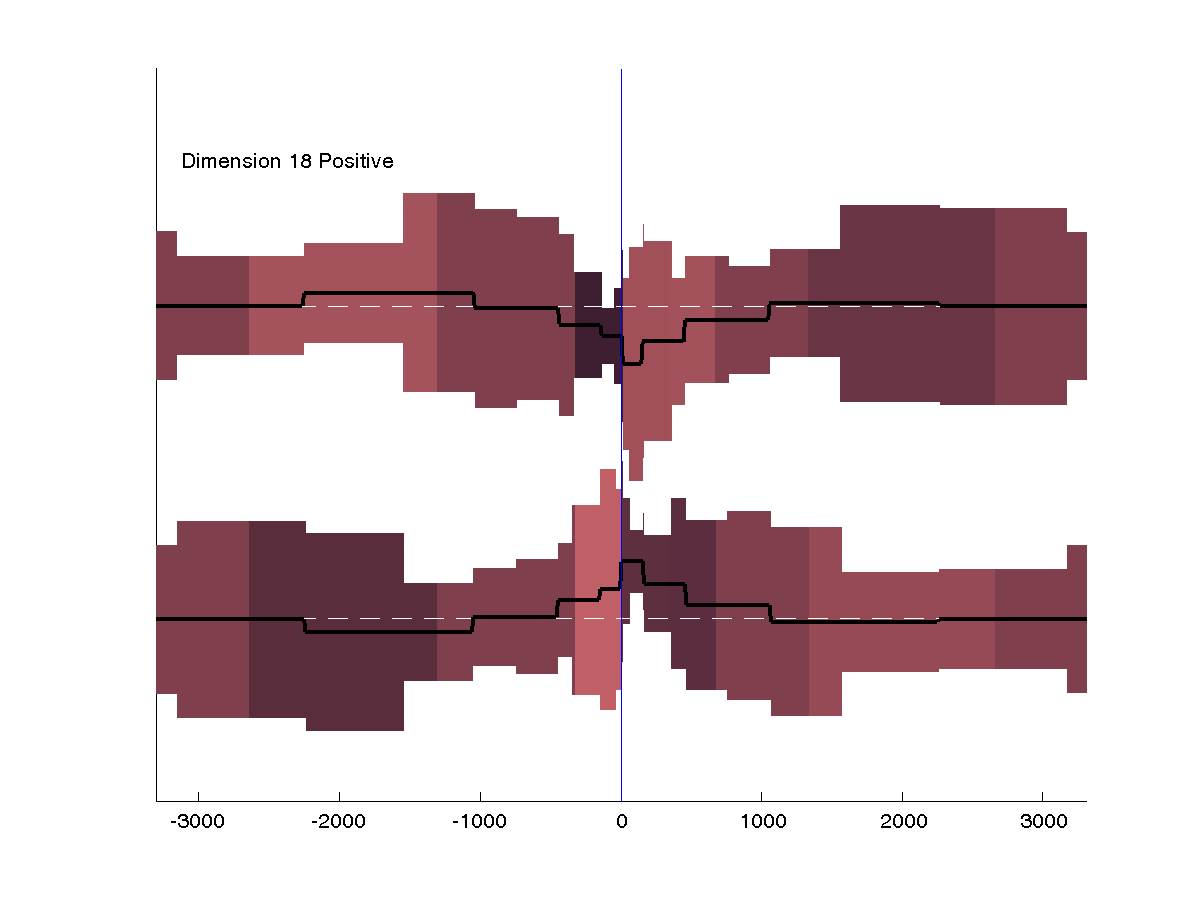

Dimension 18: seeking sympathy vs. expressing sympathy

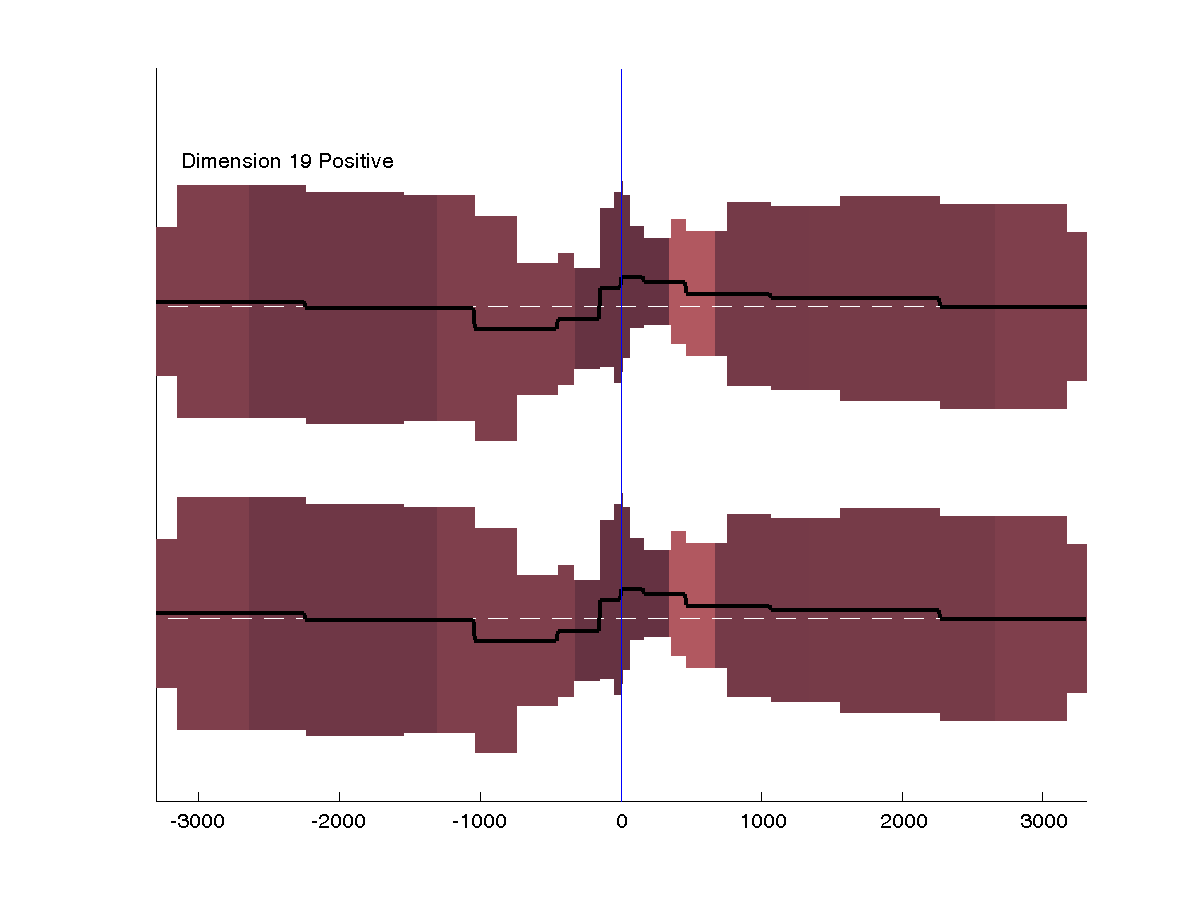

Dimension 19: solicitous vs. controlling

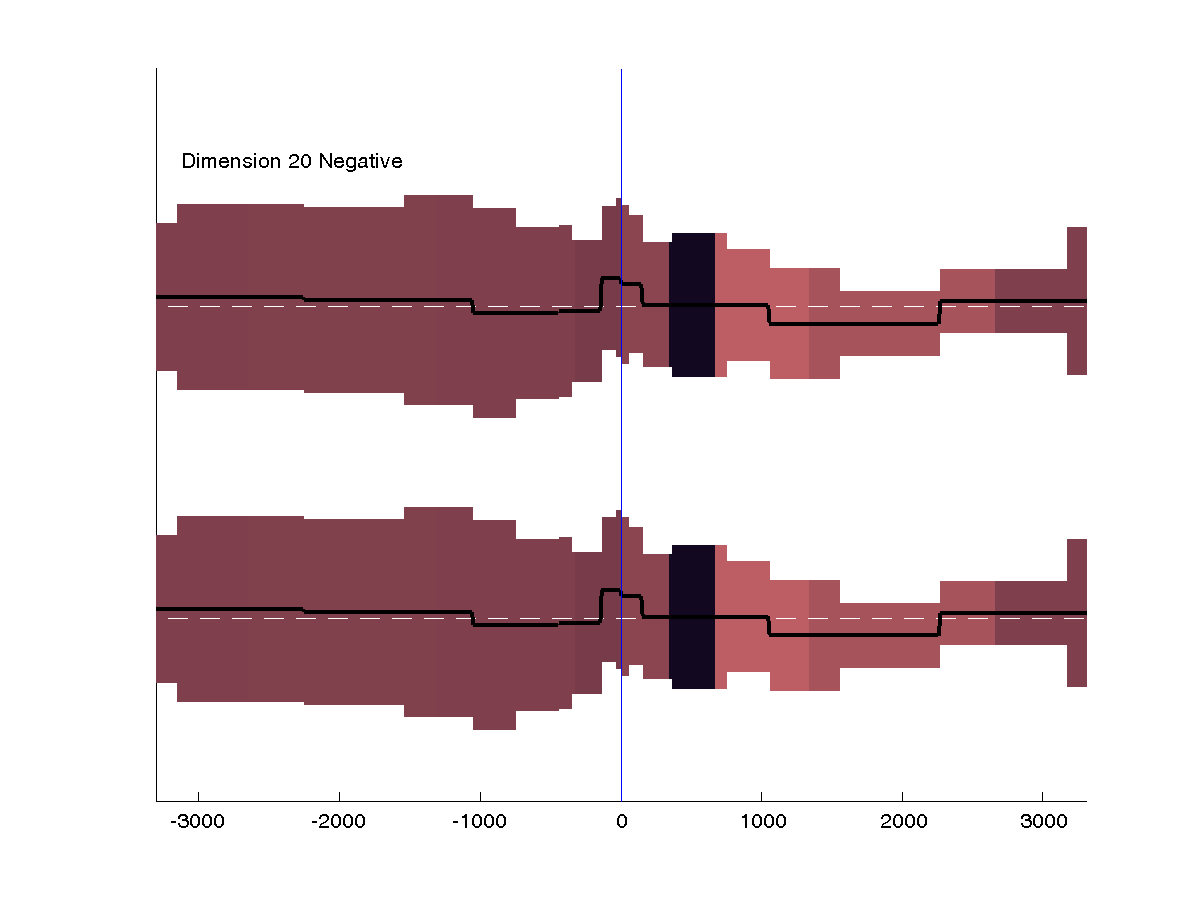

Dimension 20: calm emphasis vs. provocativeness

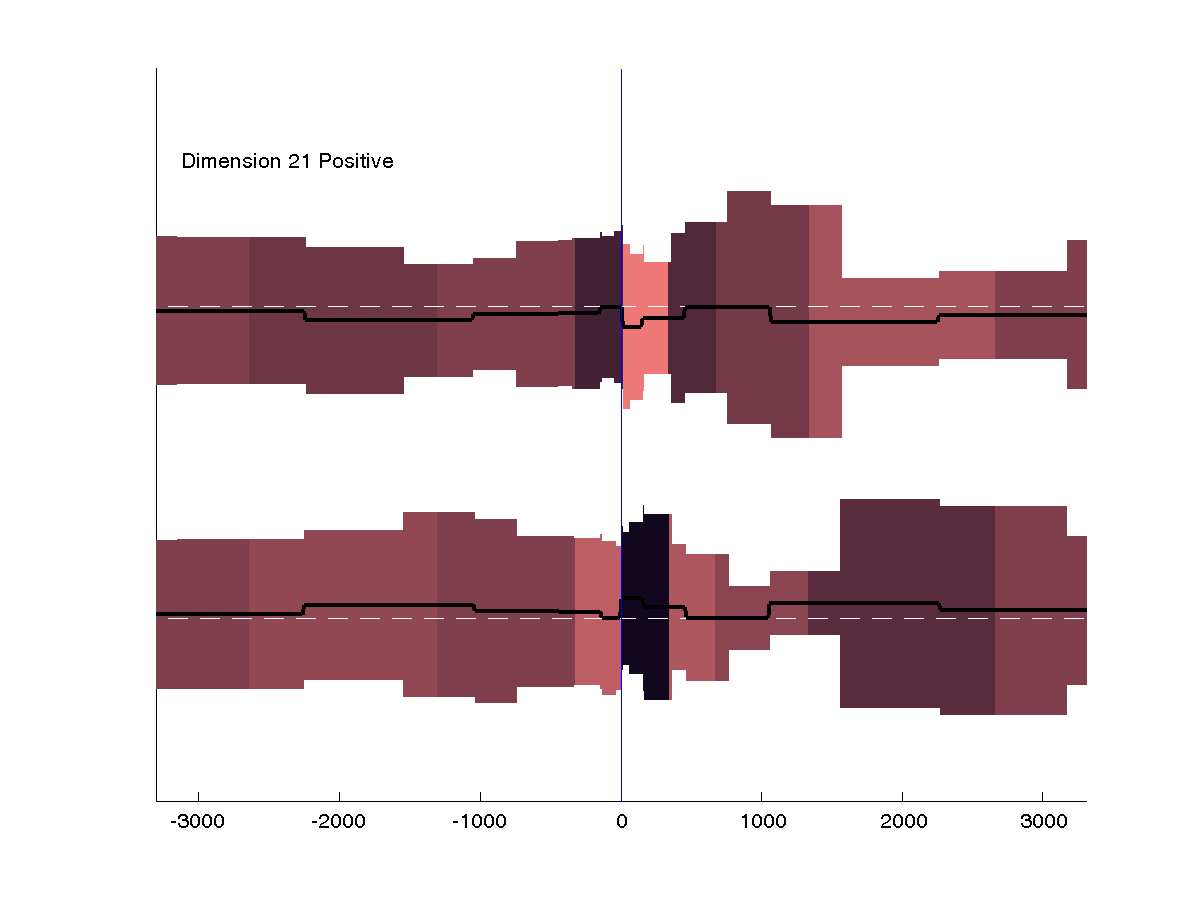

Dimension 21:

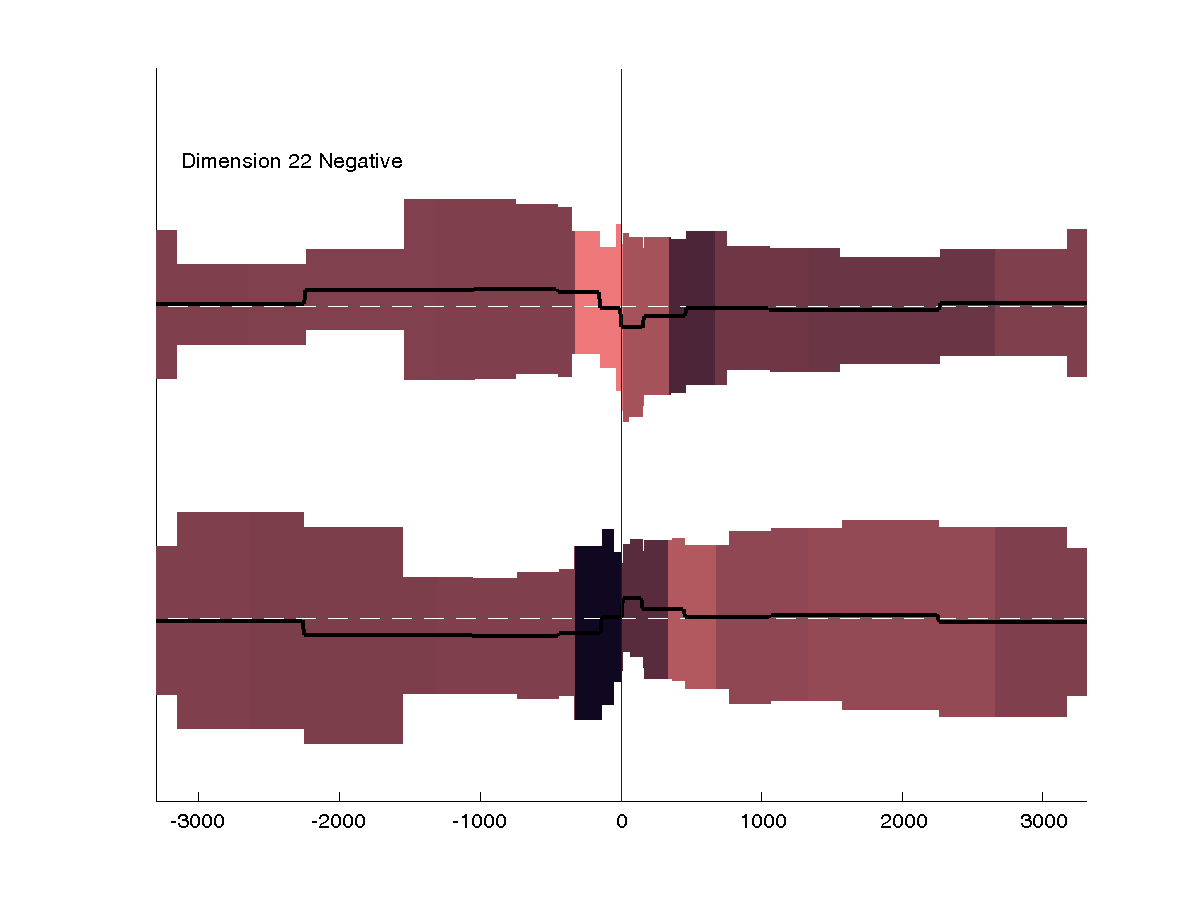

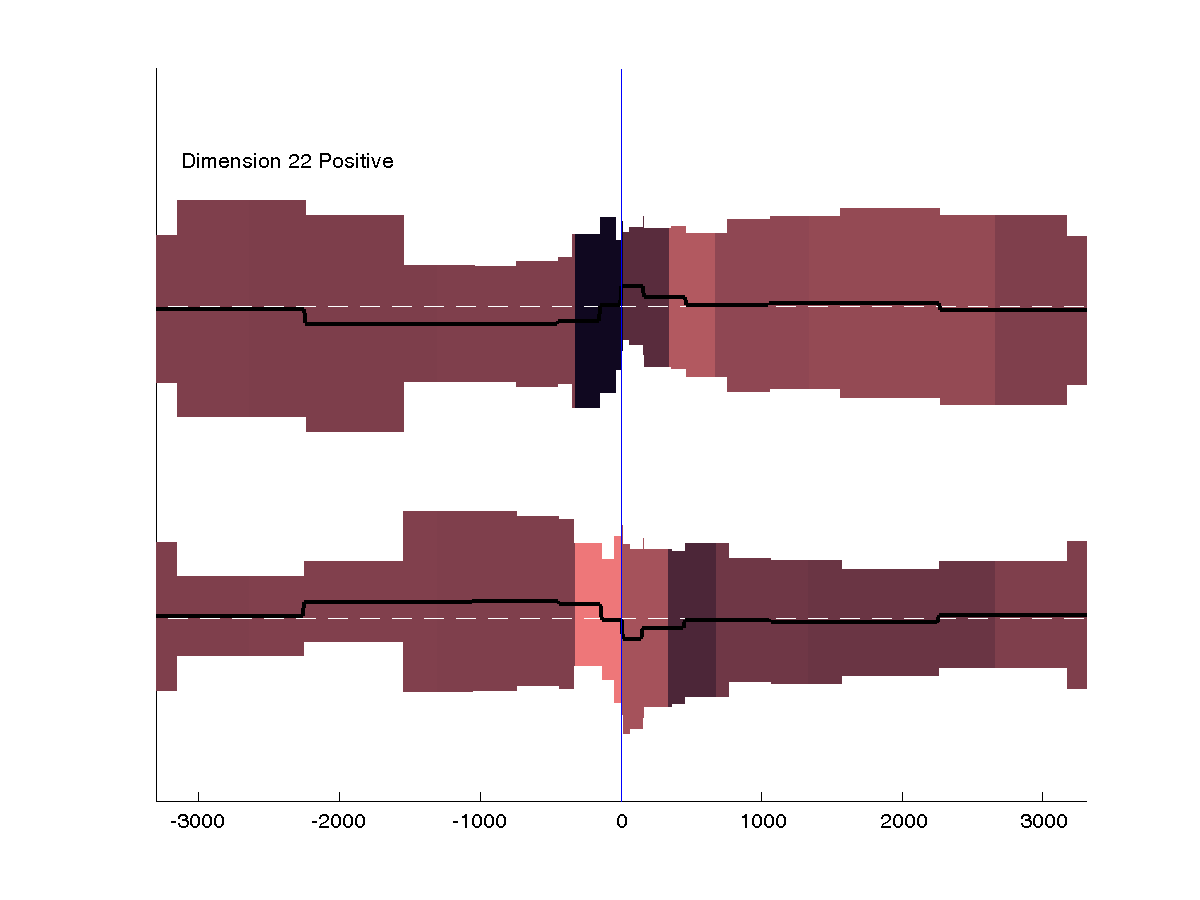

Dimension 22

Dimension 23

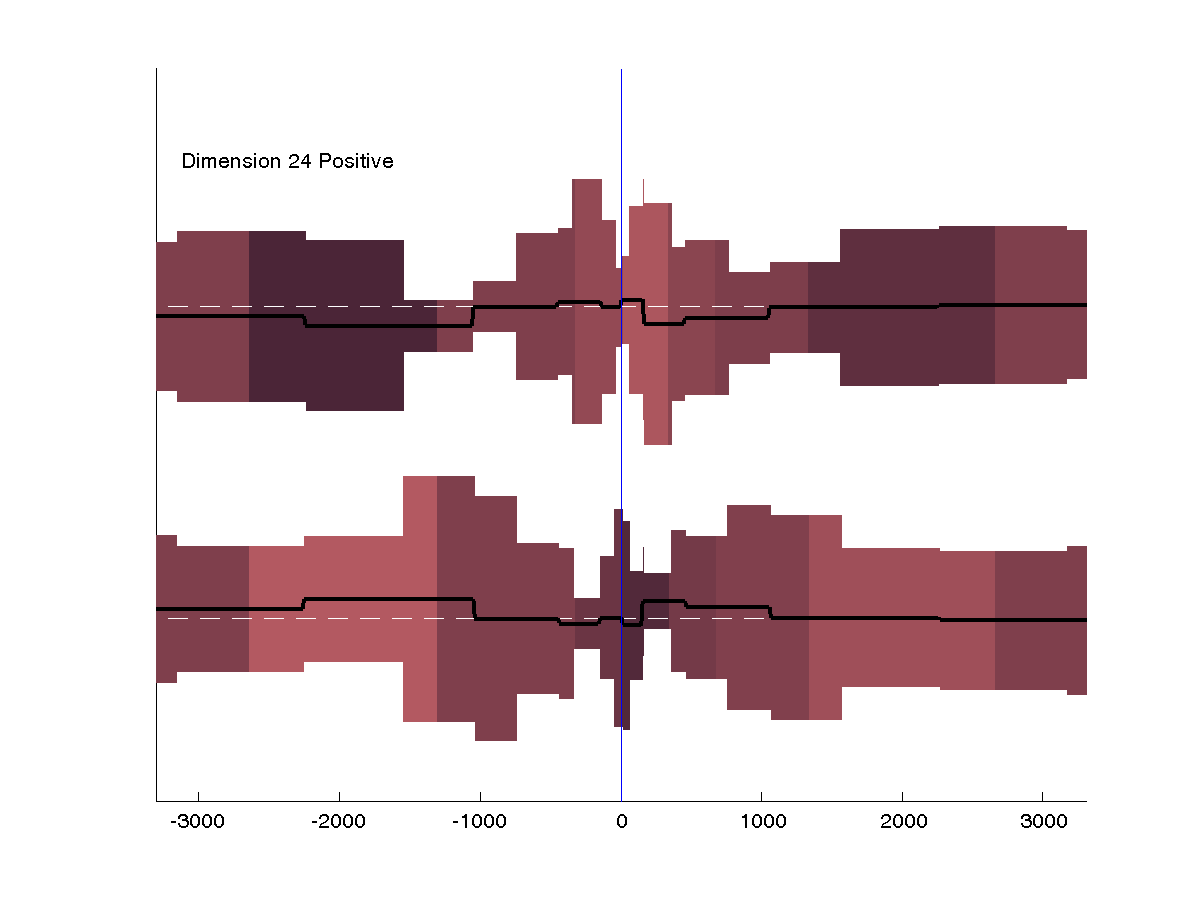

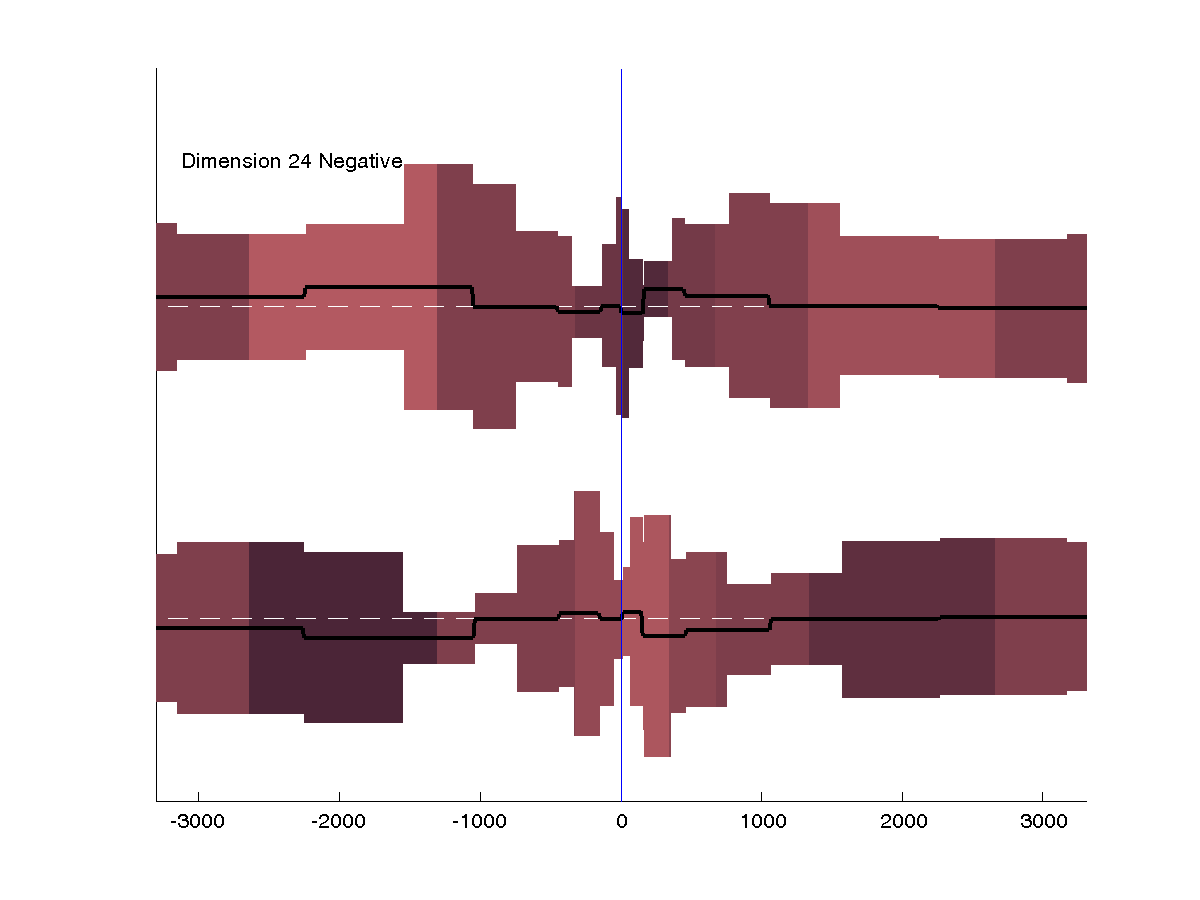

Dimension 24

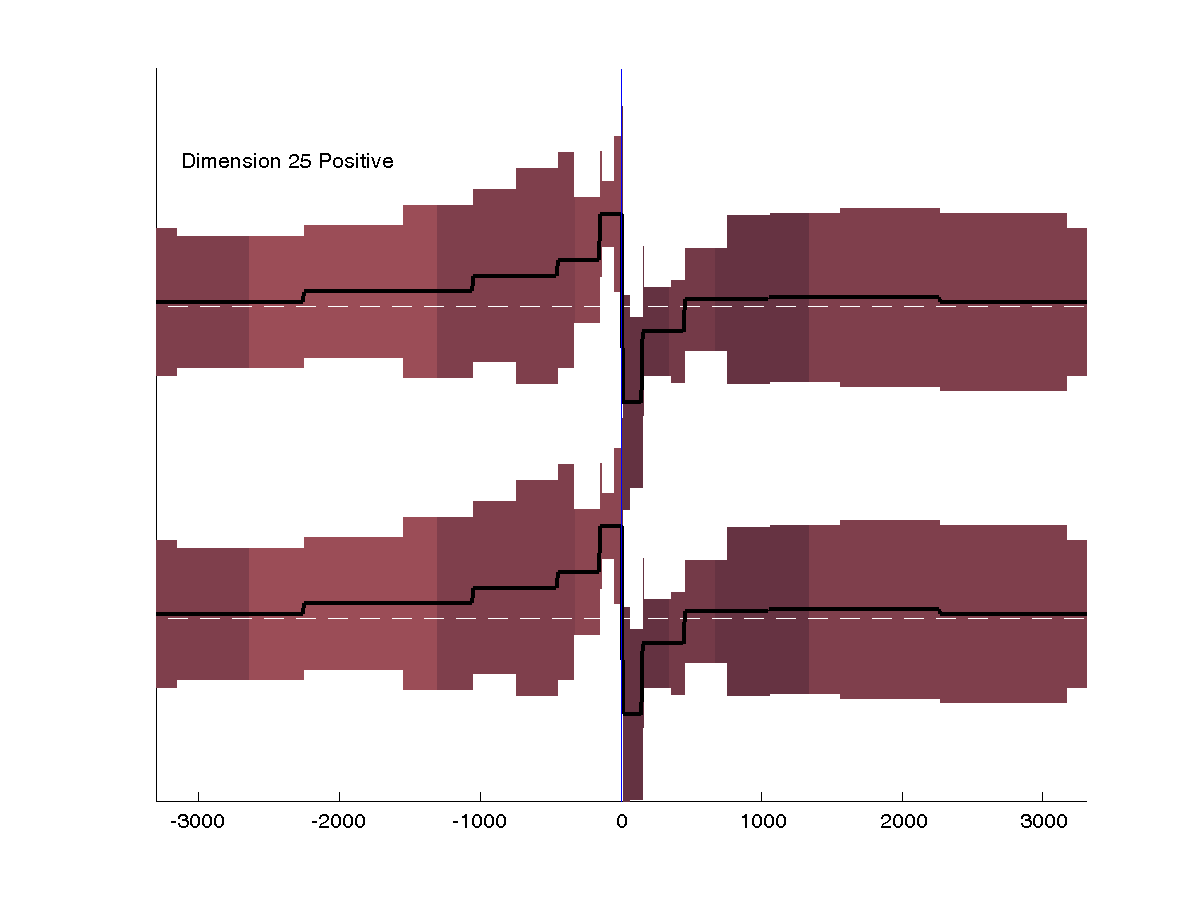

Dimension 25

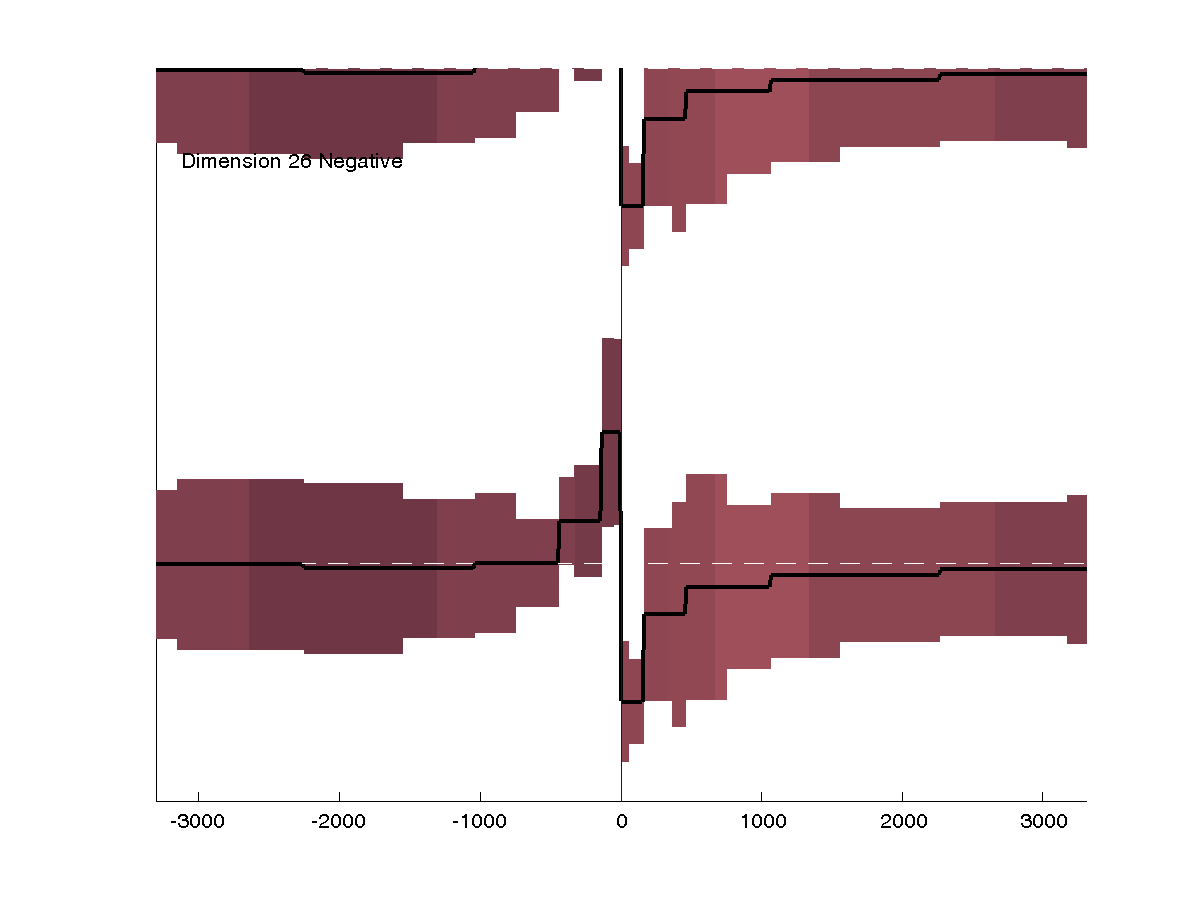

Dimension 26

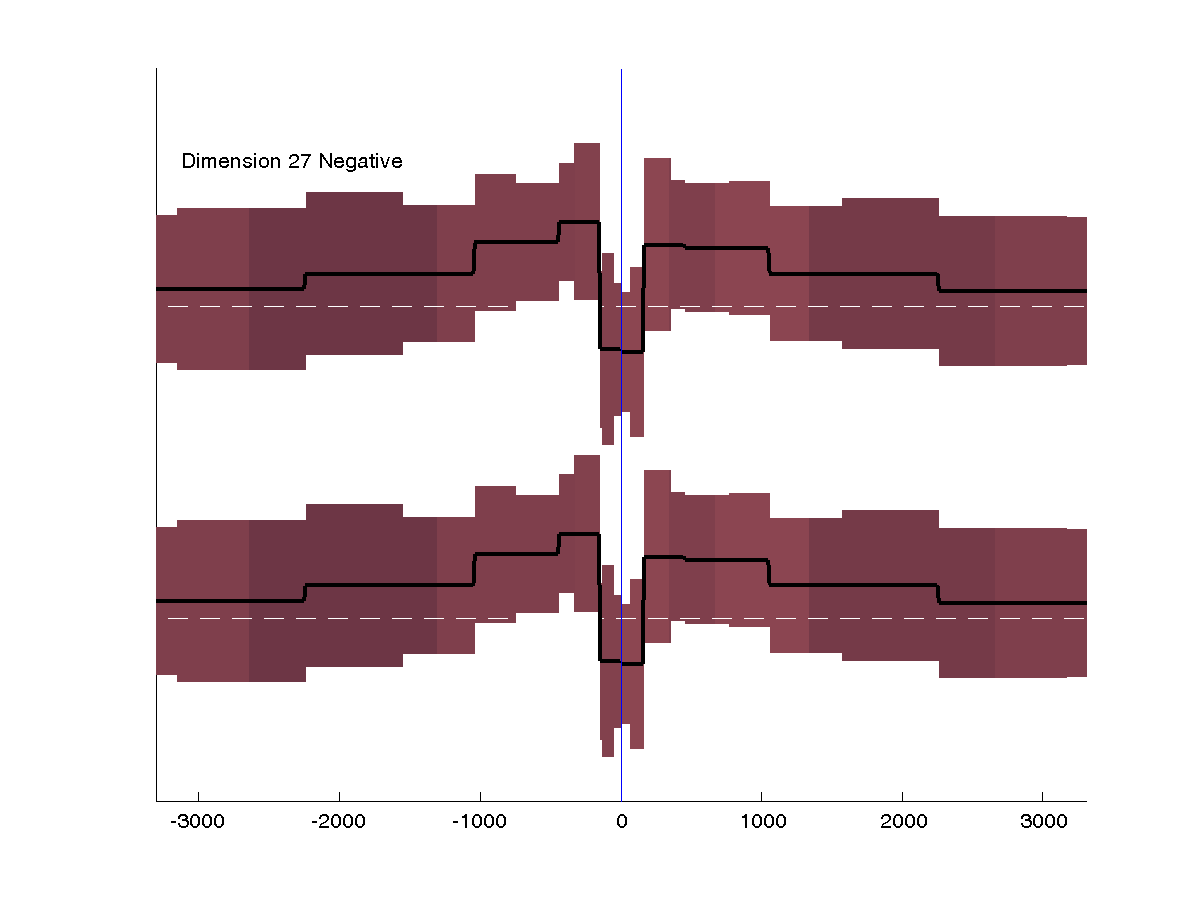

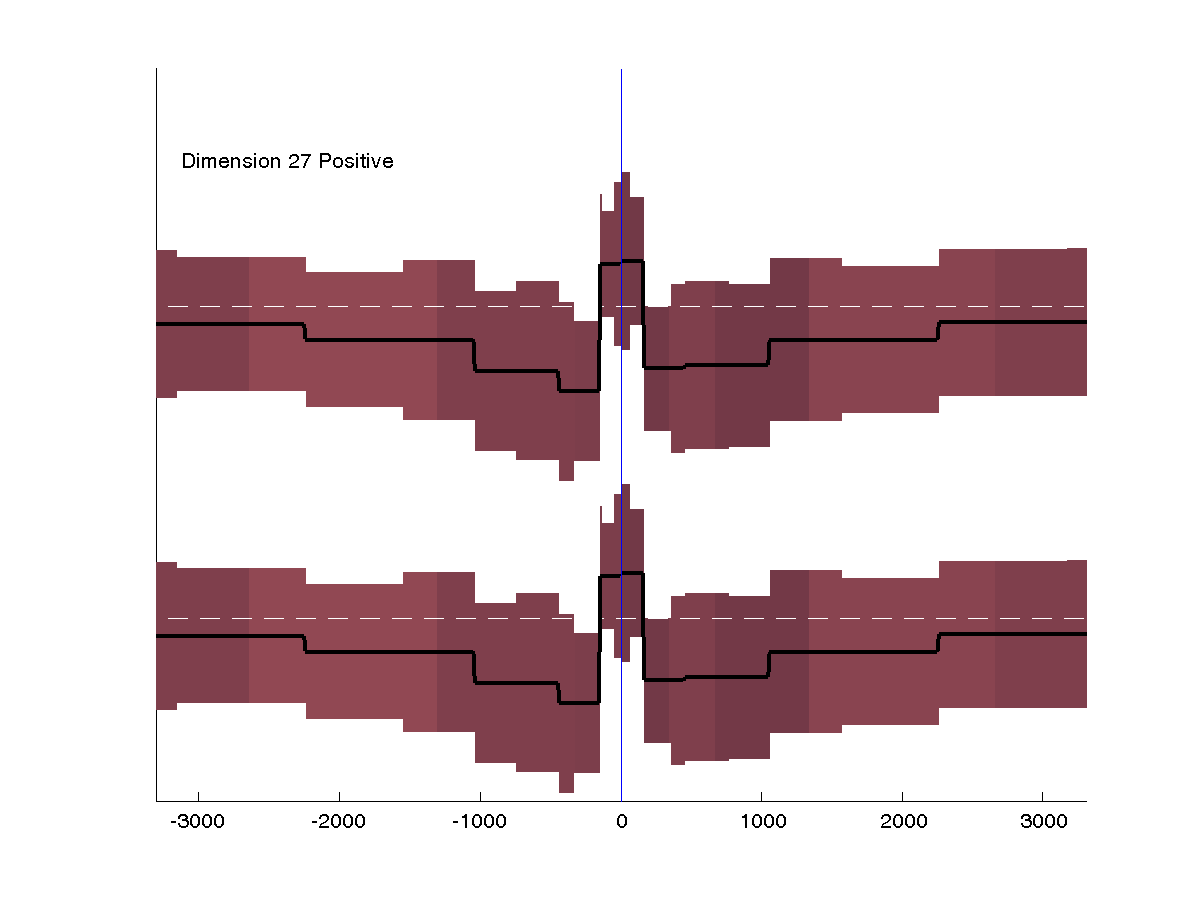

Dimension 27

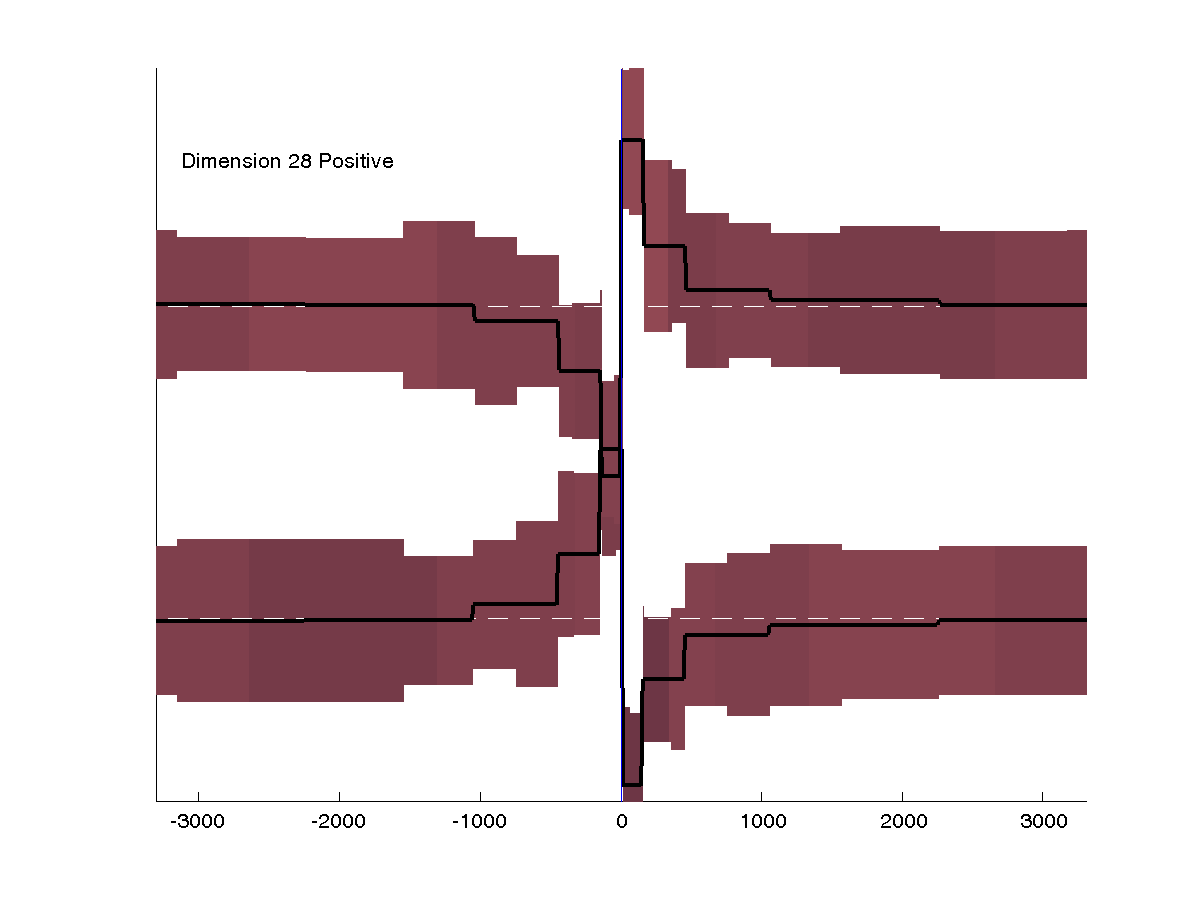

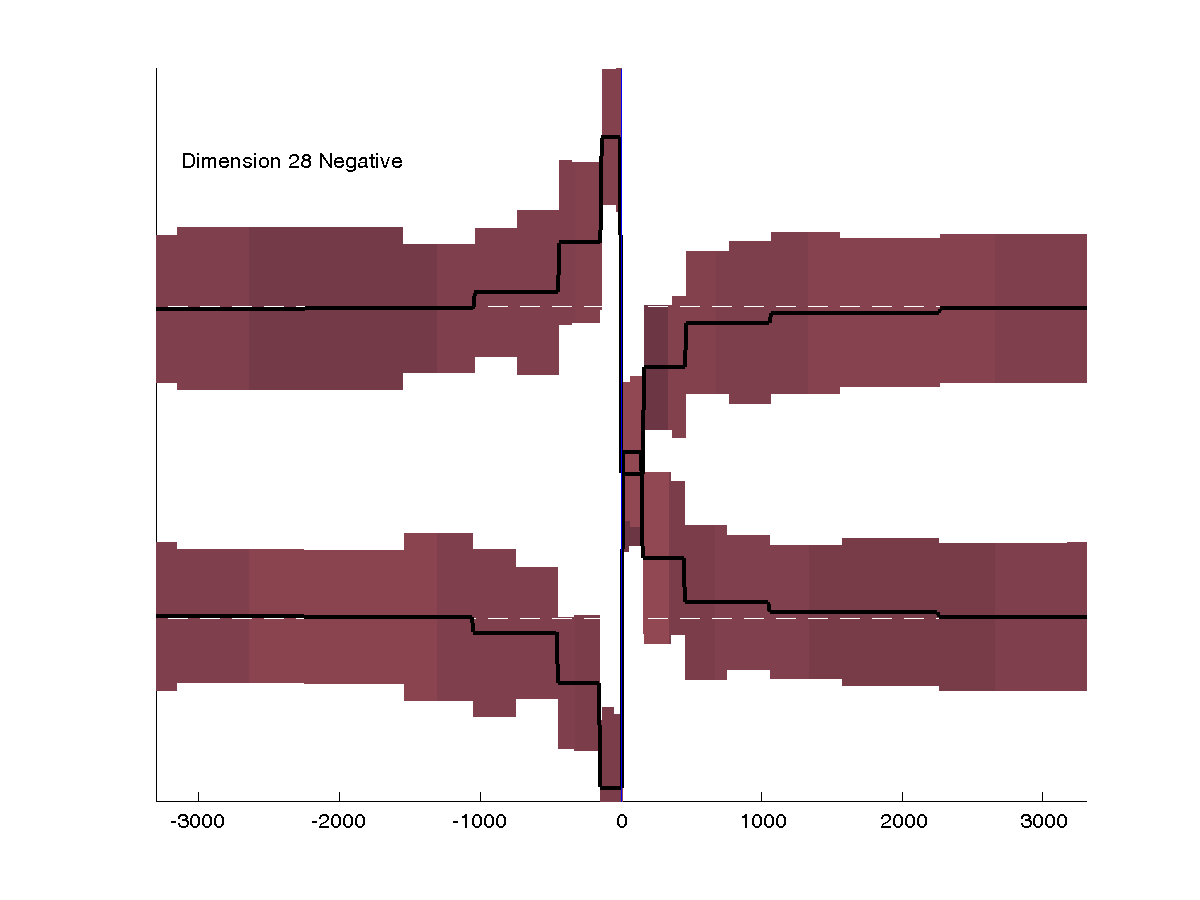

Dimension 28

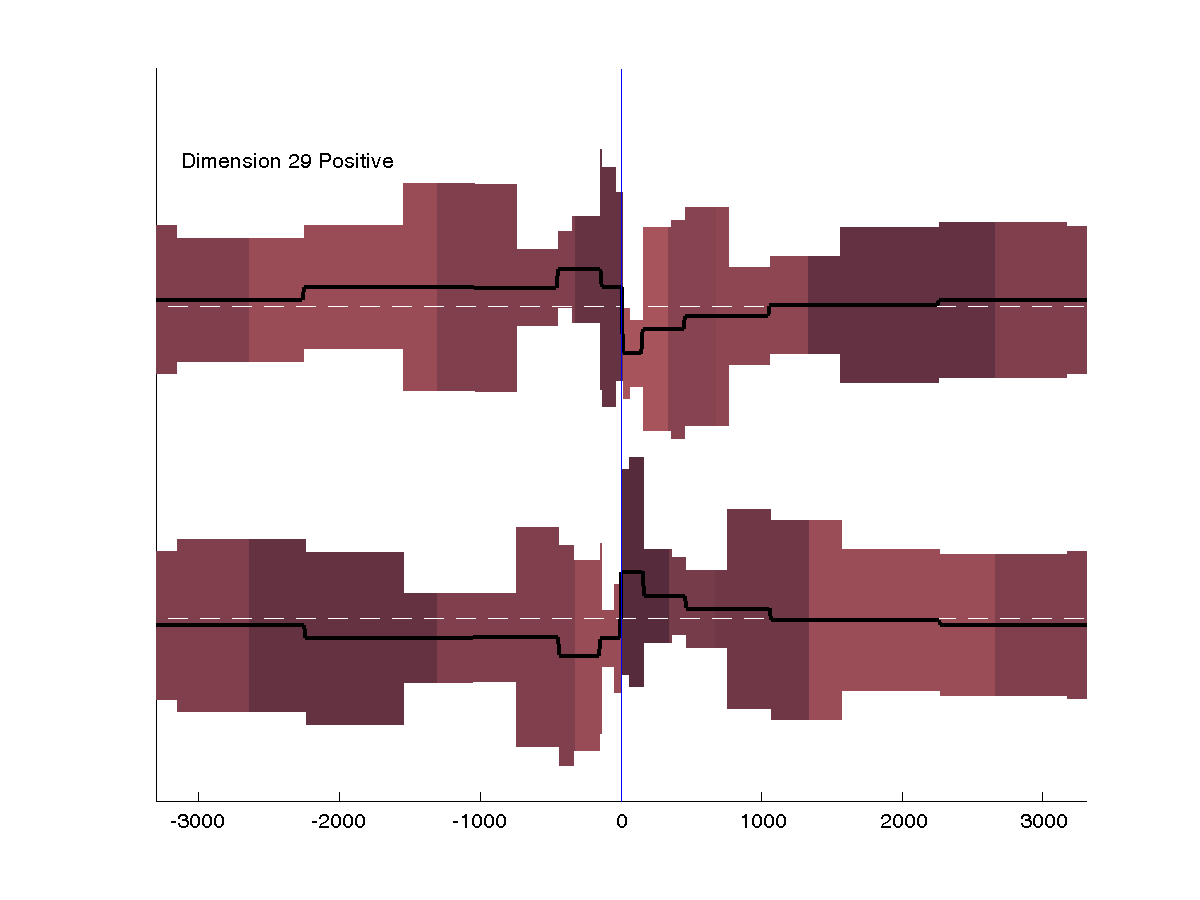

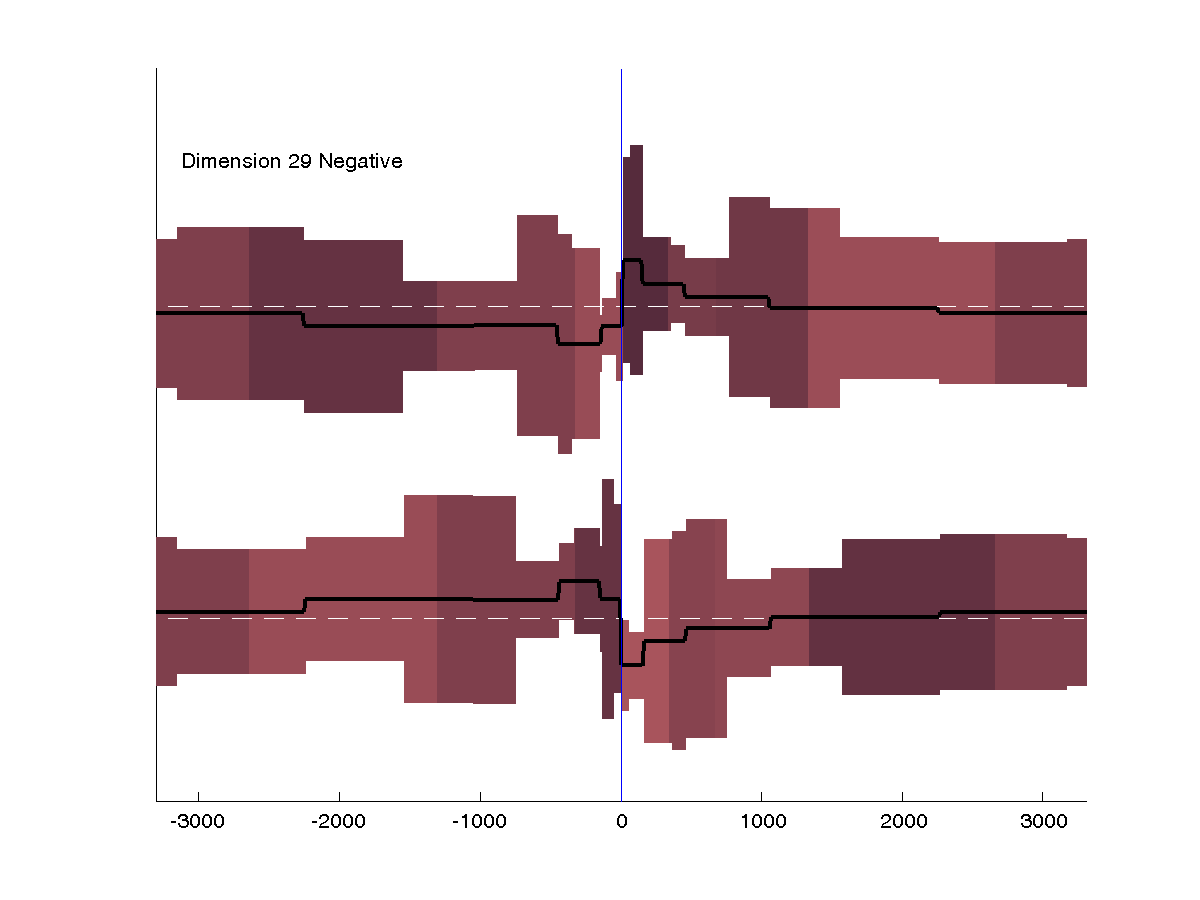

Dimension 29

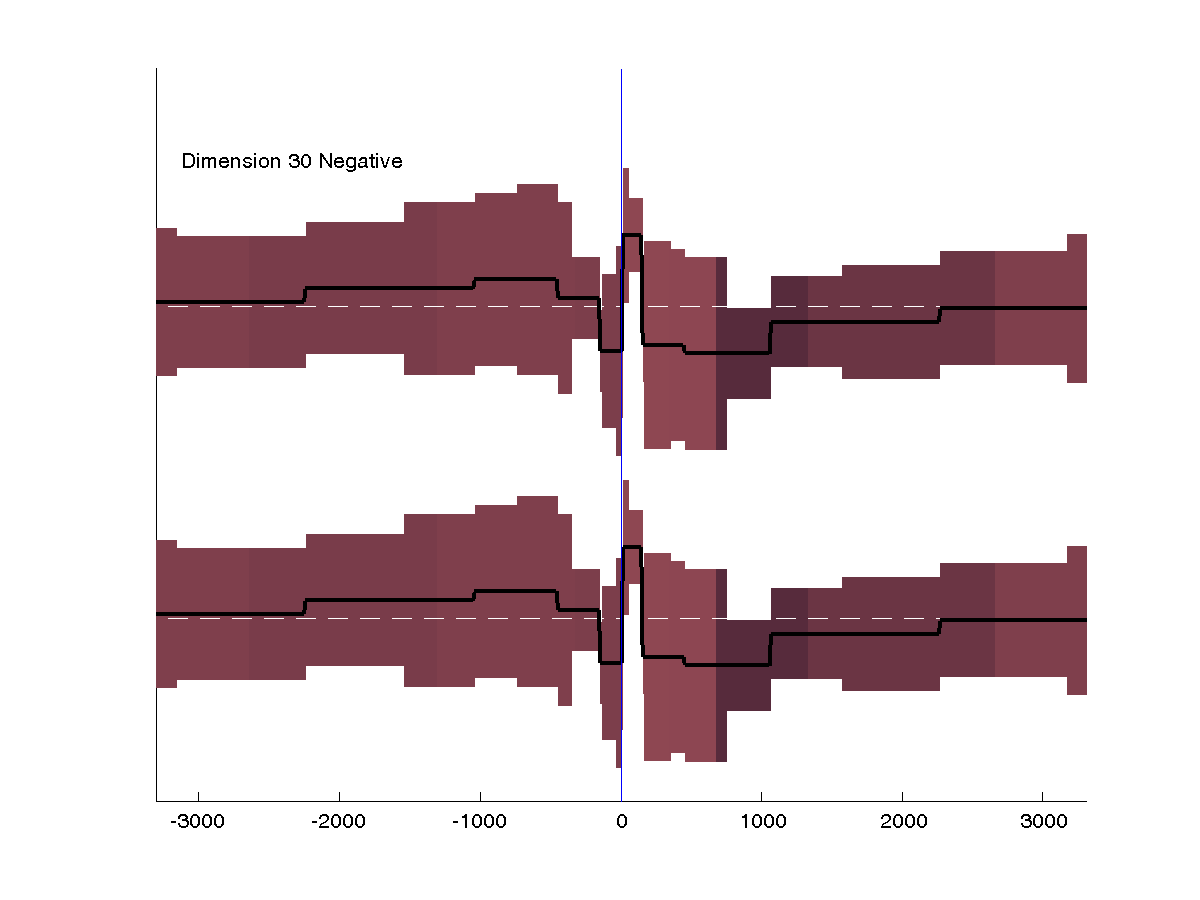

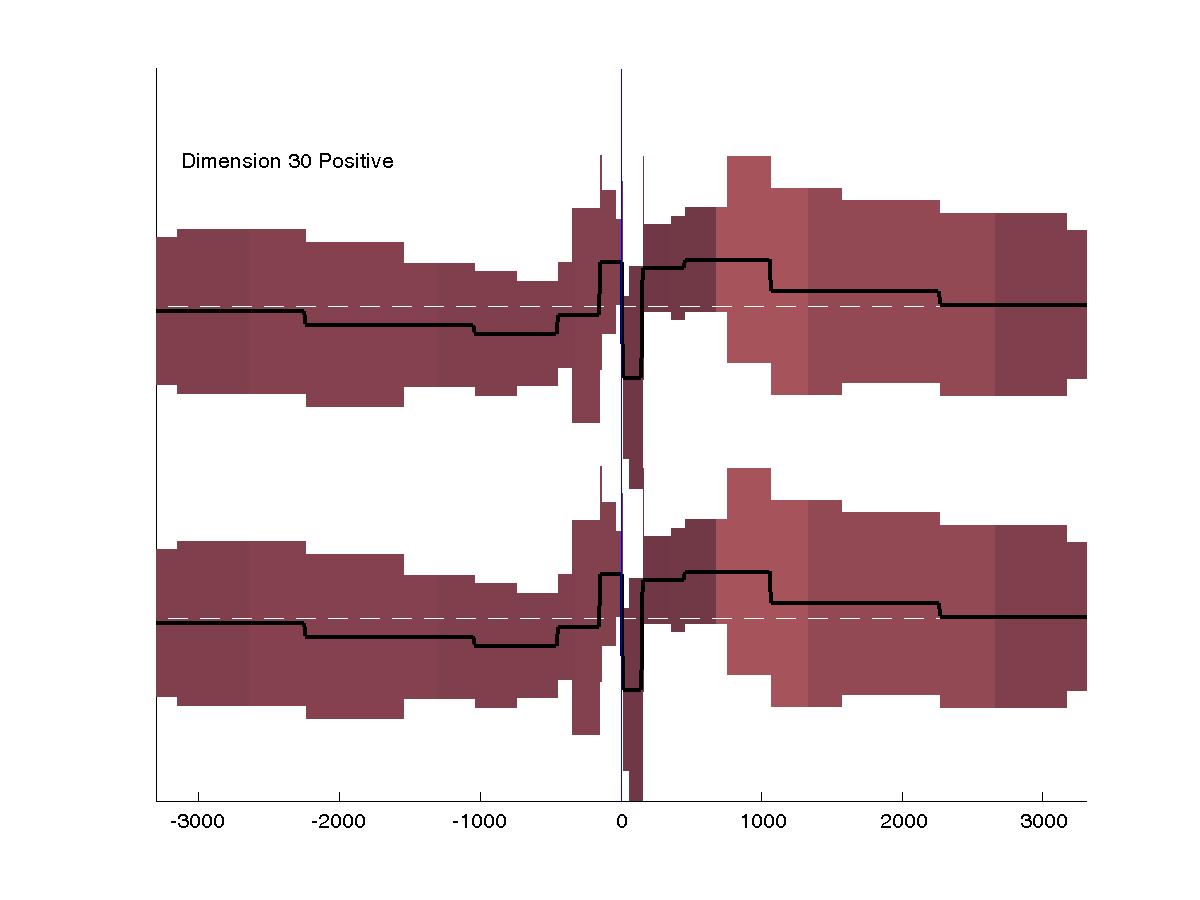

Dimension 30

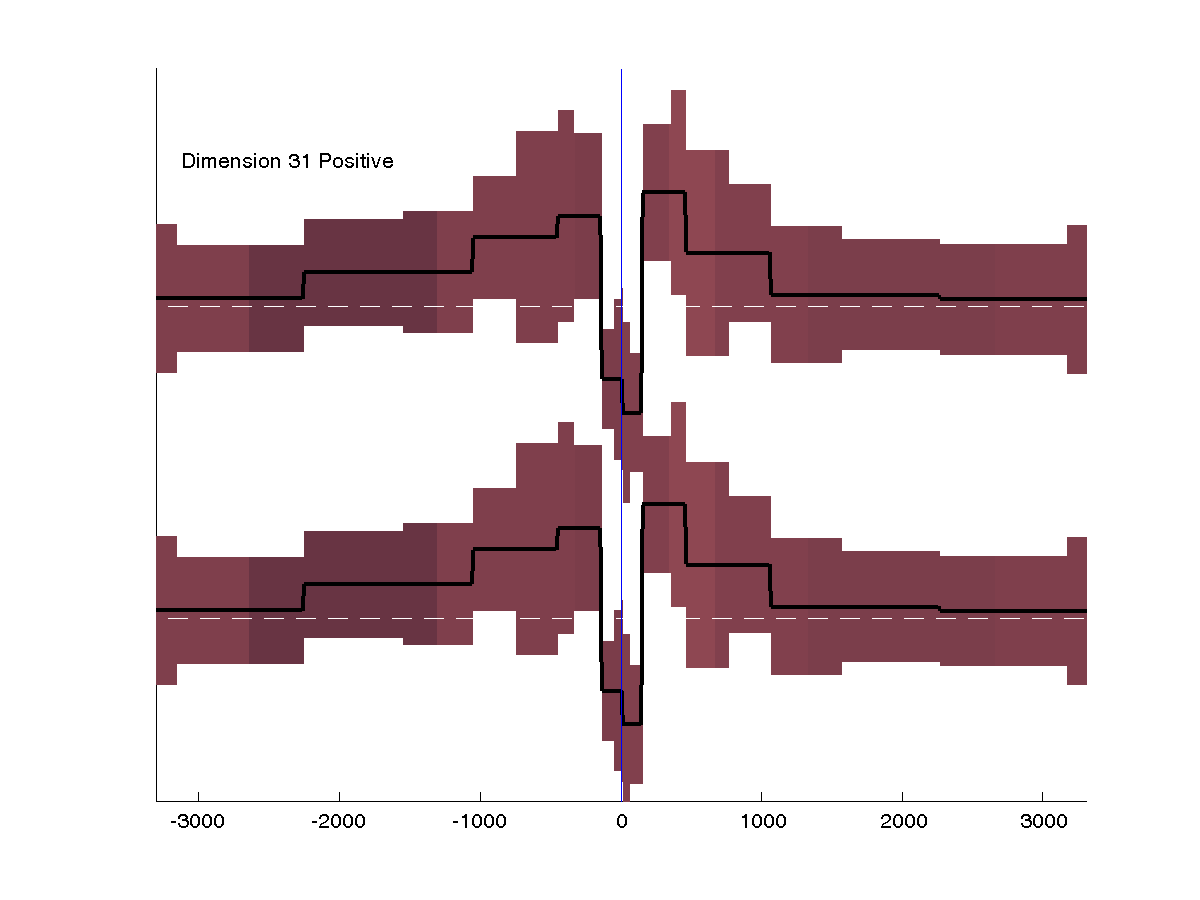

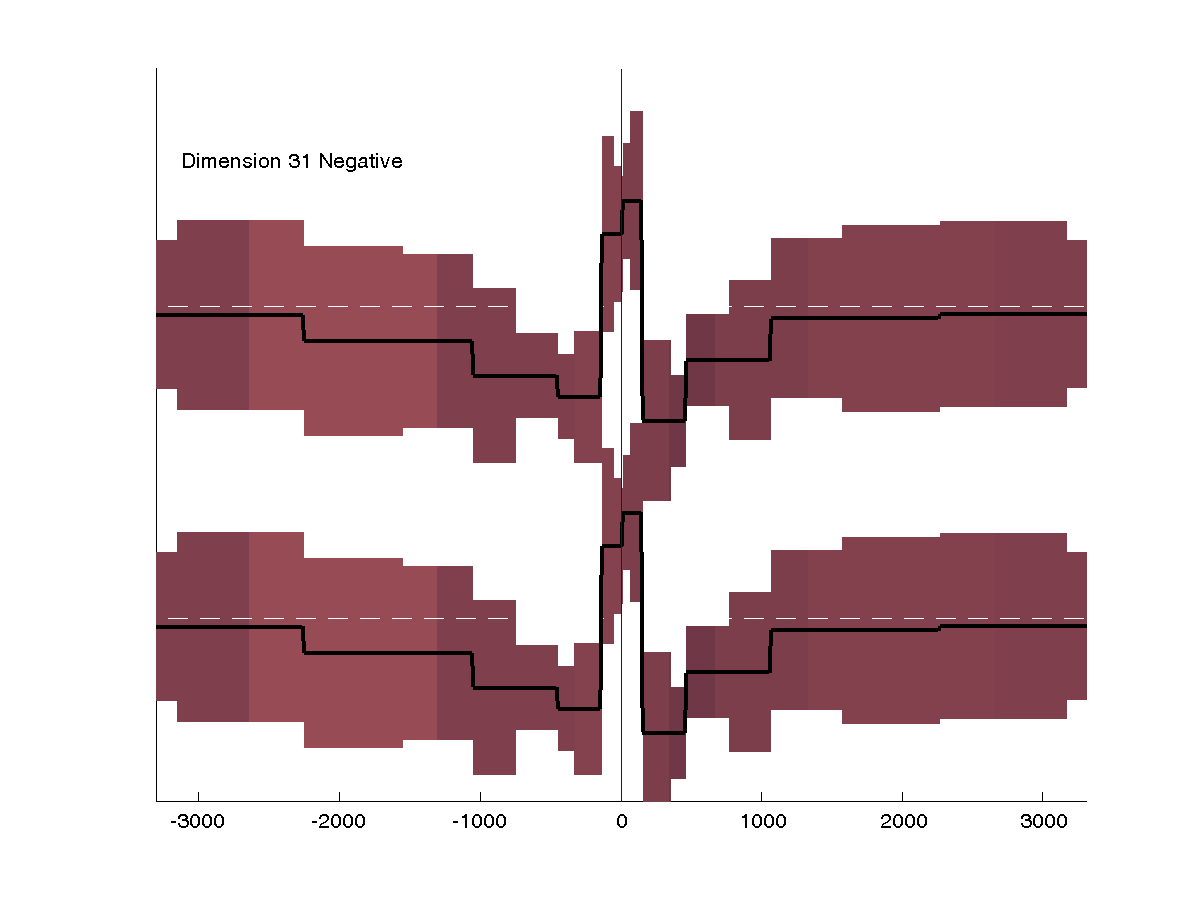

Dimension 31

Dimension 32

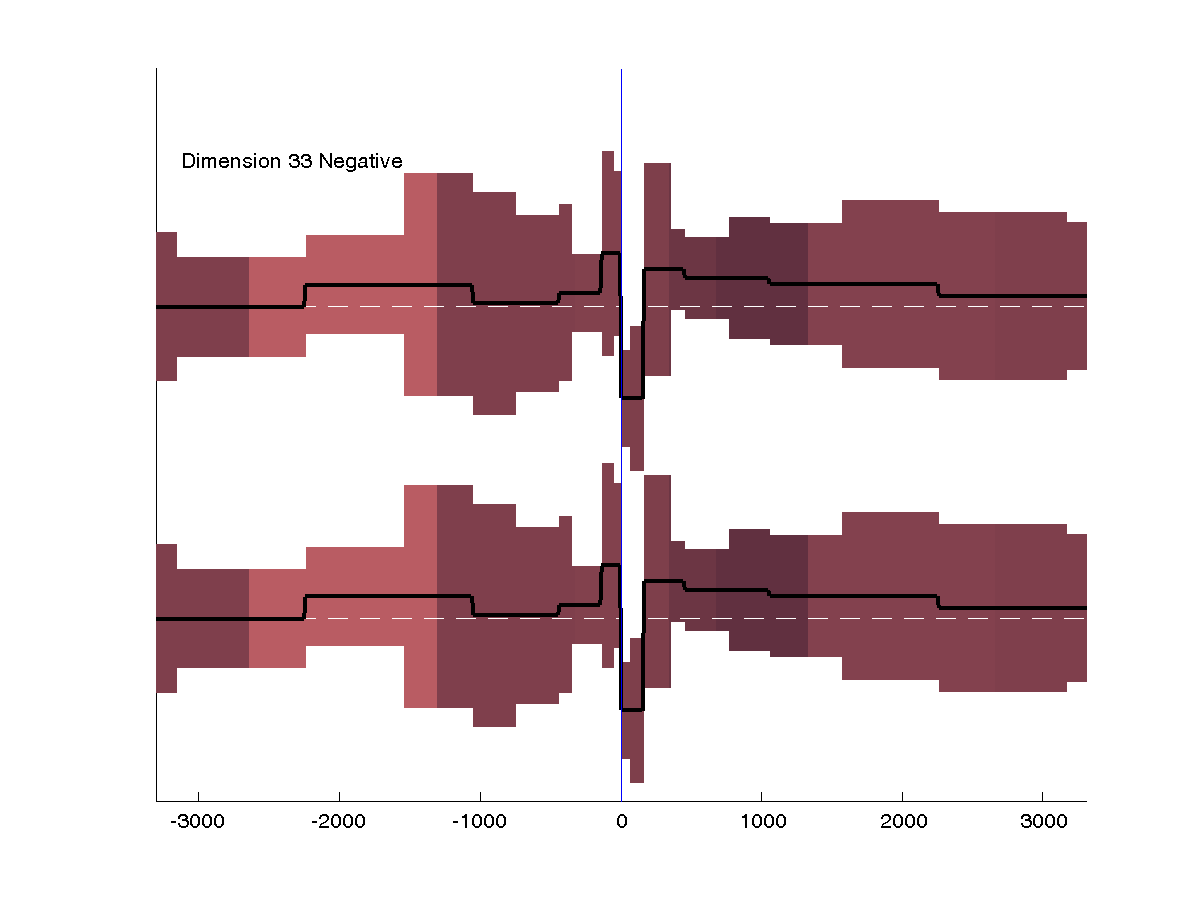

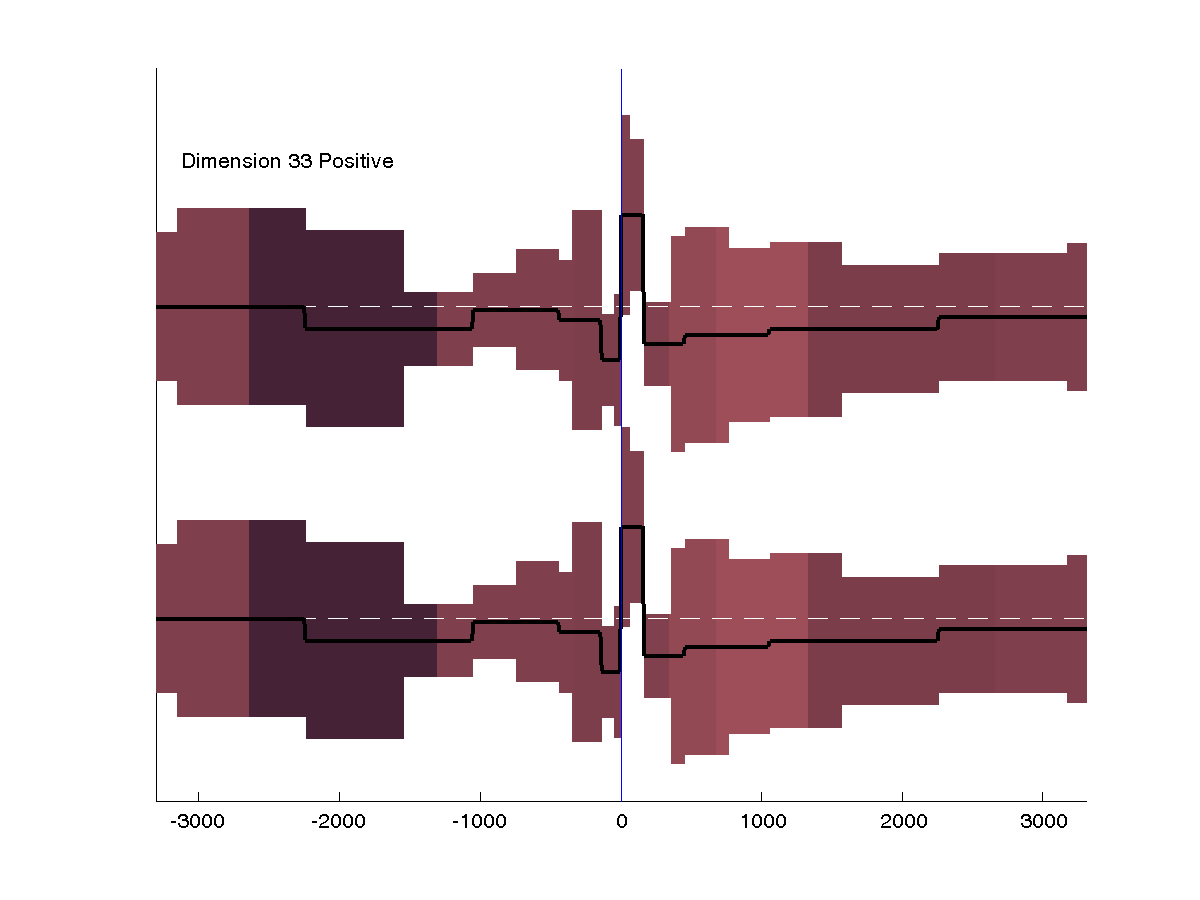

Dimension 33

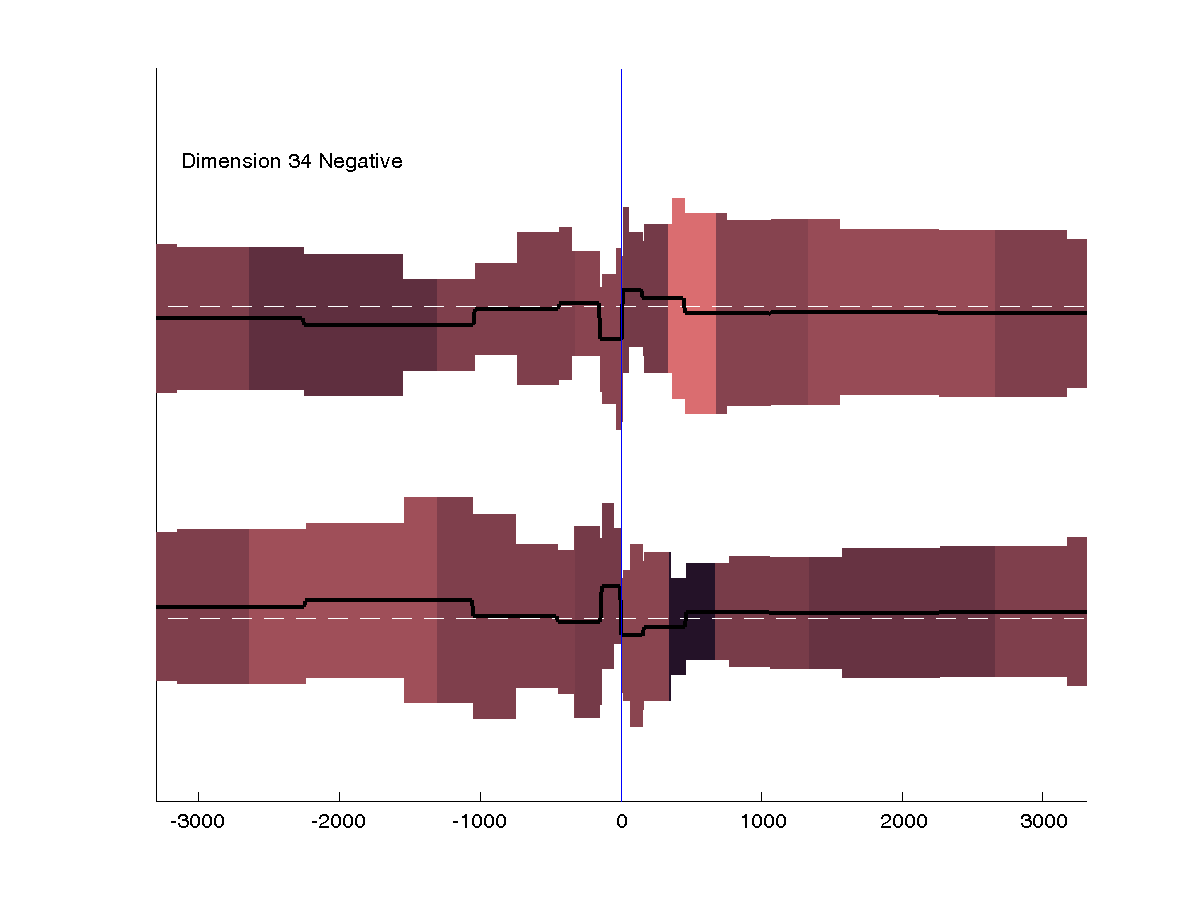

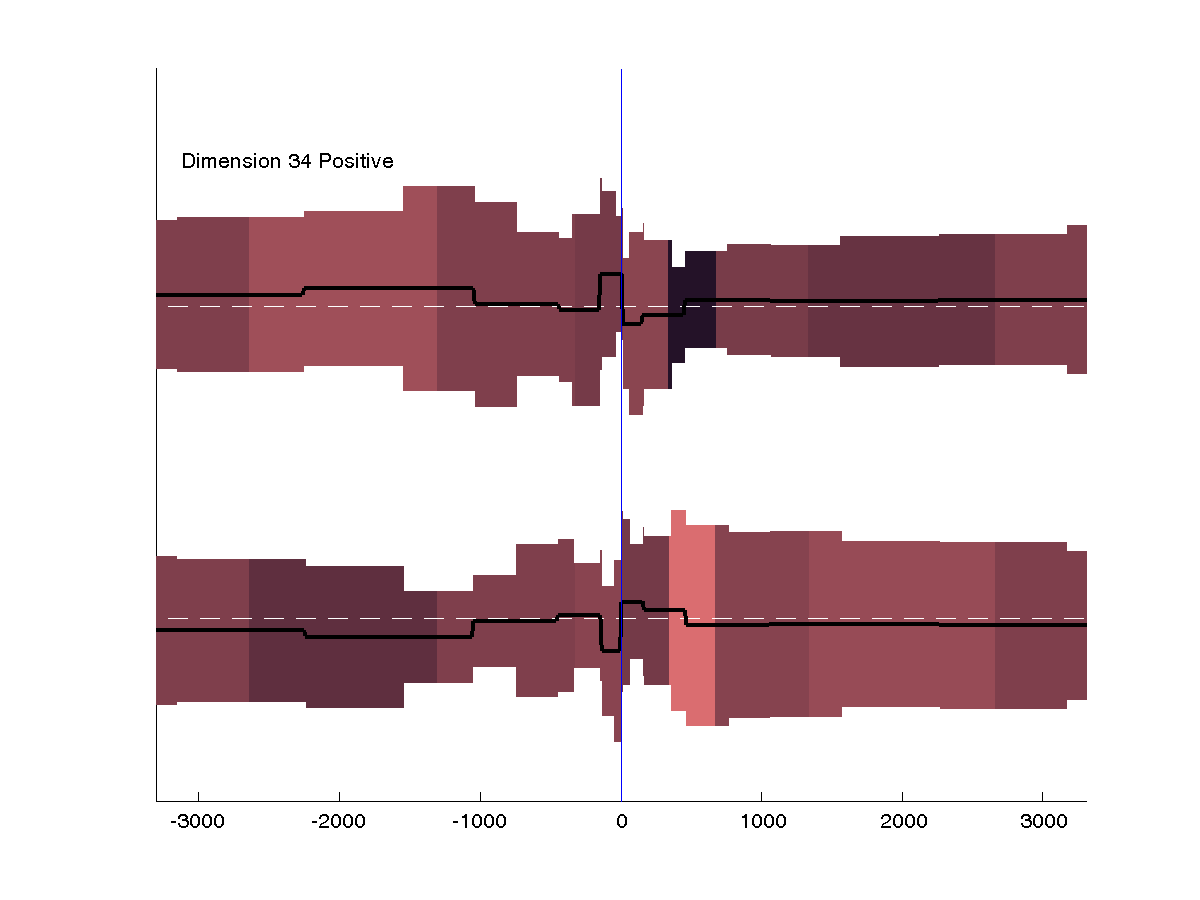

Dimension 34

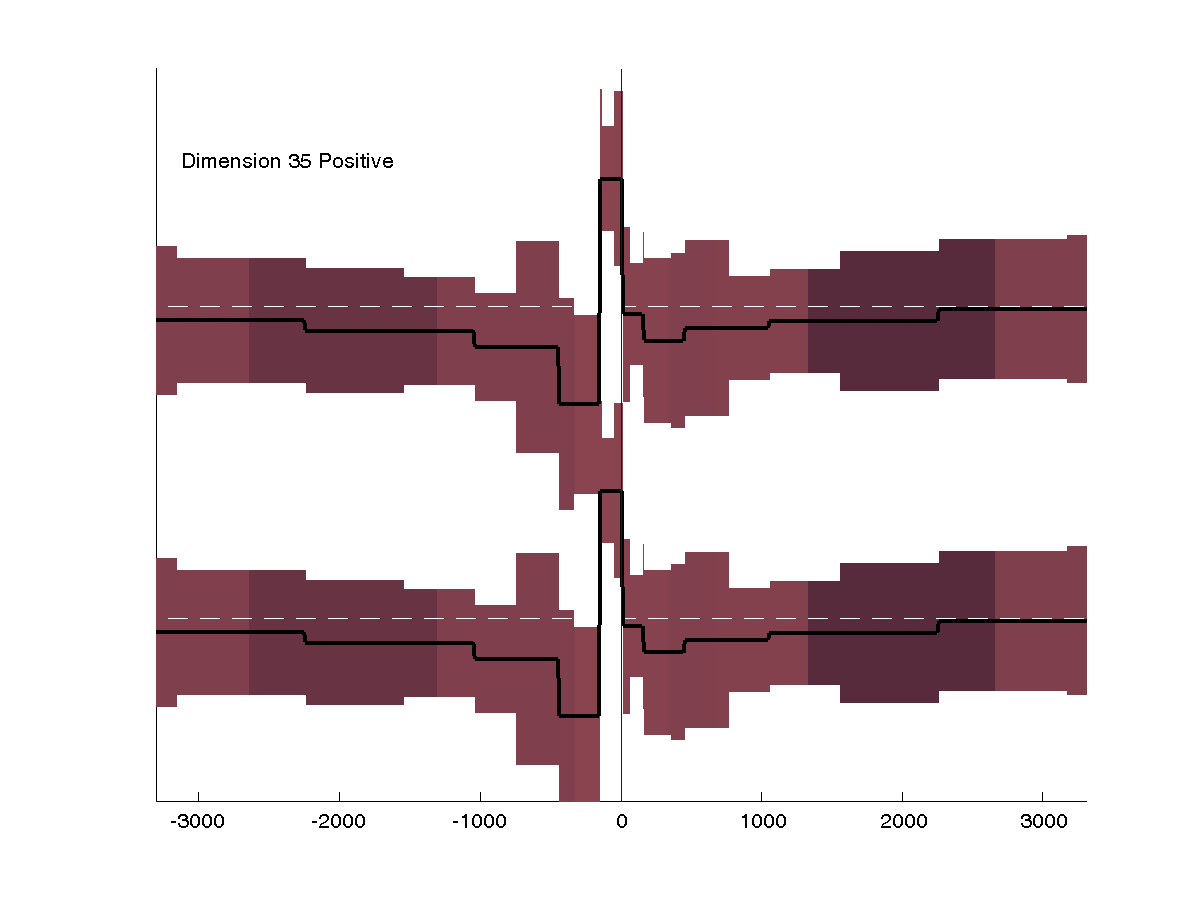

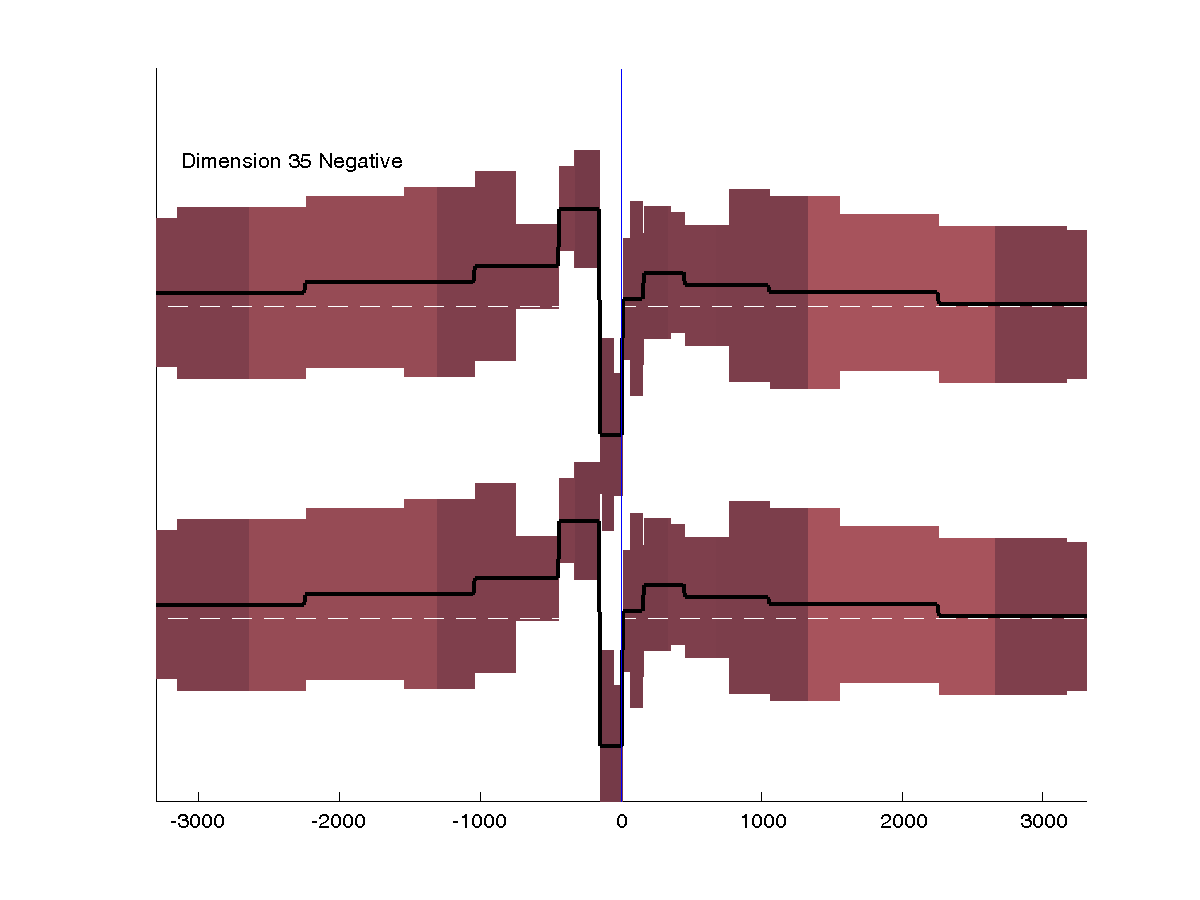

Dimension 35

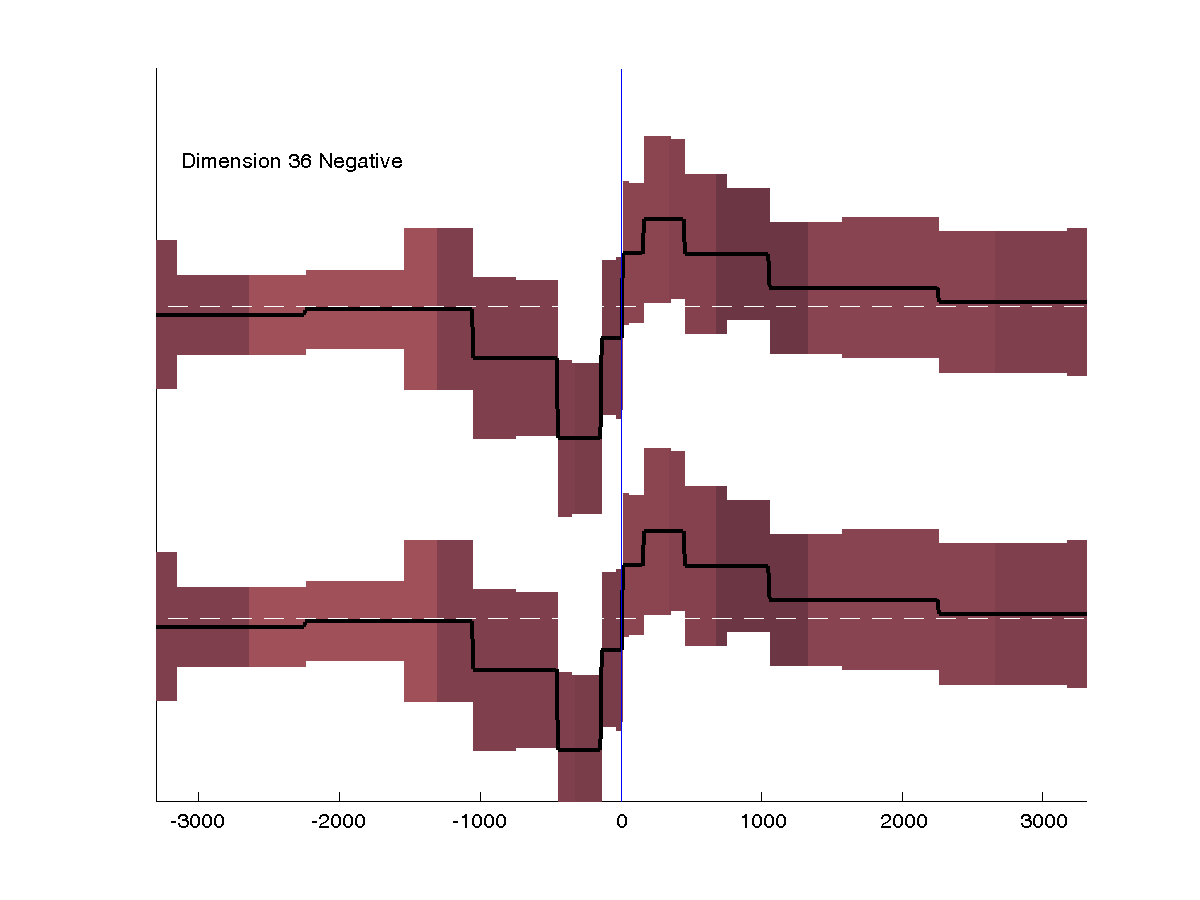

Dimension 36

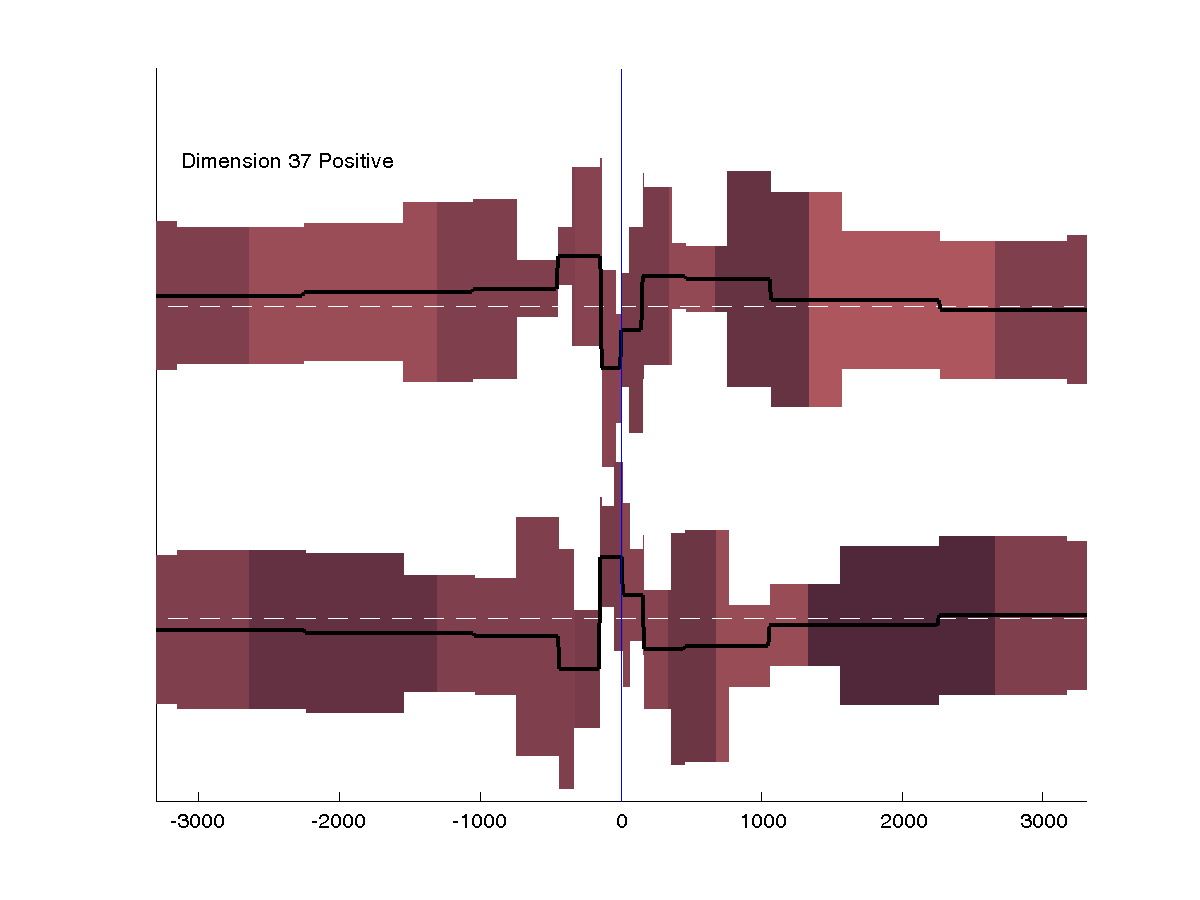

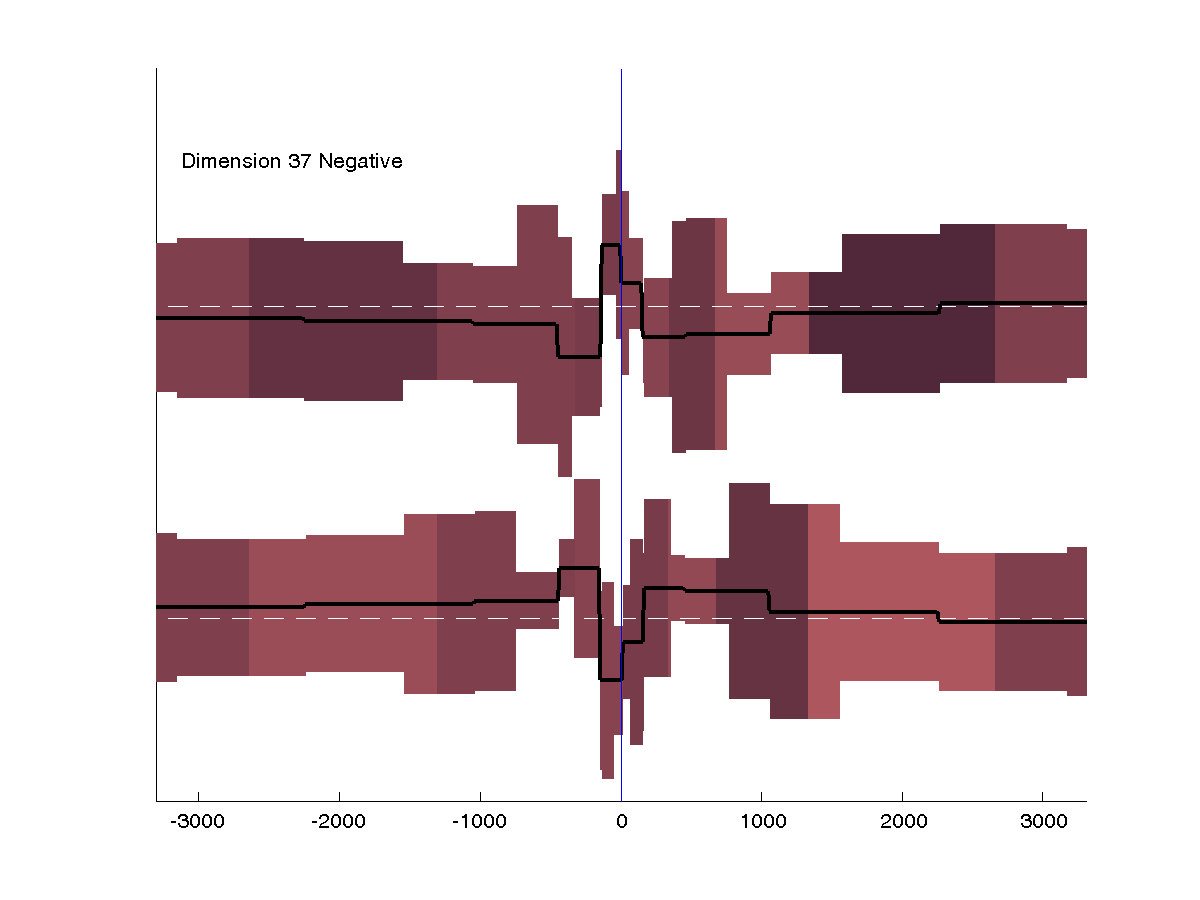

Dimension 37

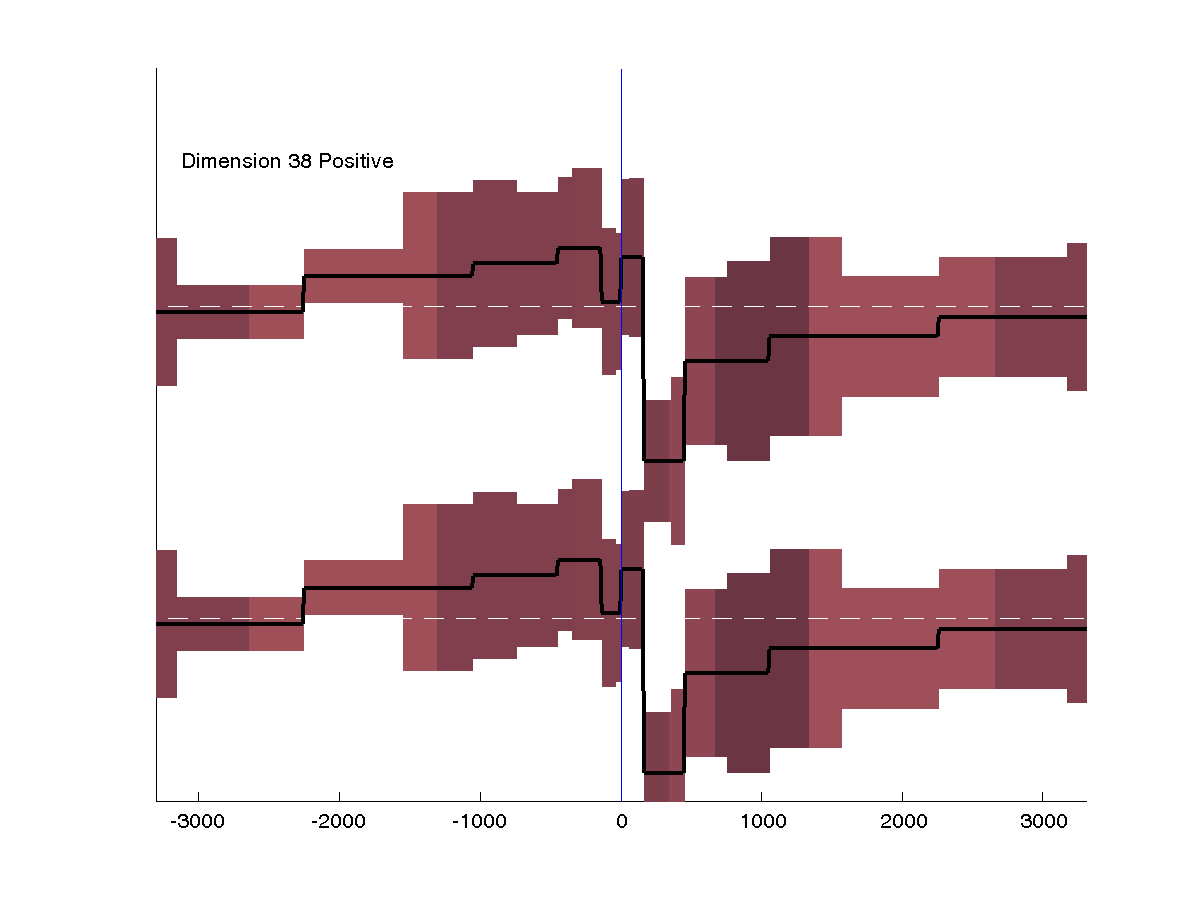

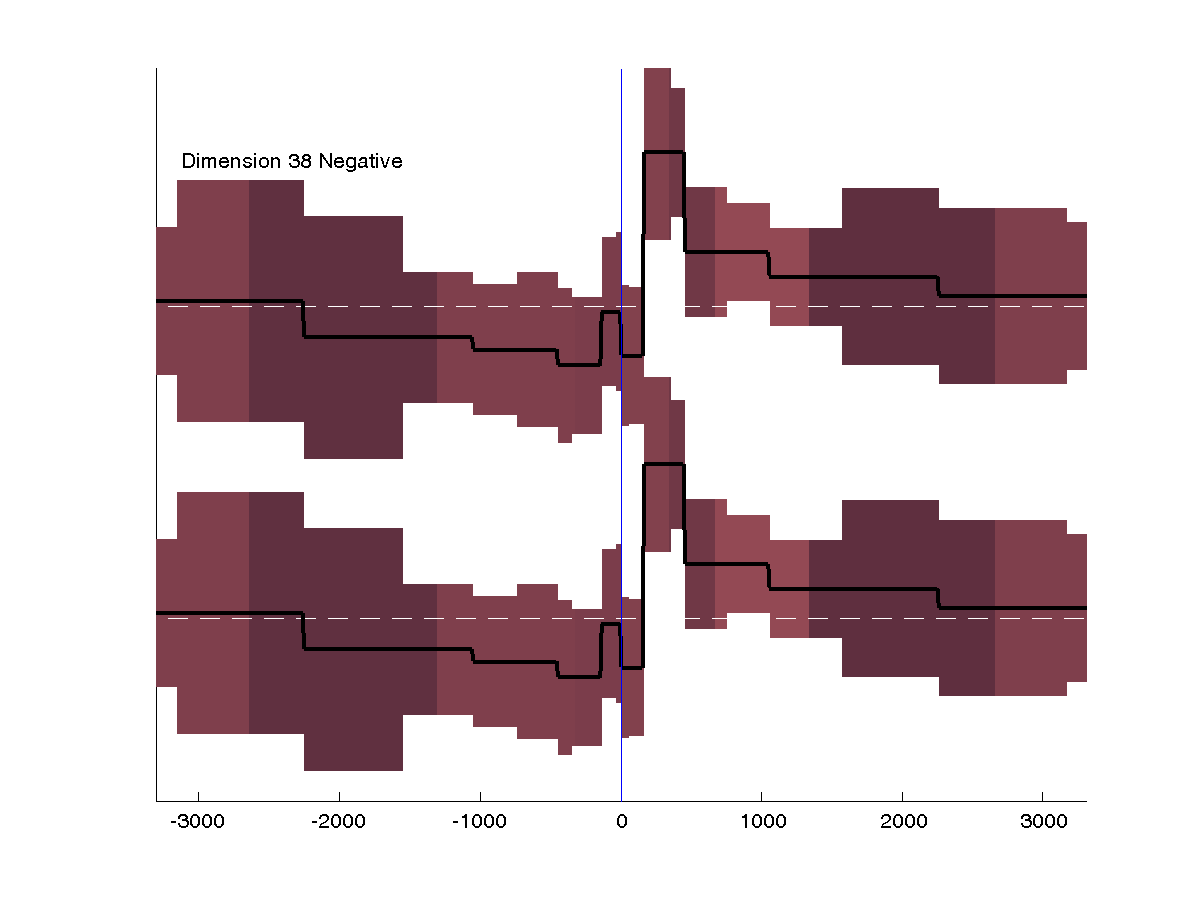

Dimension 38

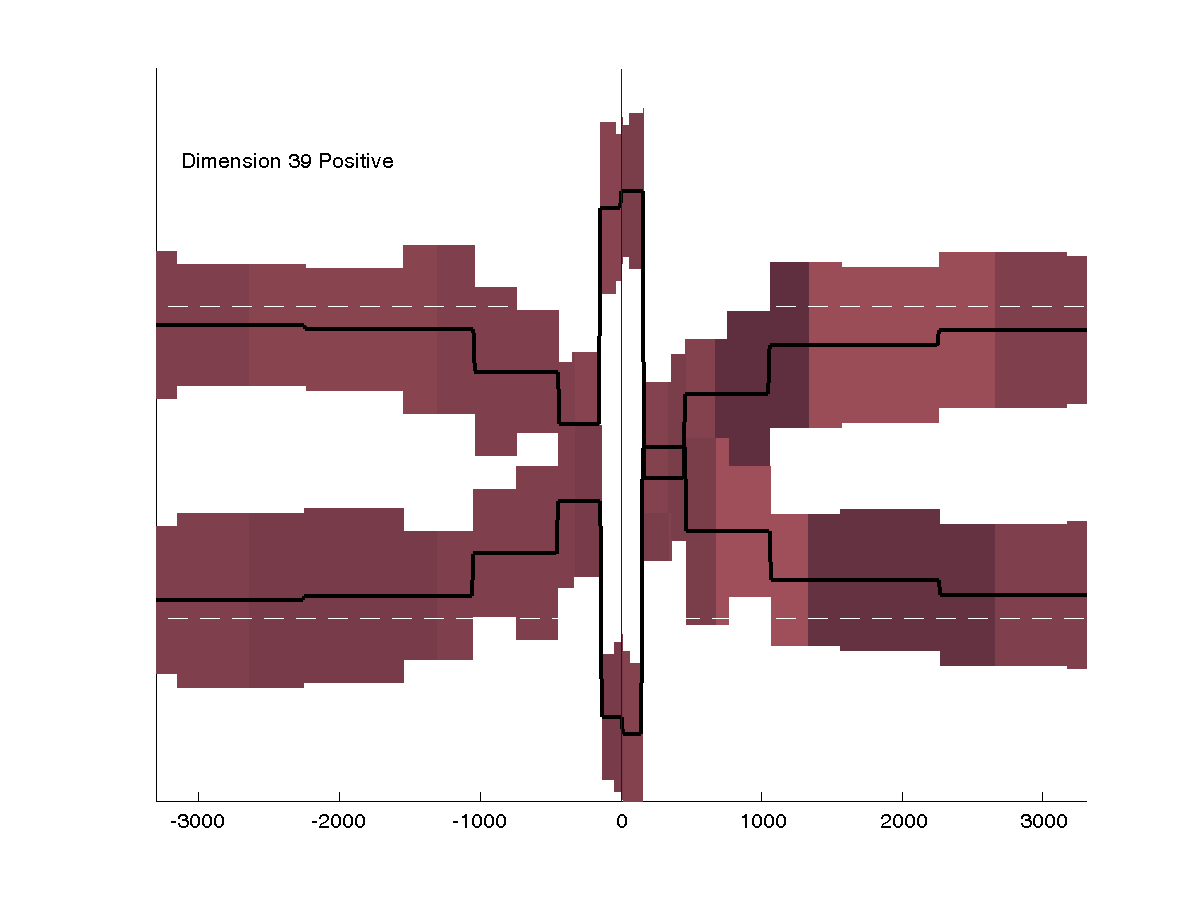

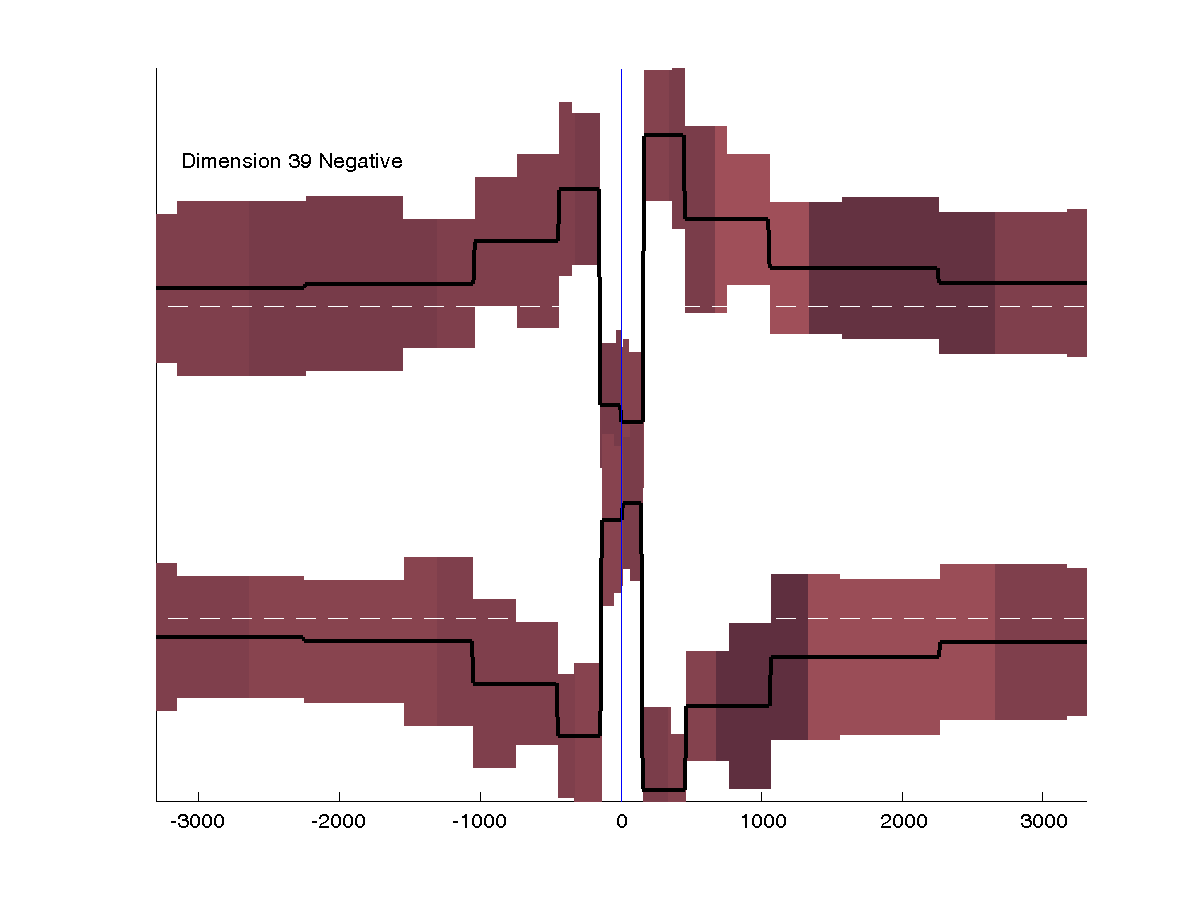

Dimension 39

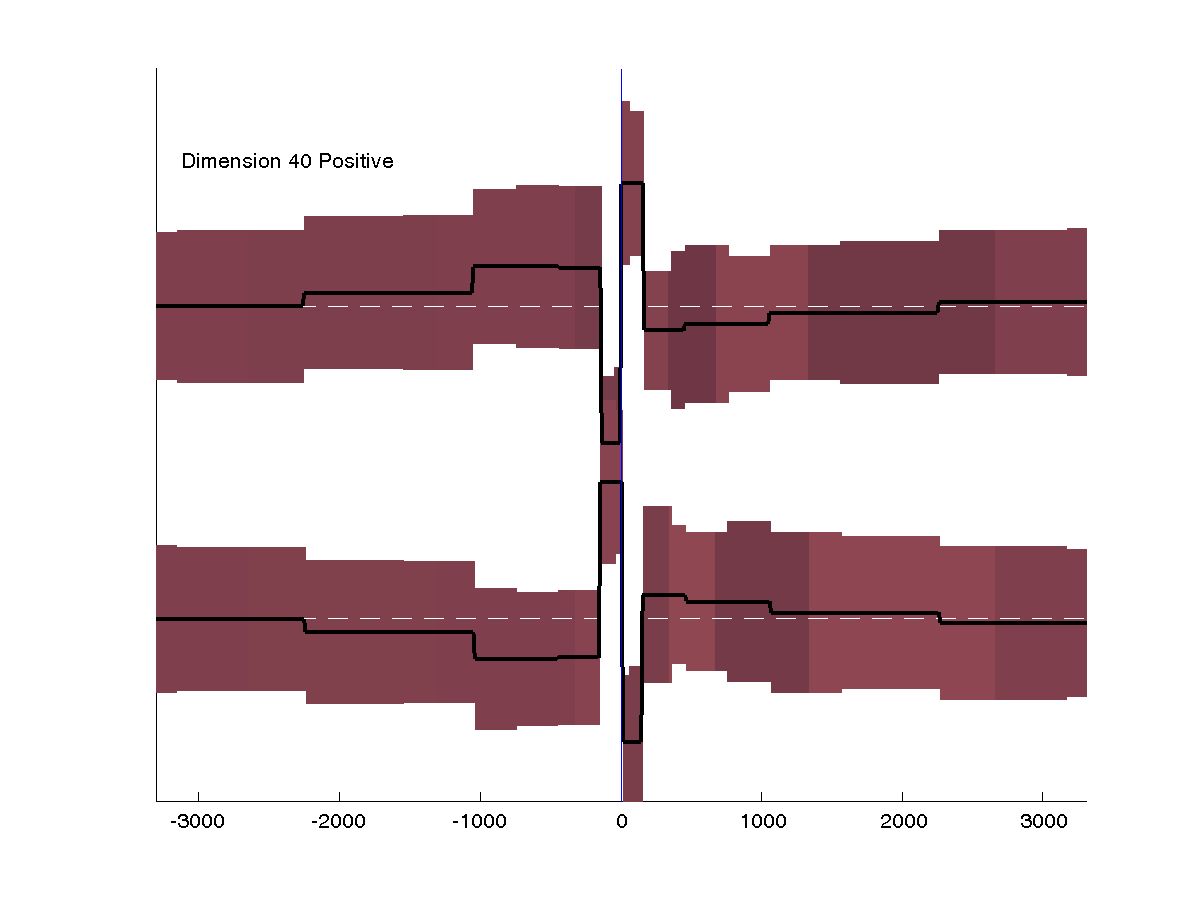

Dimension 40

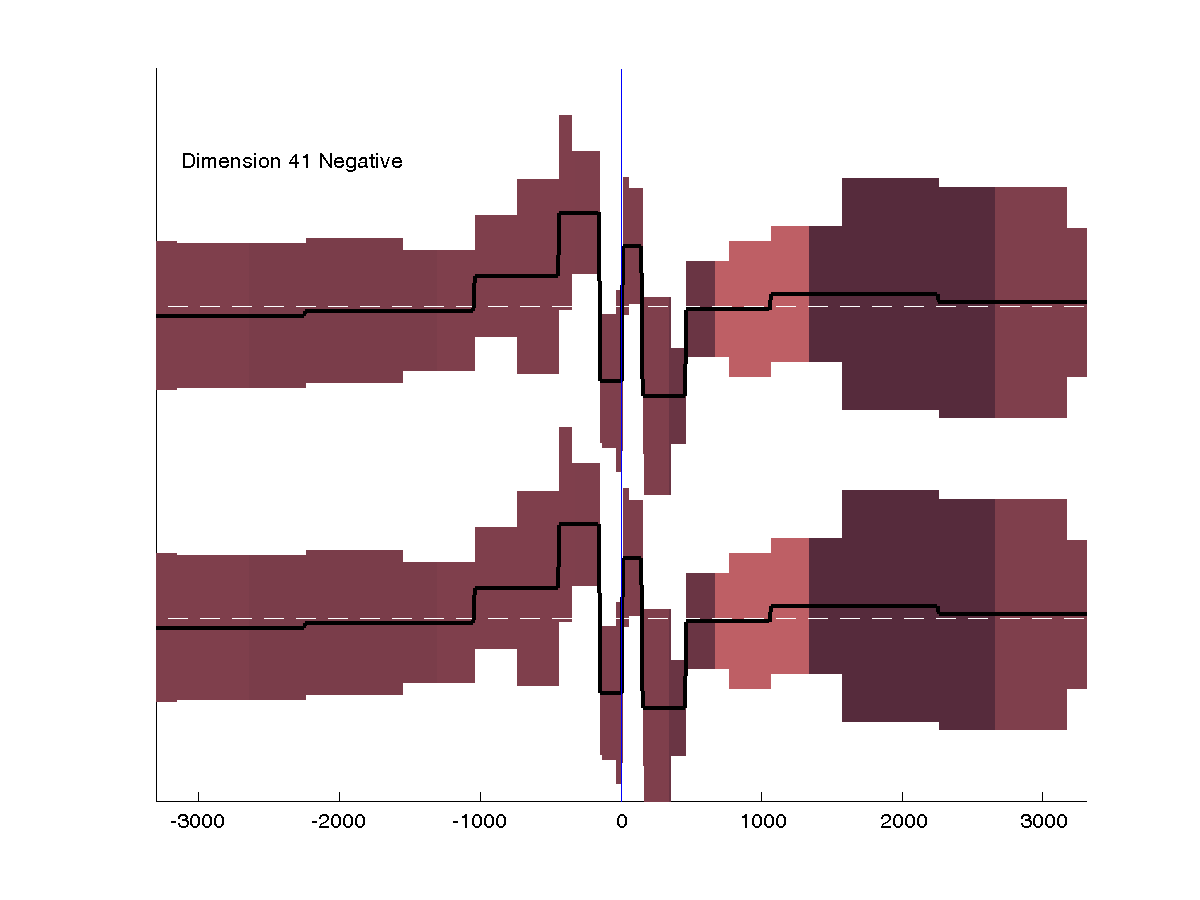

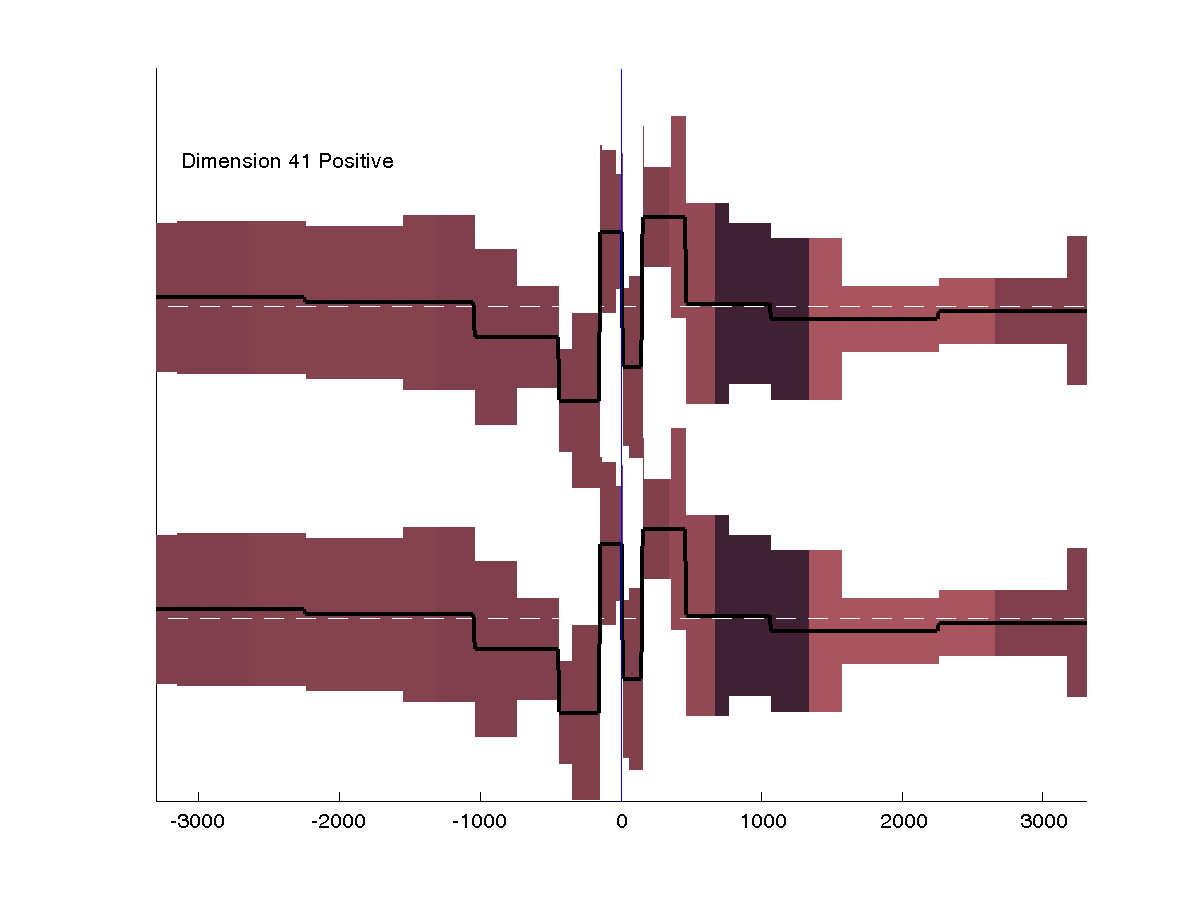

Dimension 41

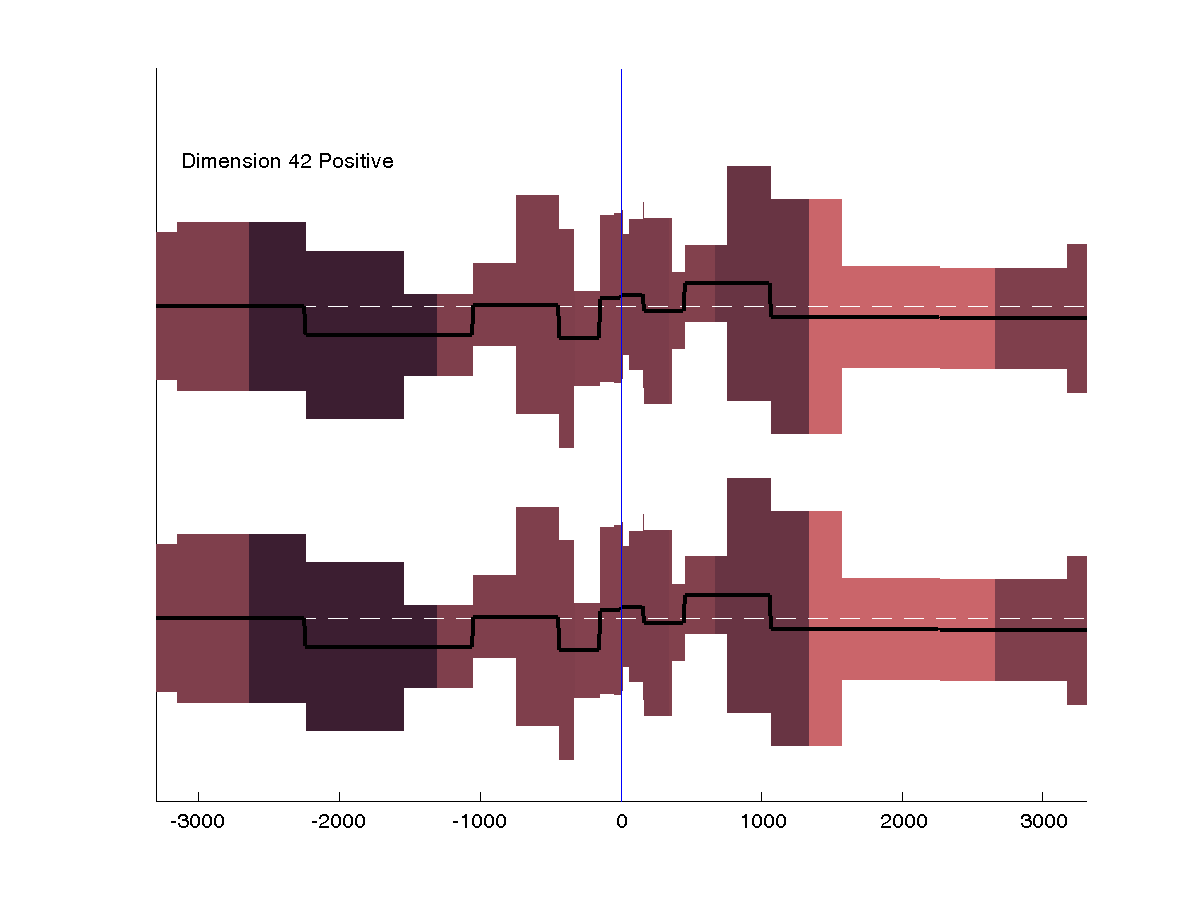

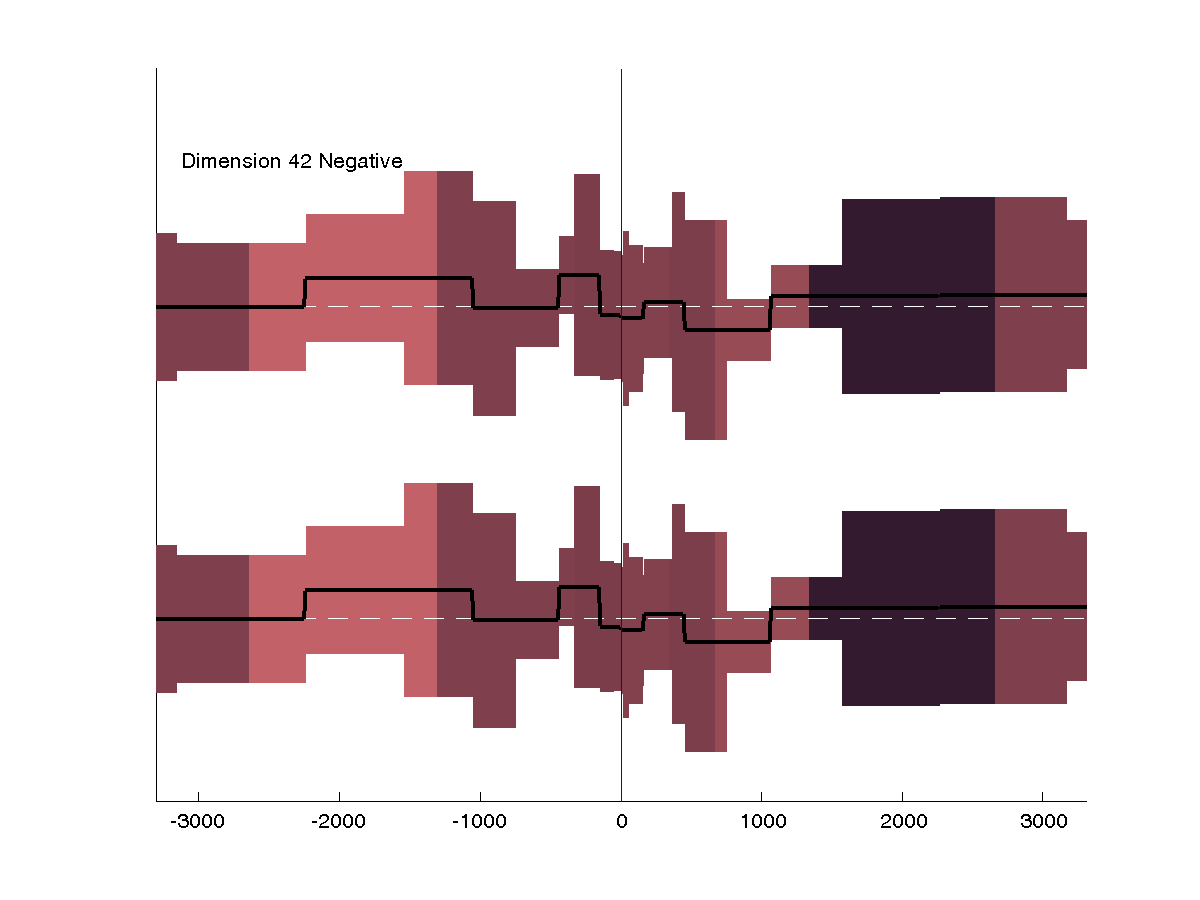

Dimension 42

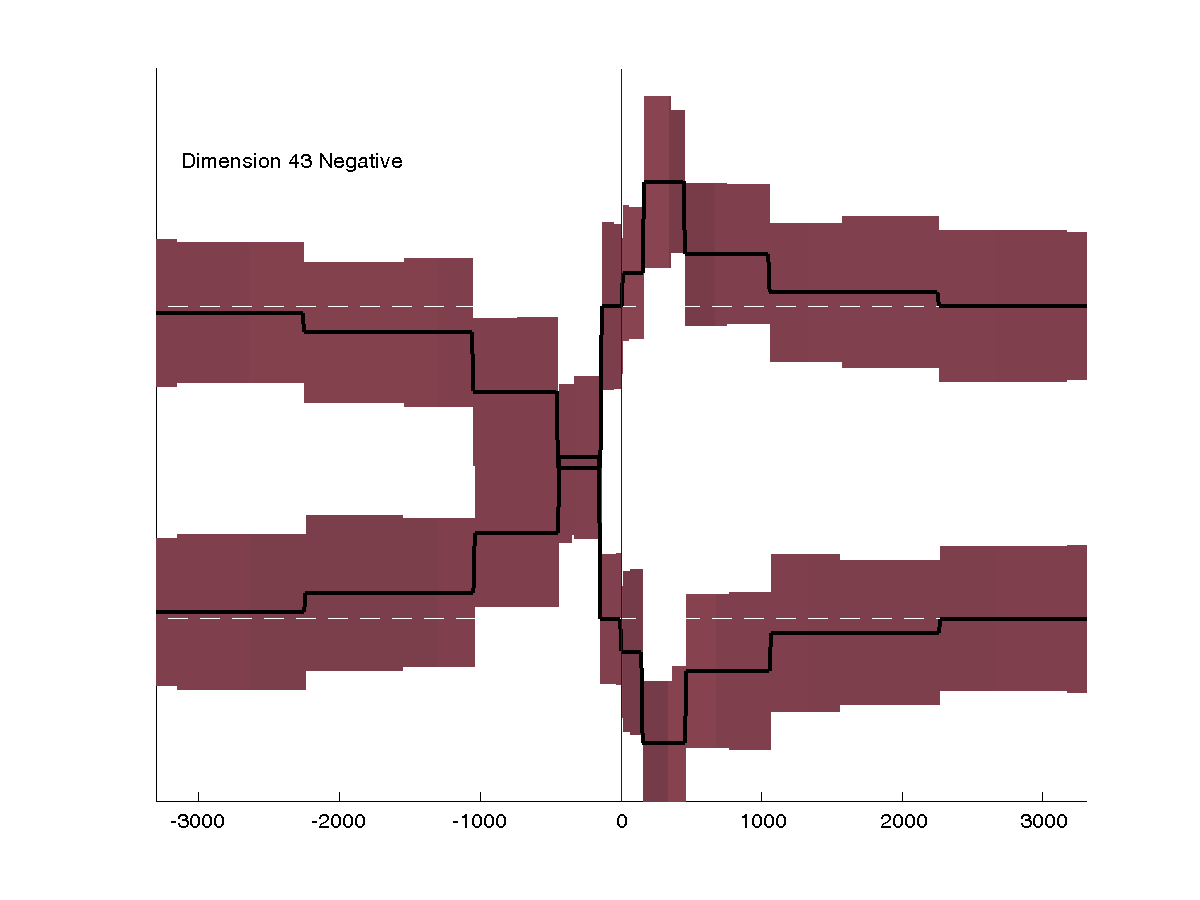

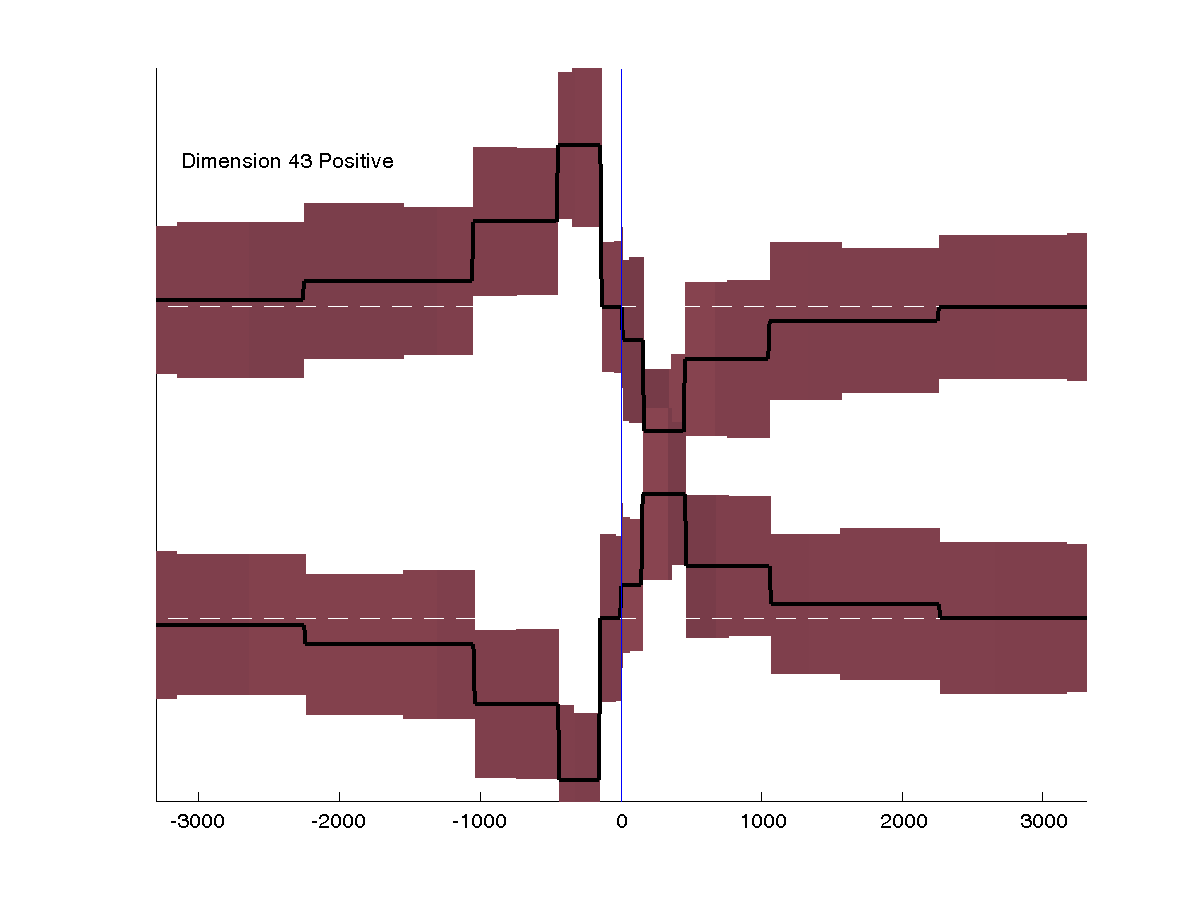

Dimension 43

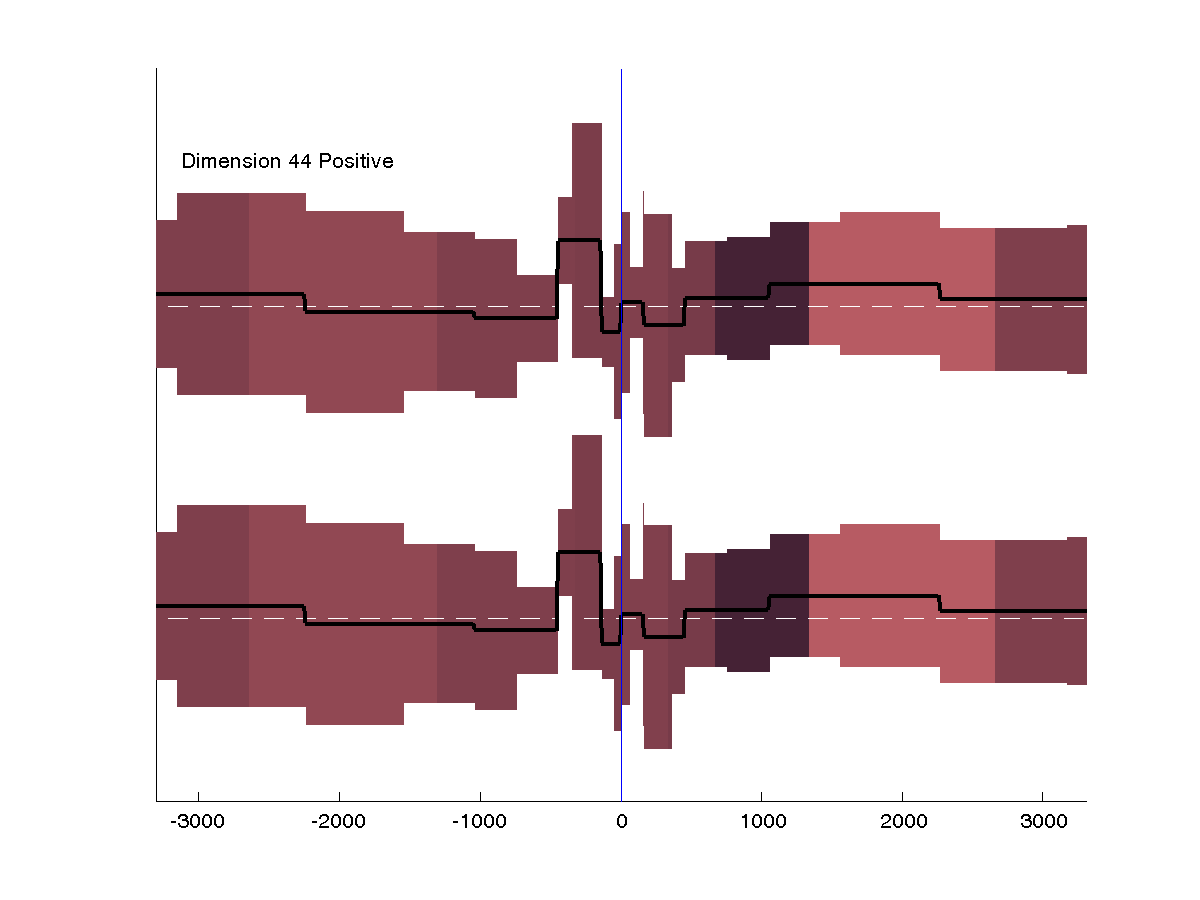

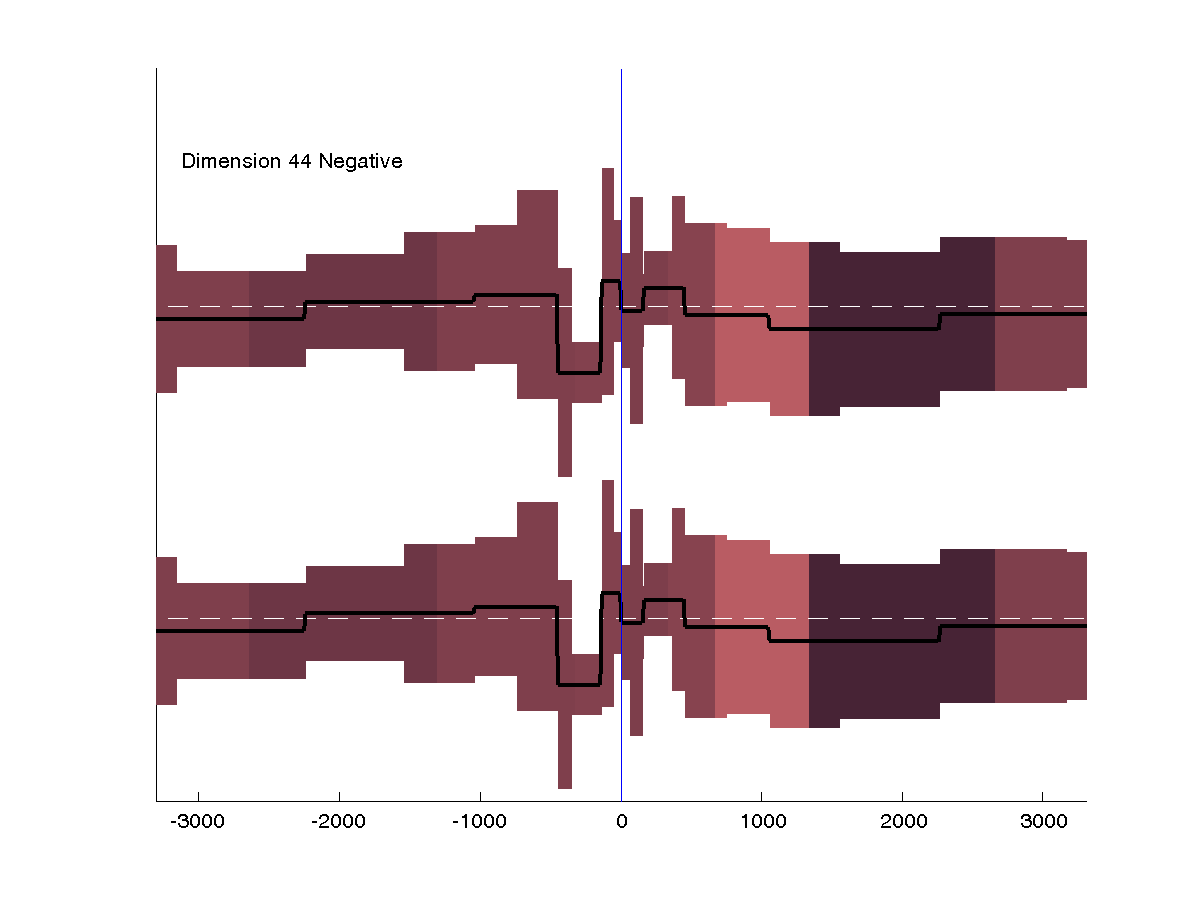

Dimension 44

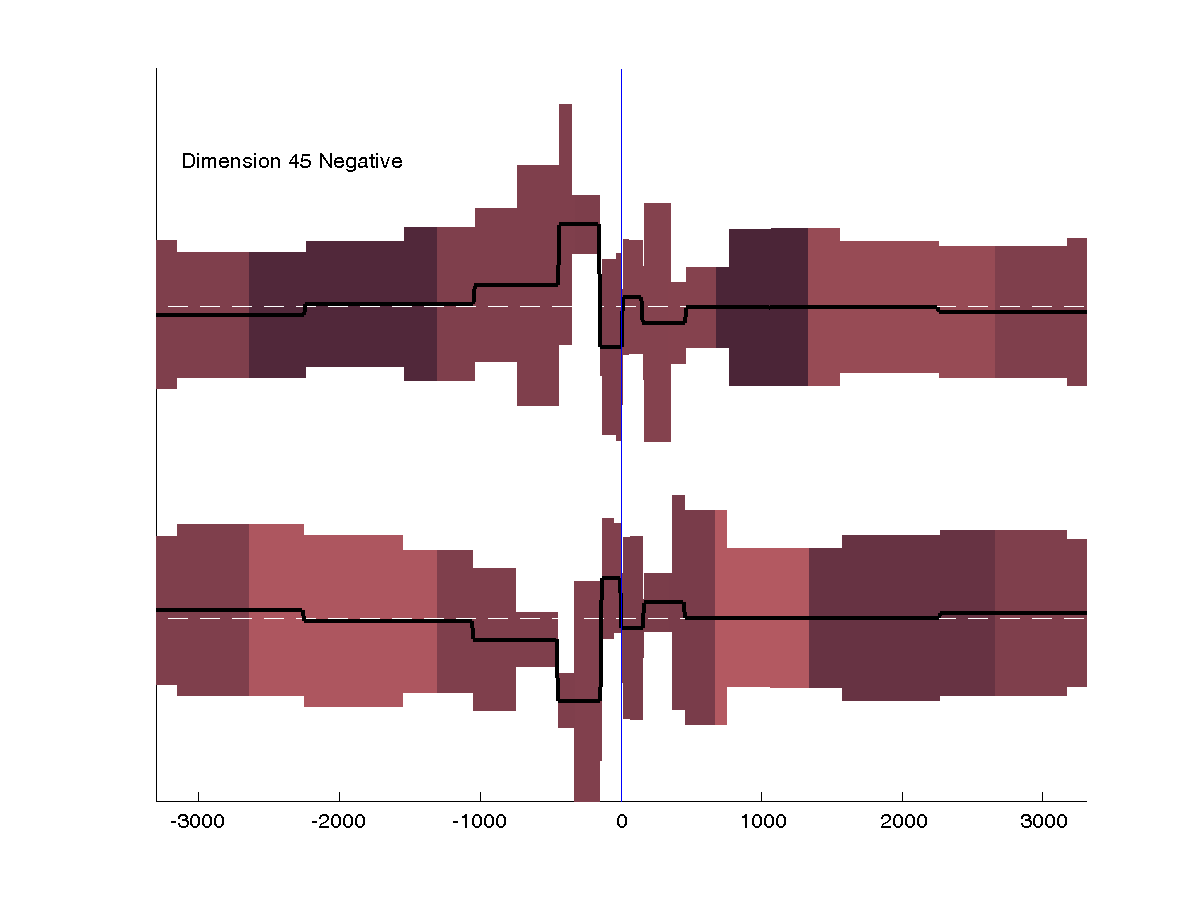

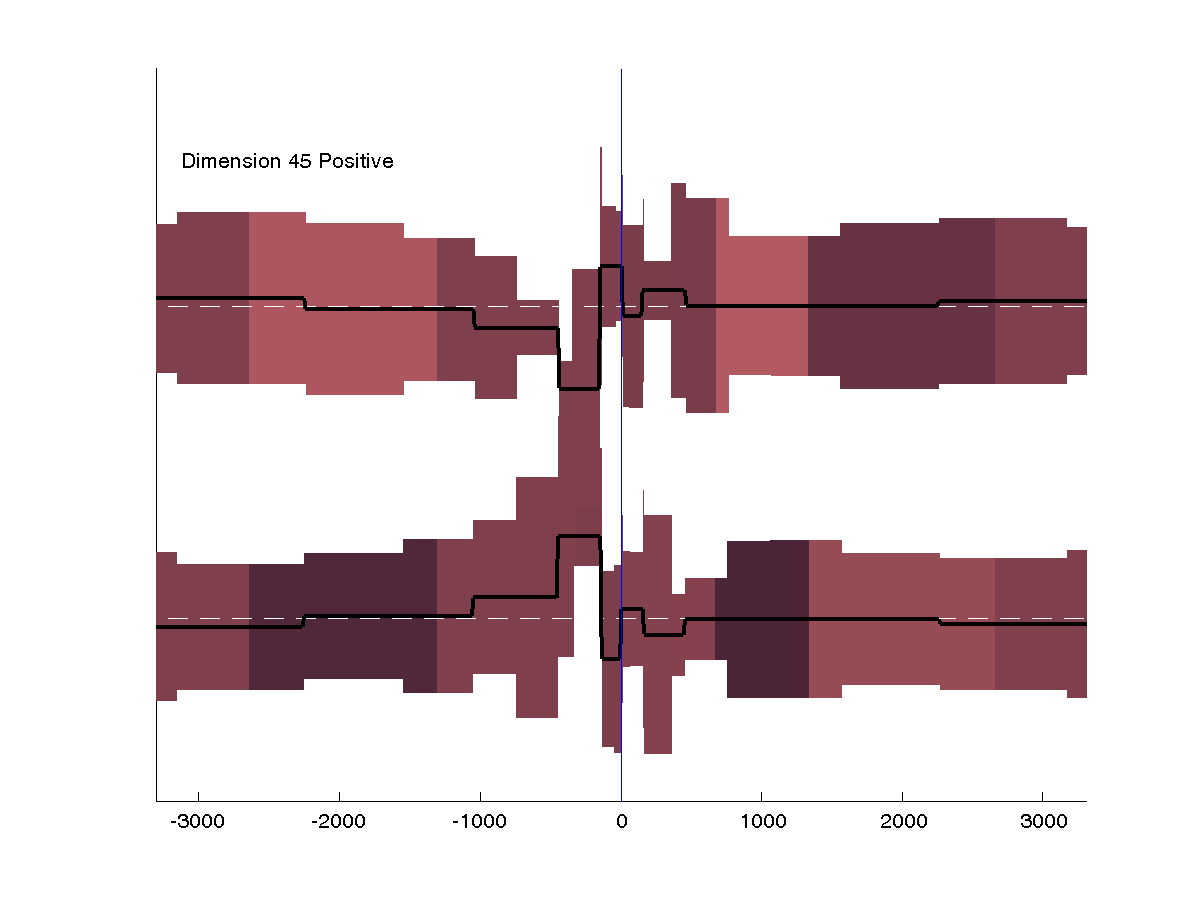

Dimension 45

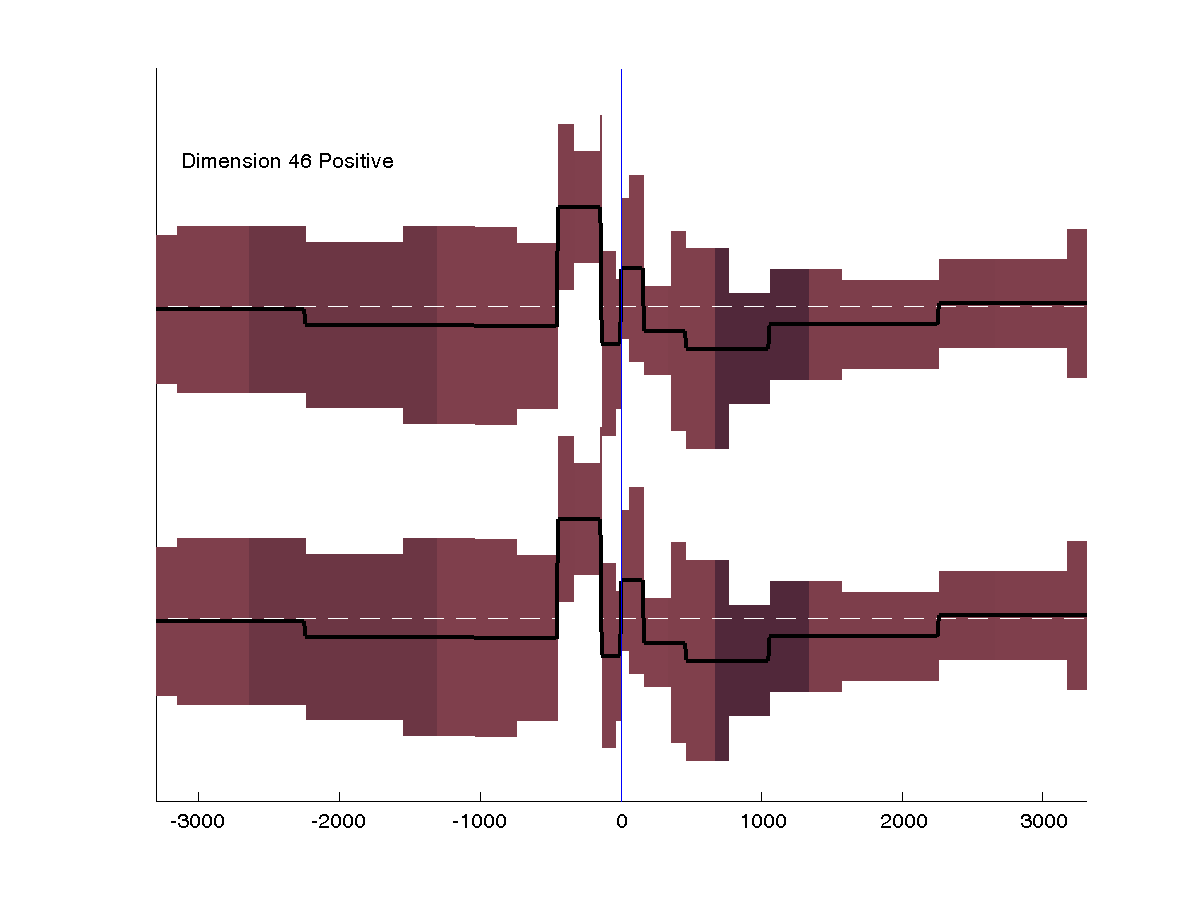

Dimension 46

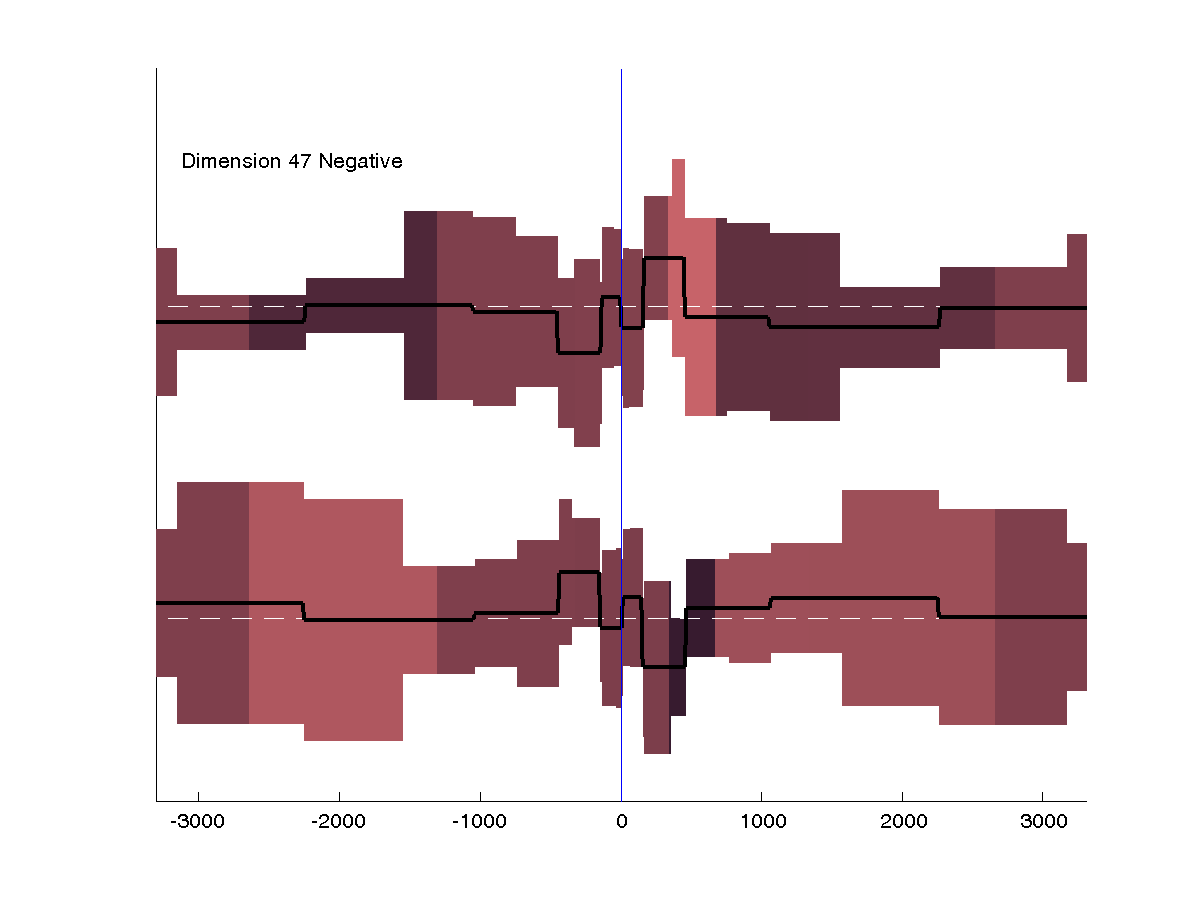

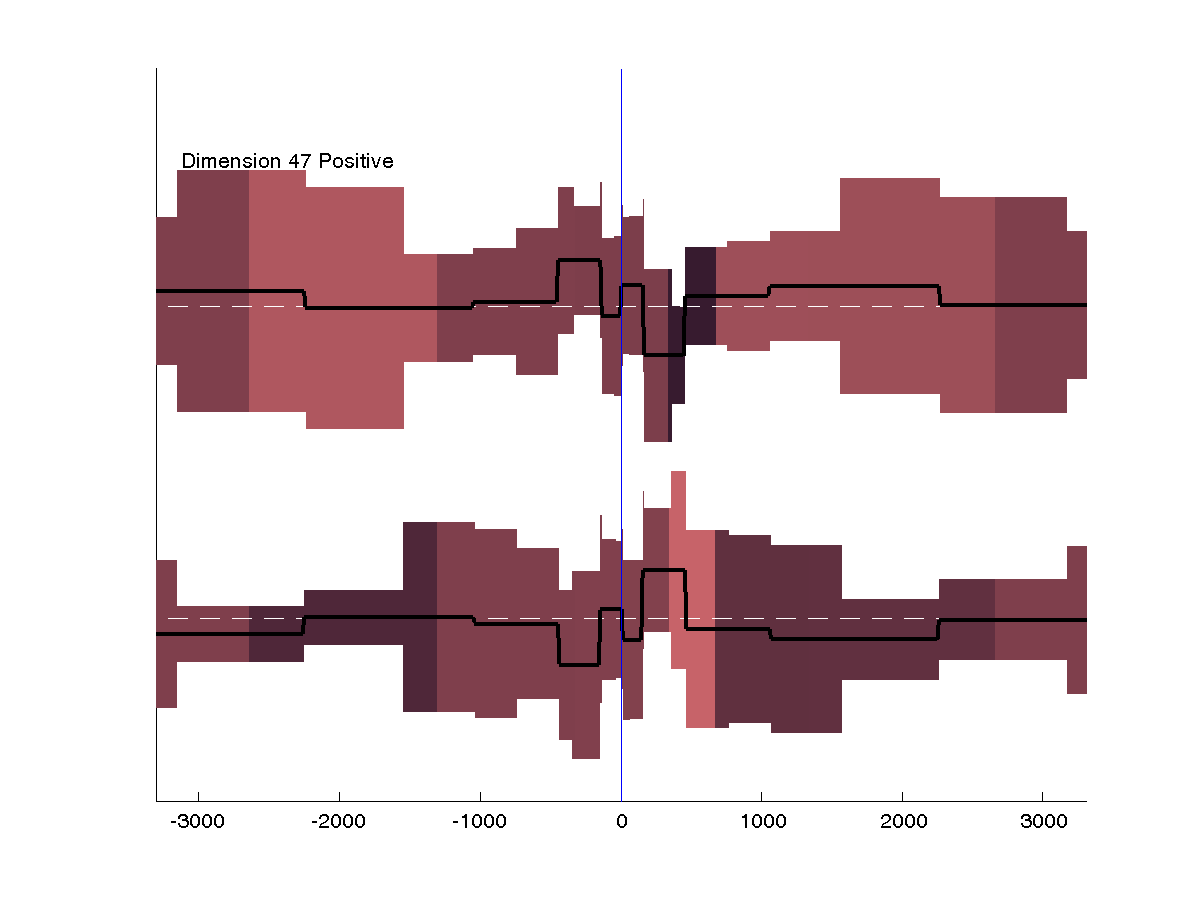

Dimension 47

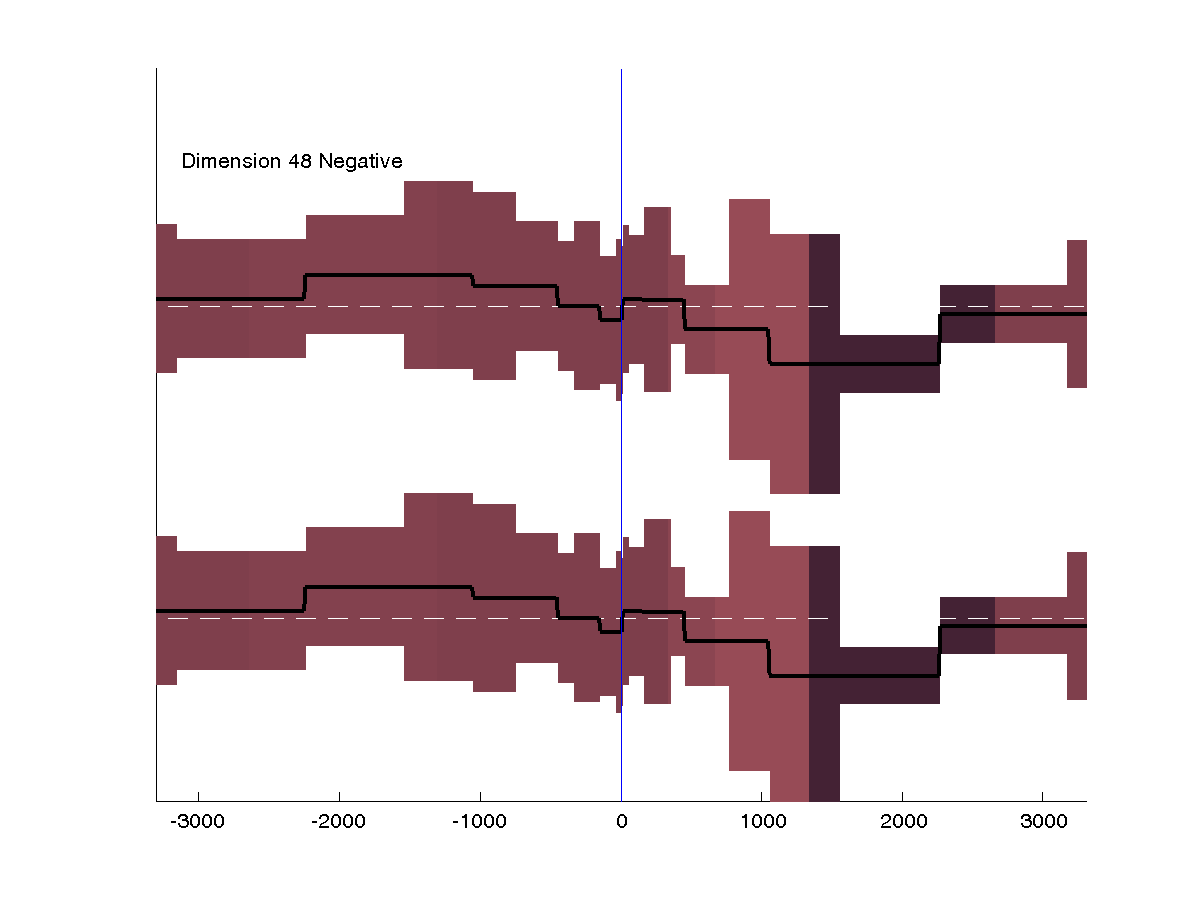

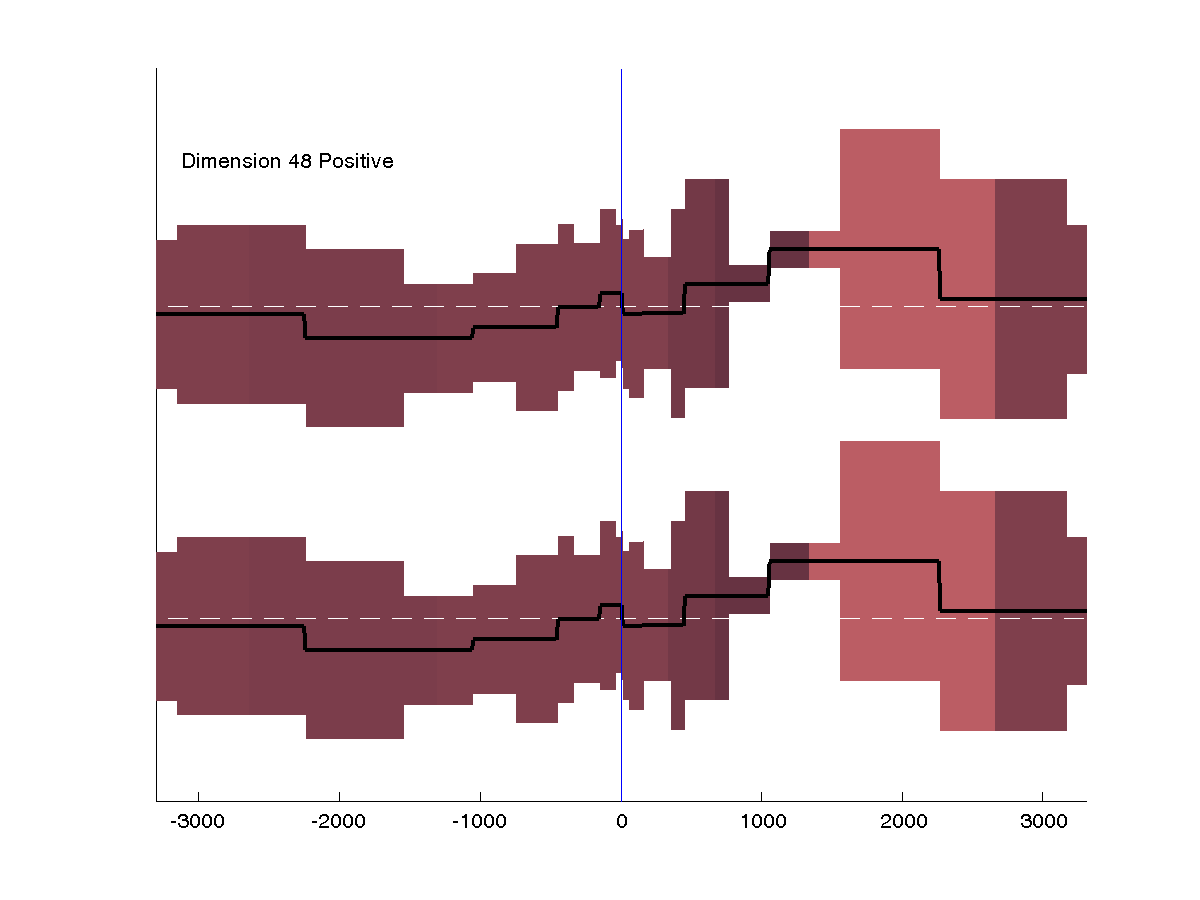

Dimension 48

Dimension 49

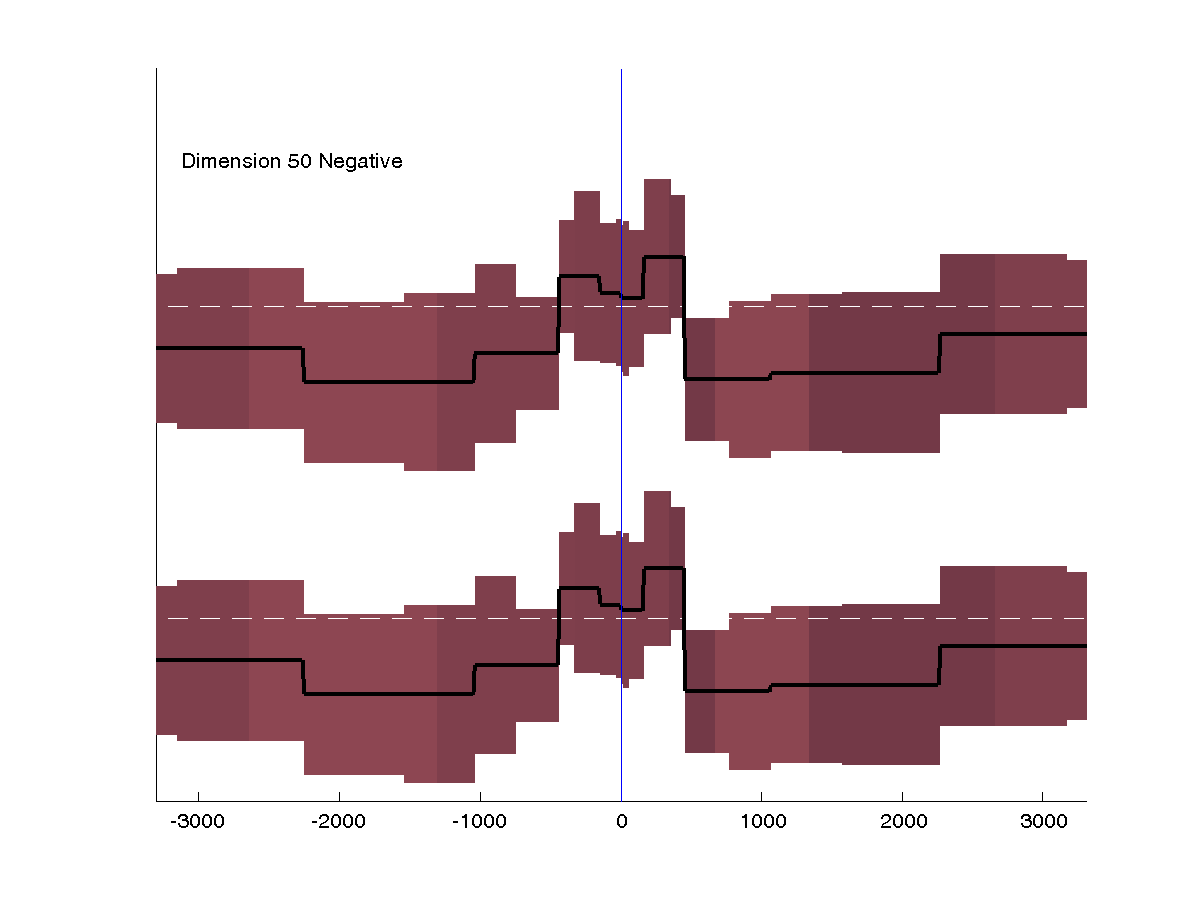

Dimension 50

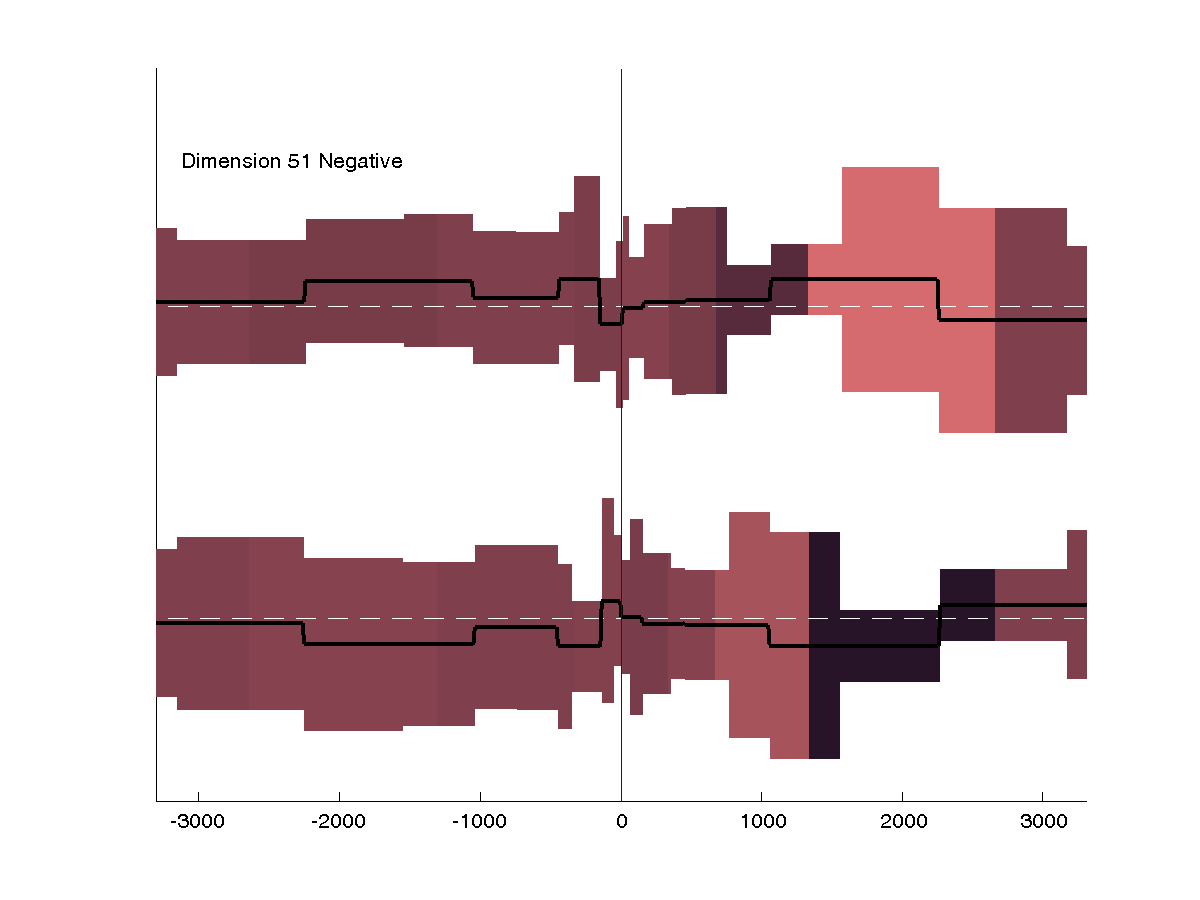

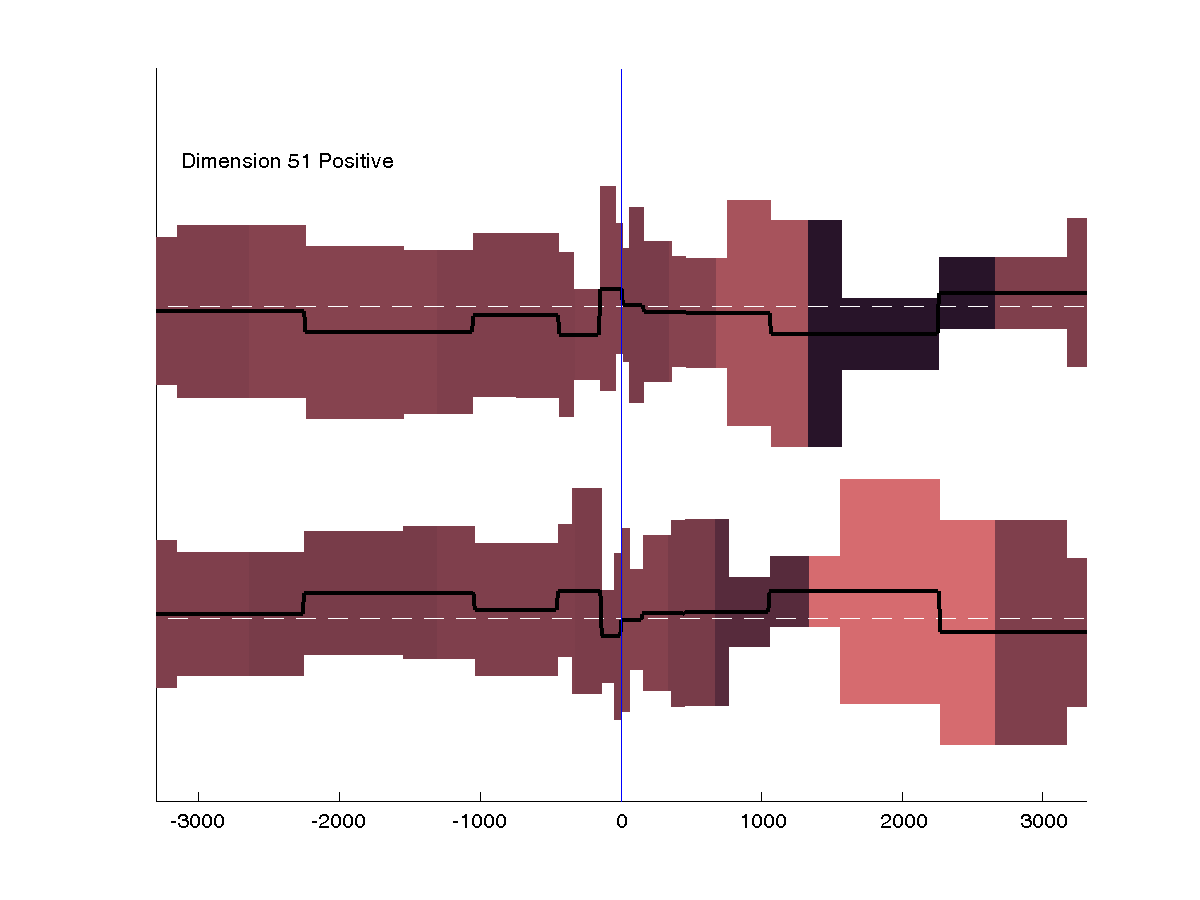

Dimension 51

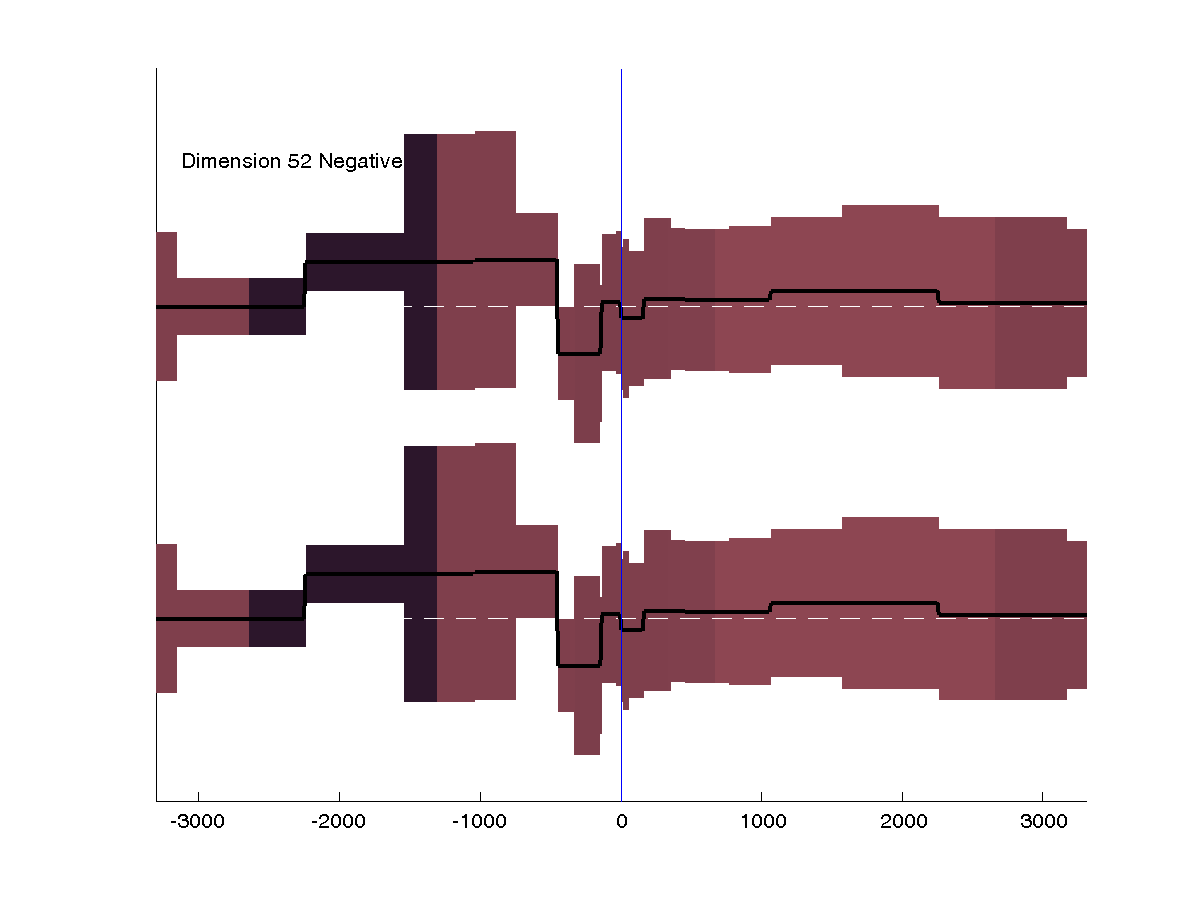

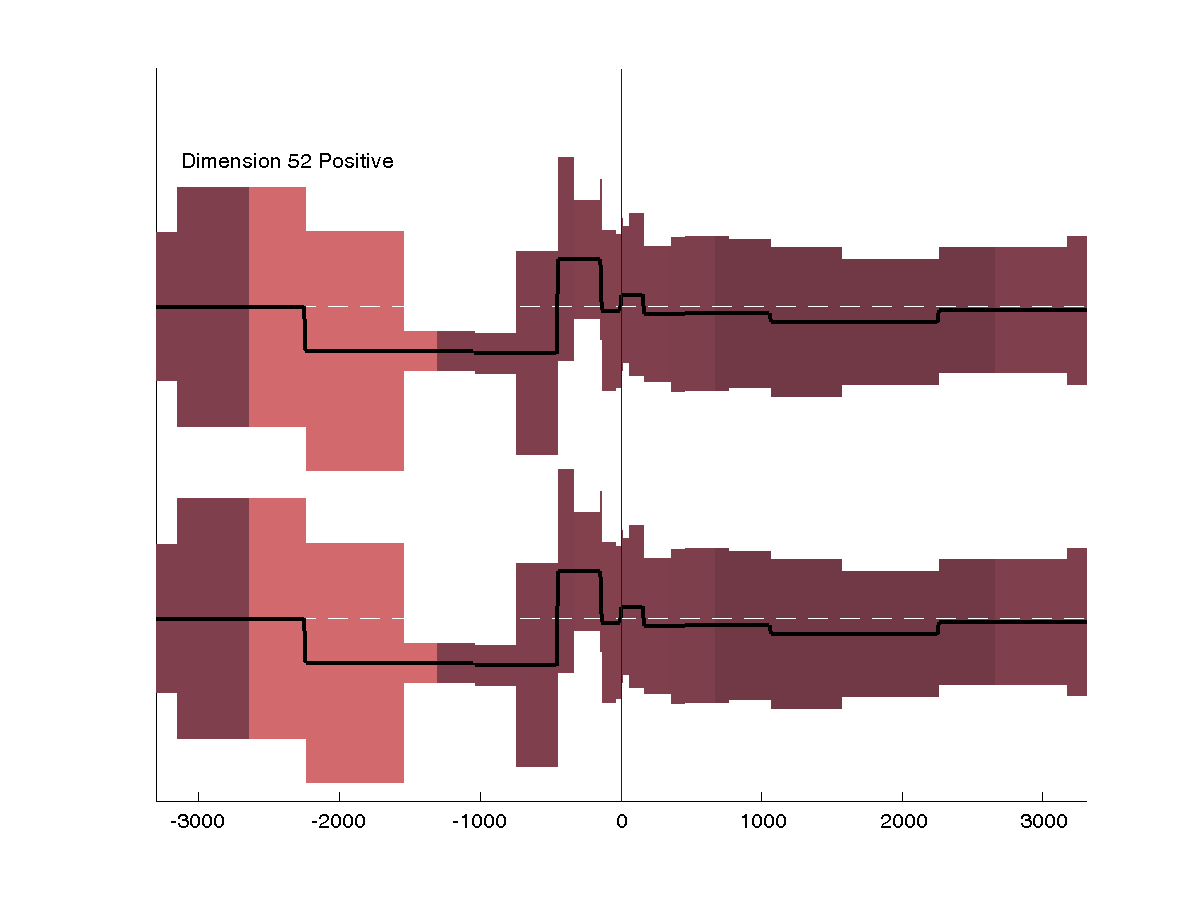

Dimension 52

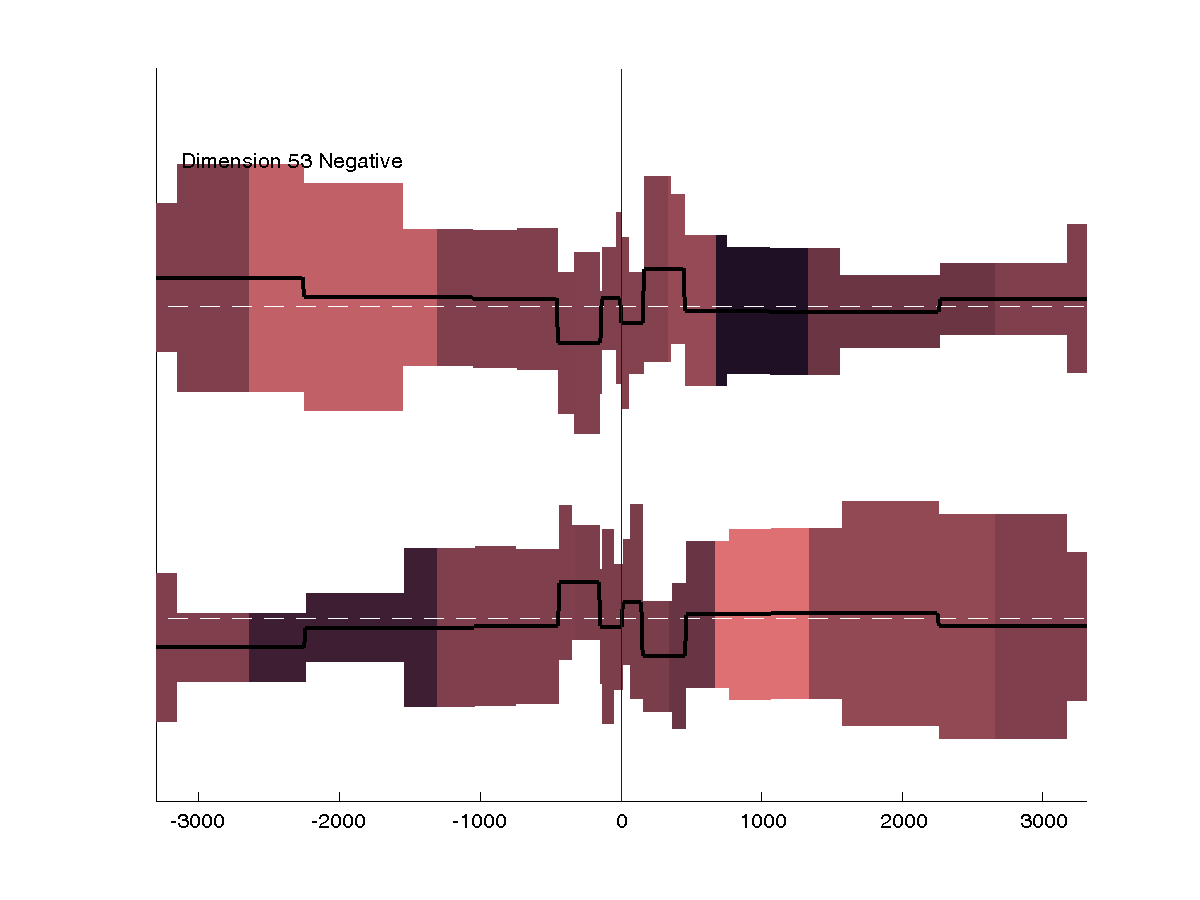

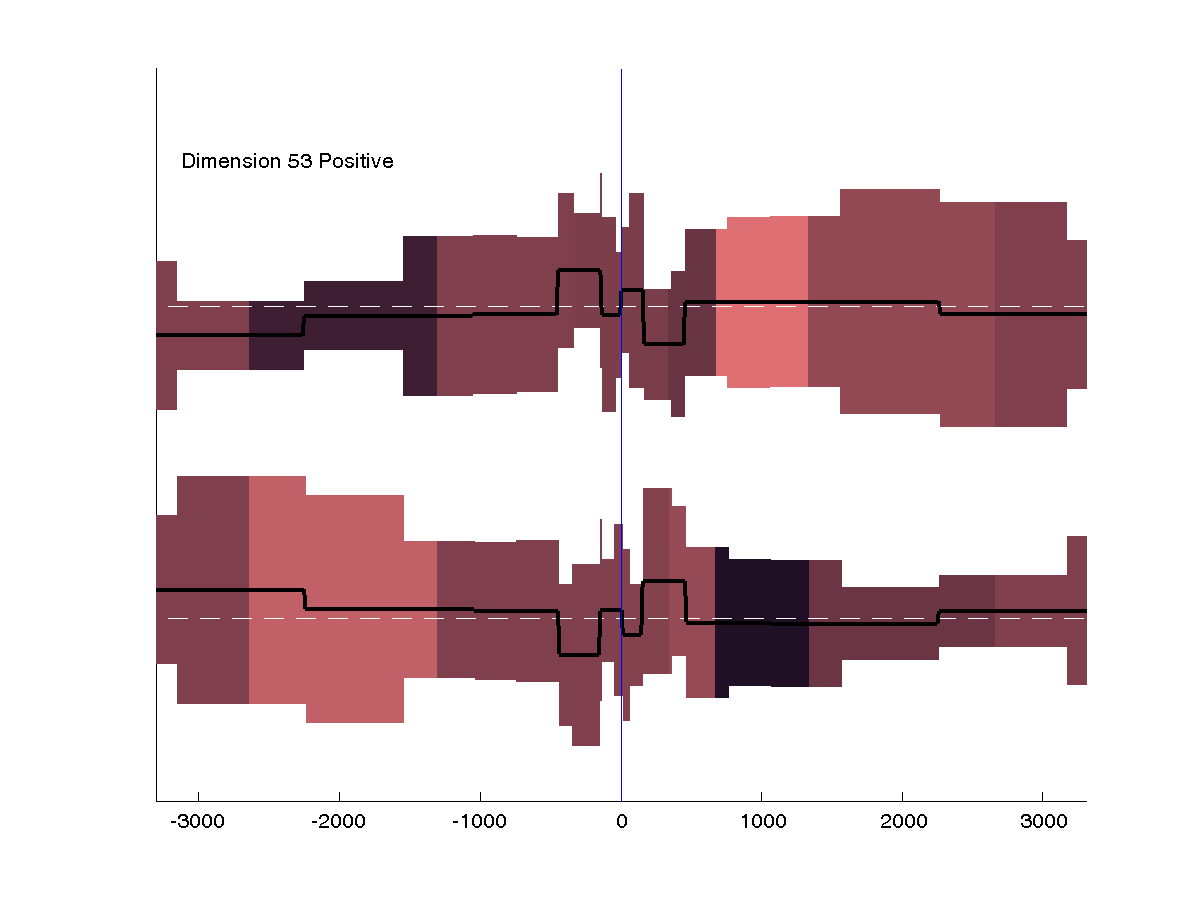

Dimension 53

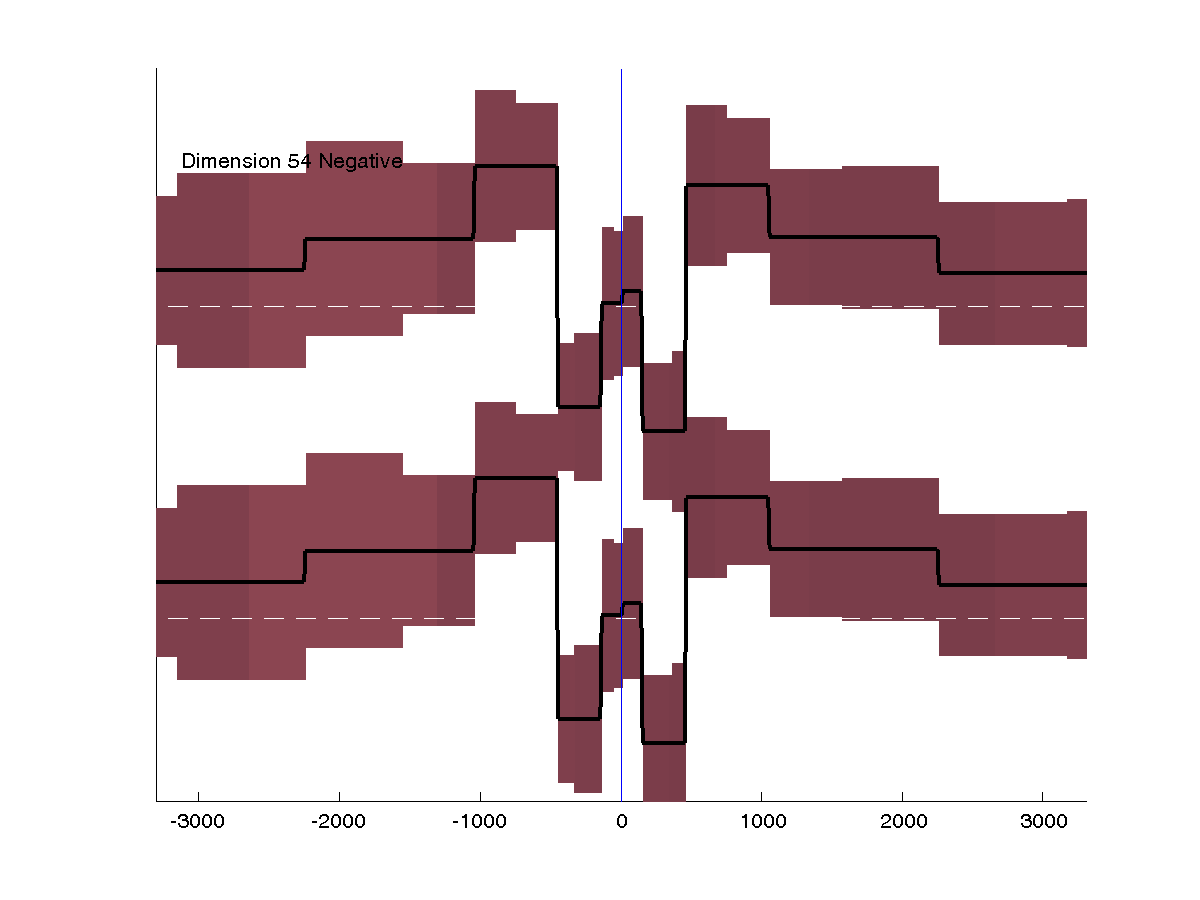

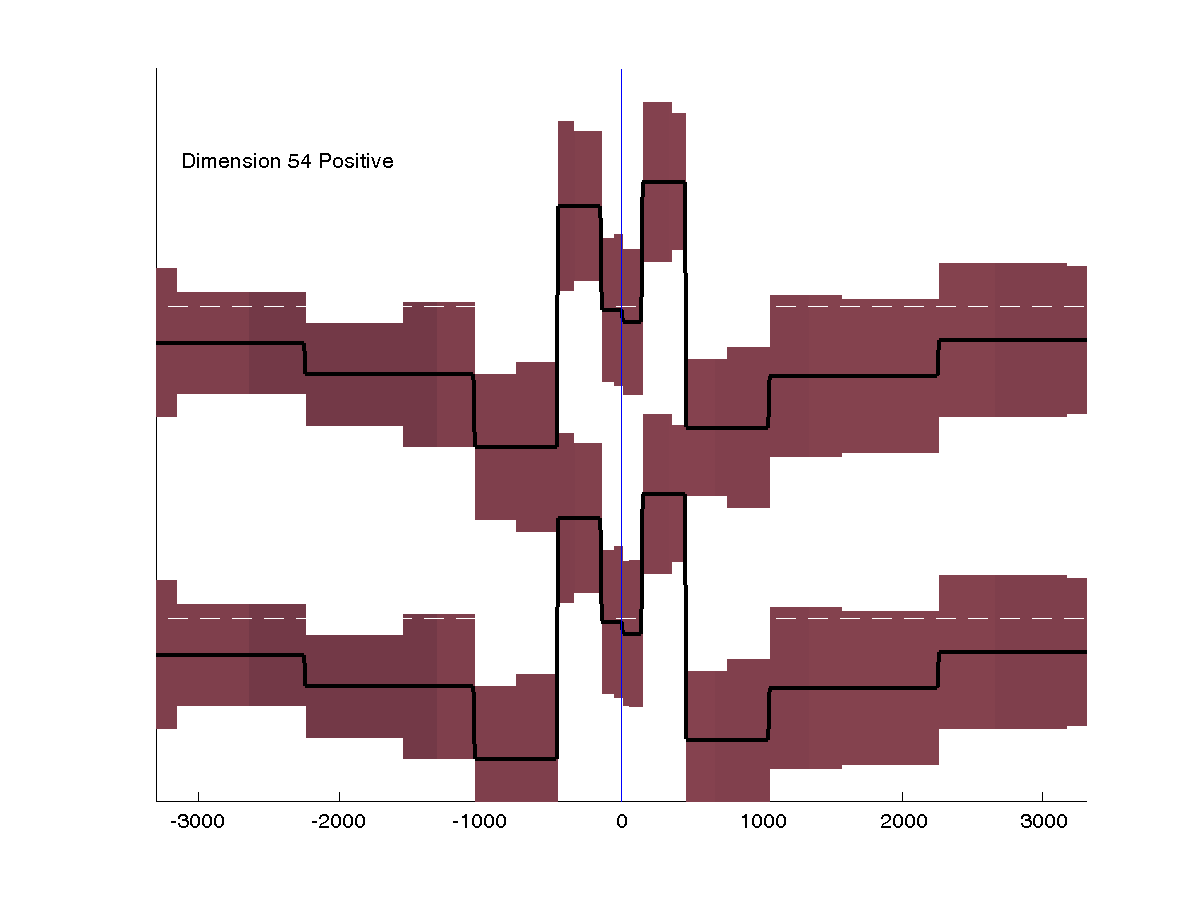

Dimension 54

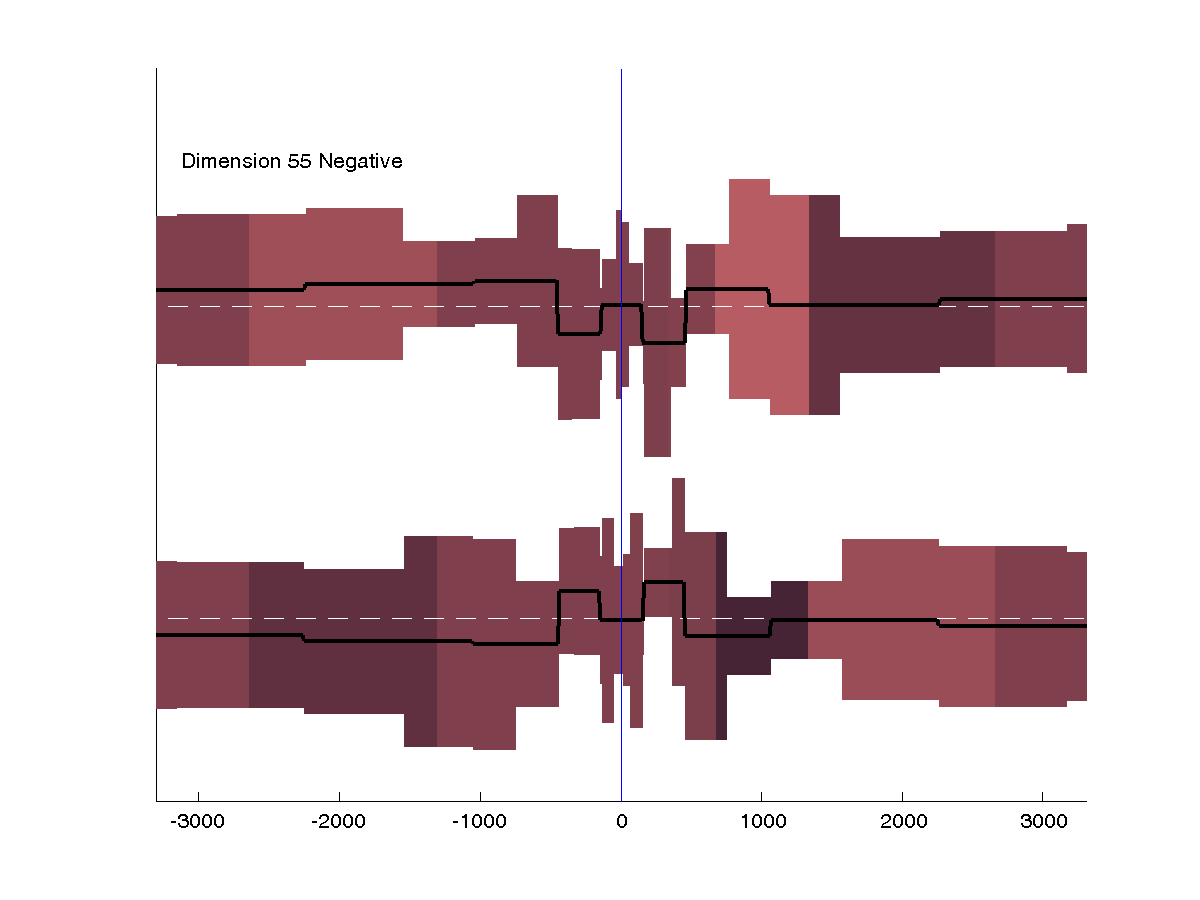

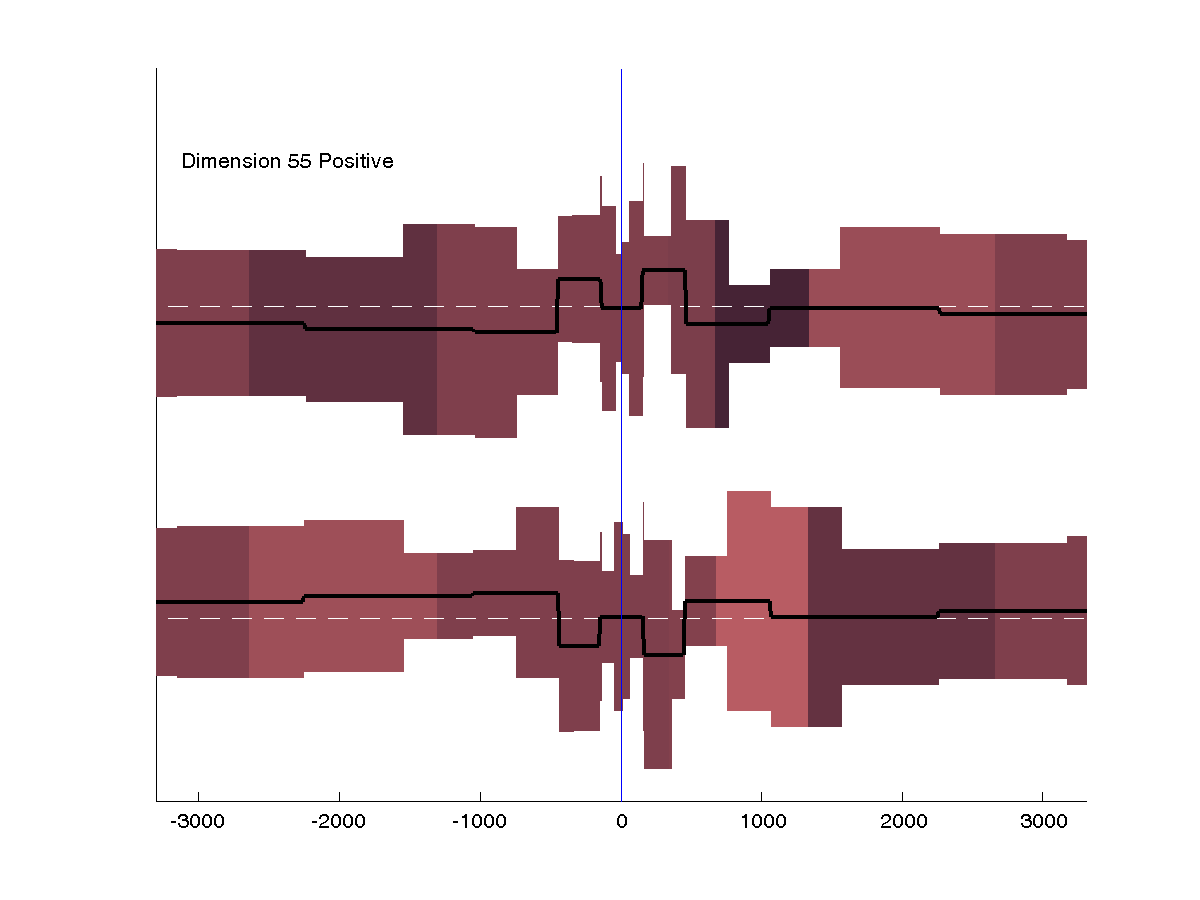

Dimension 55

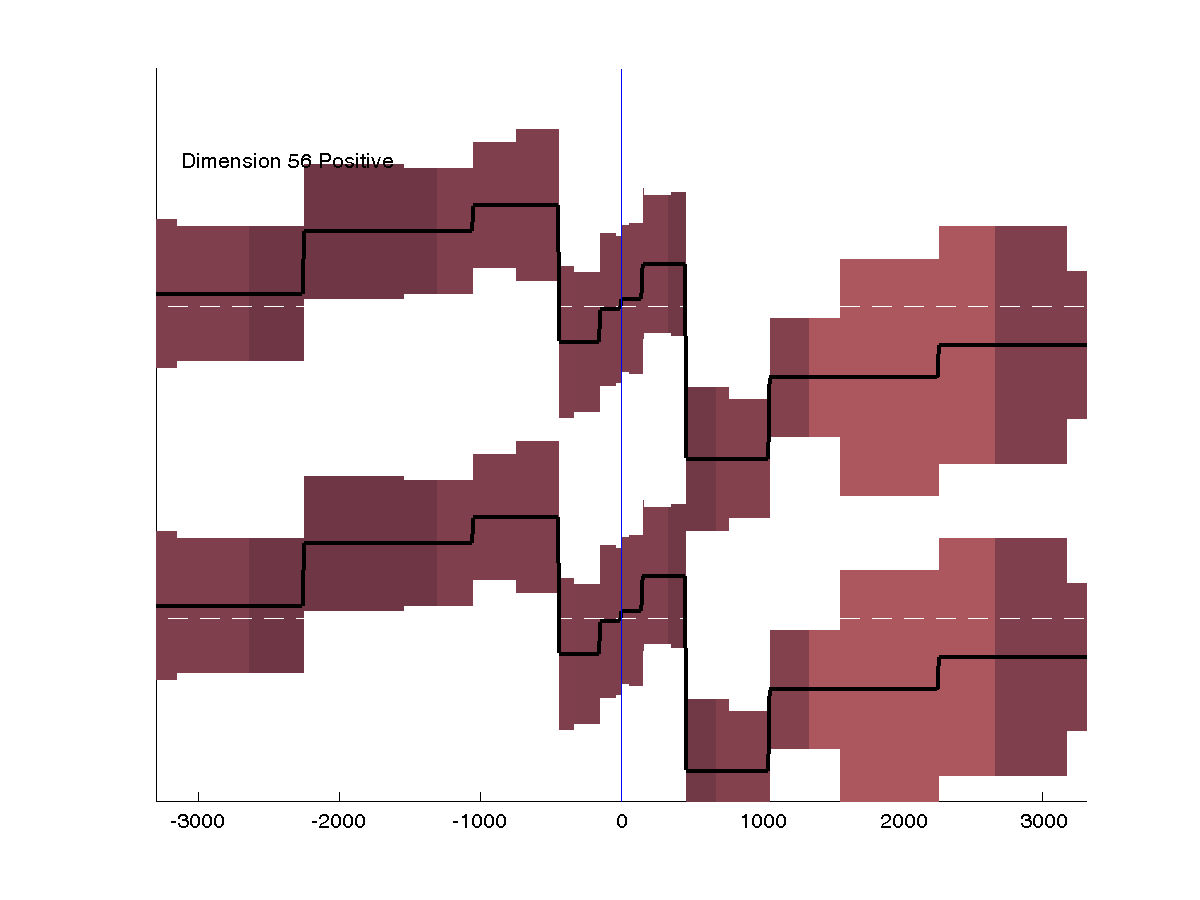

Dimension 56

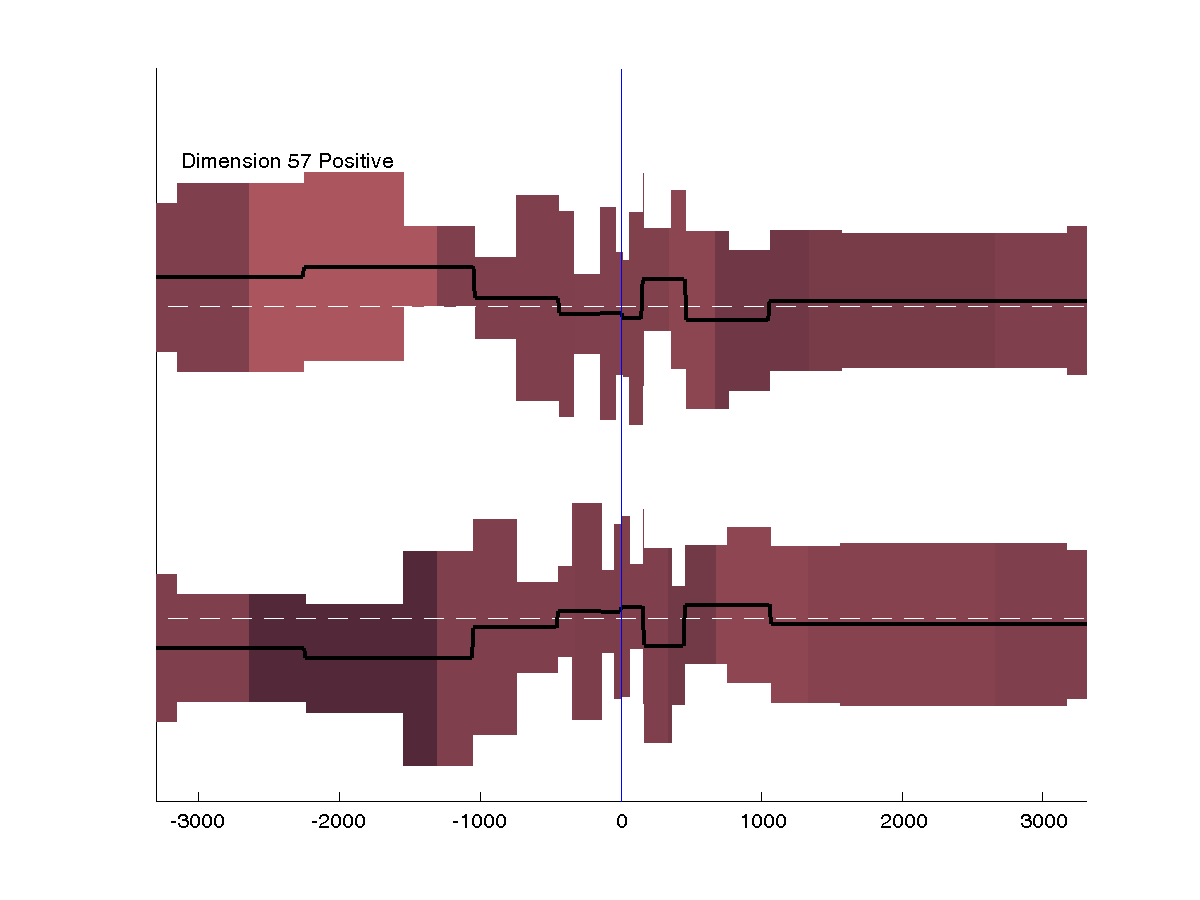

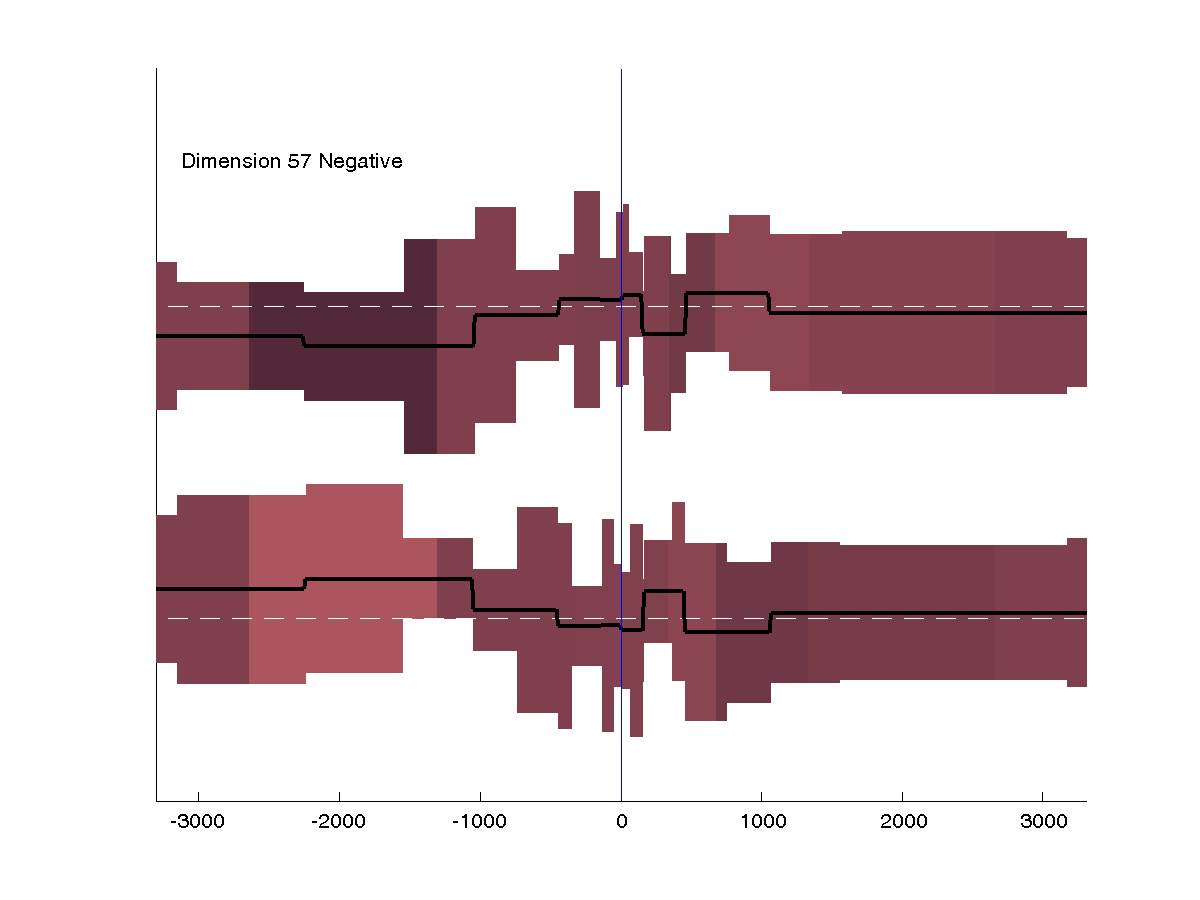

Dimension 57

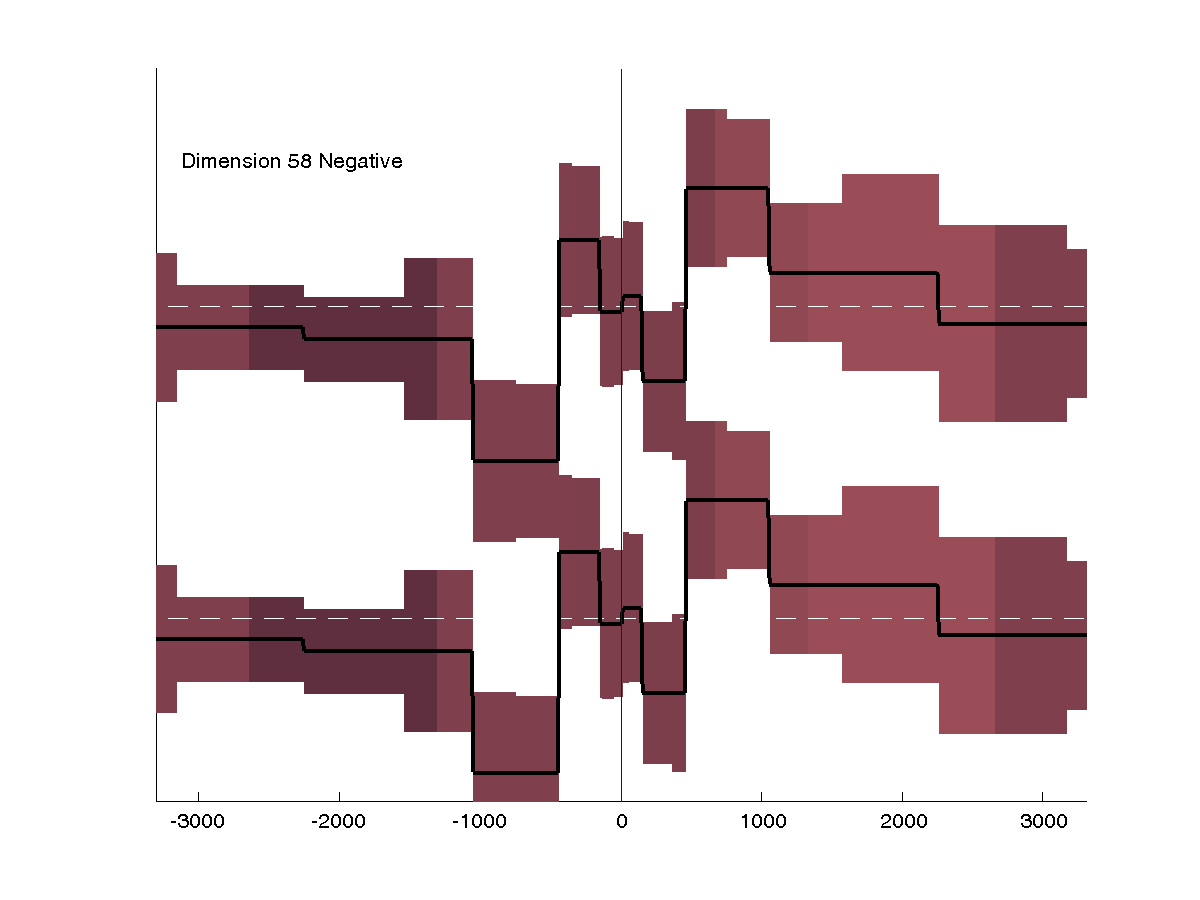

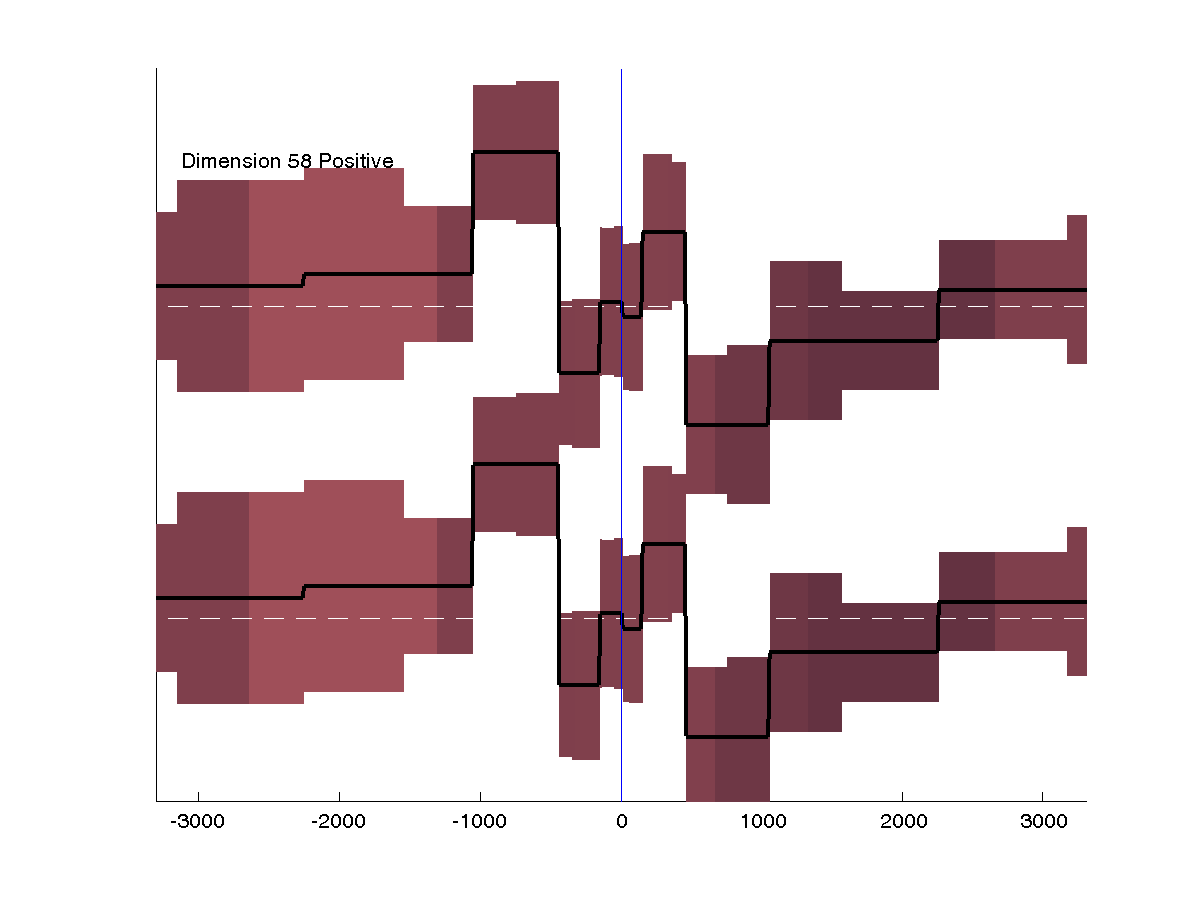

Dimension 58

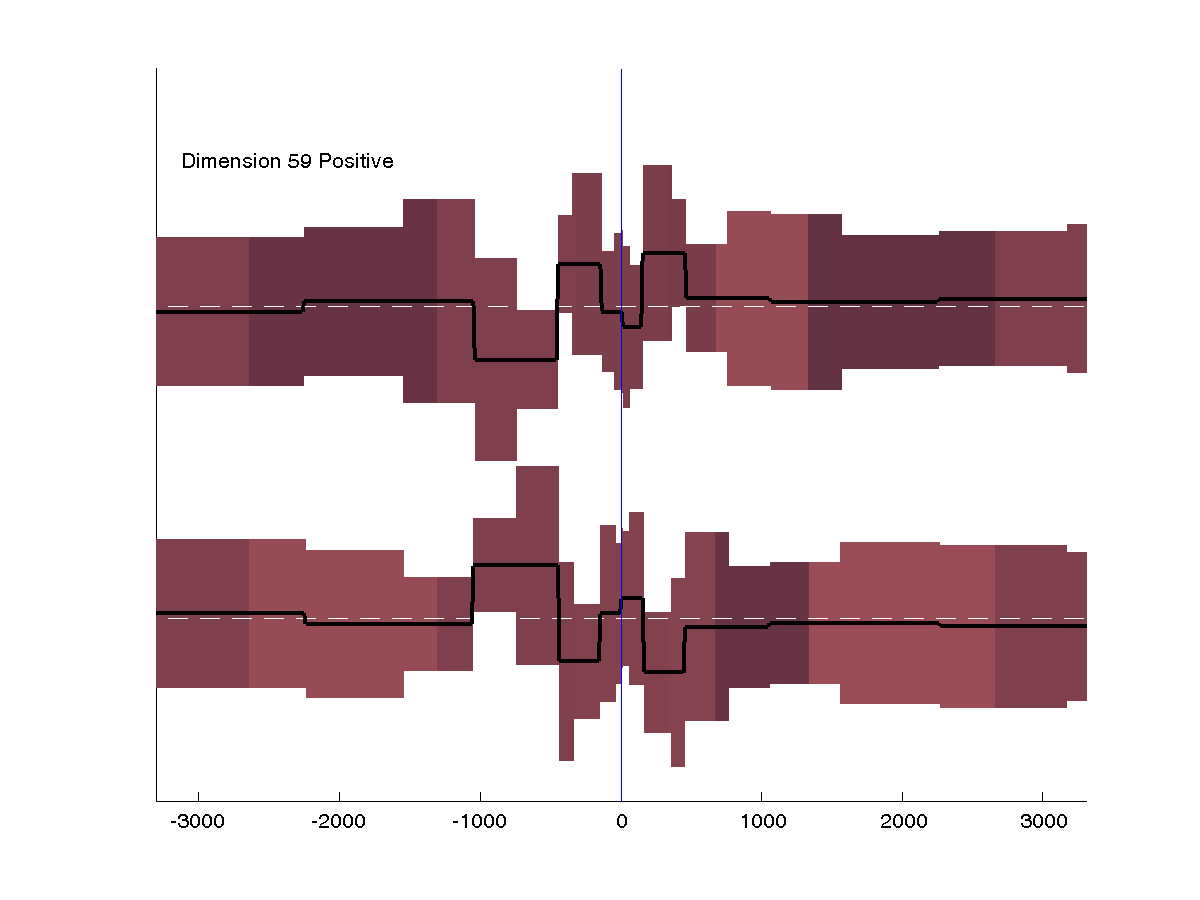

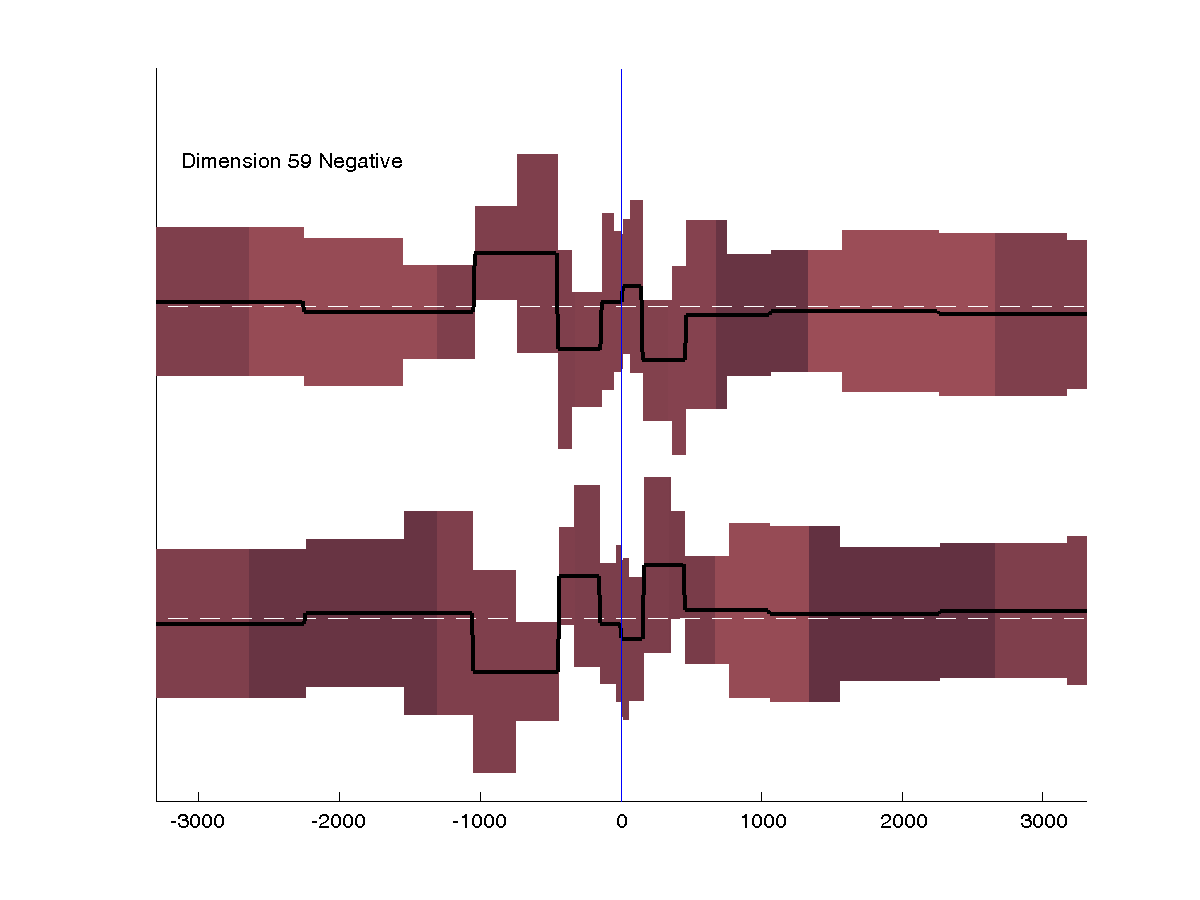

Dimension 59

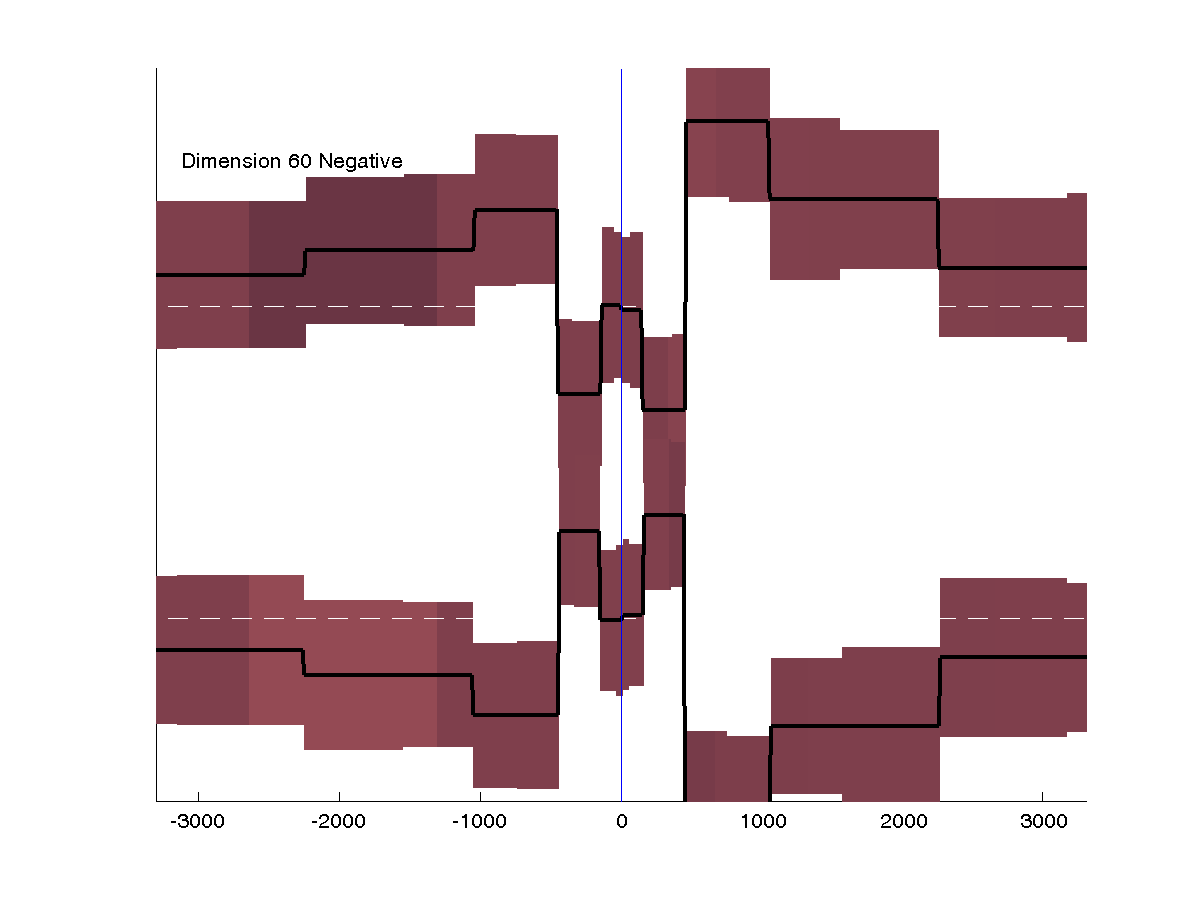

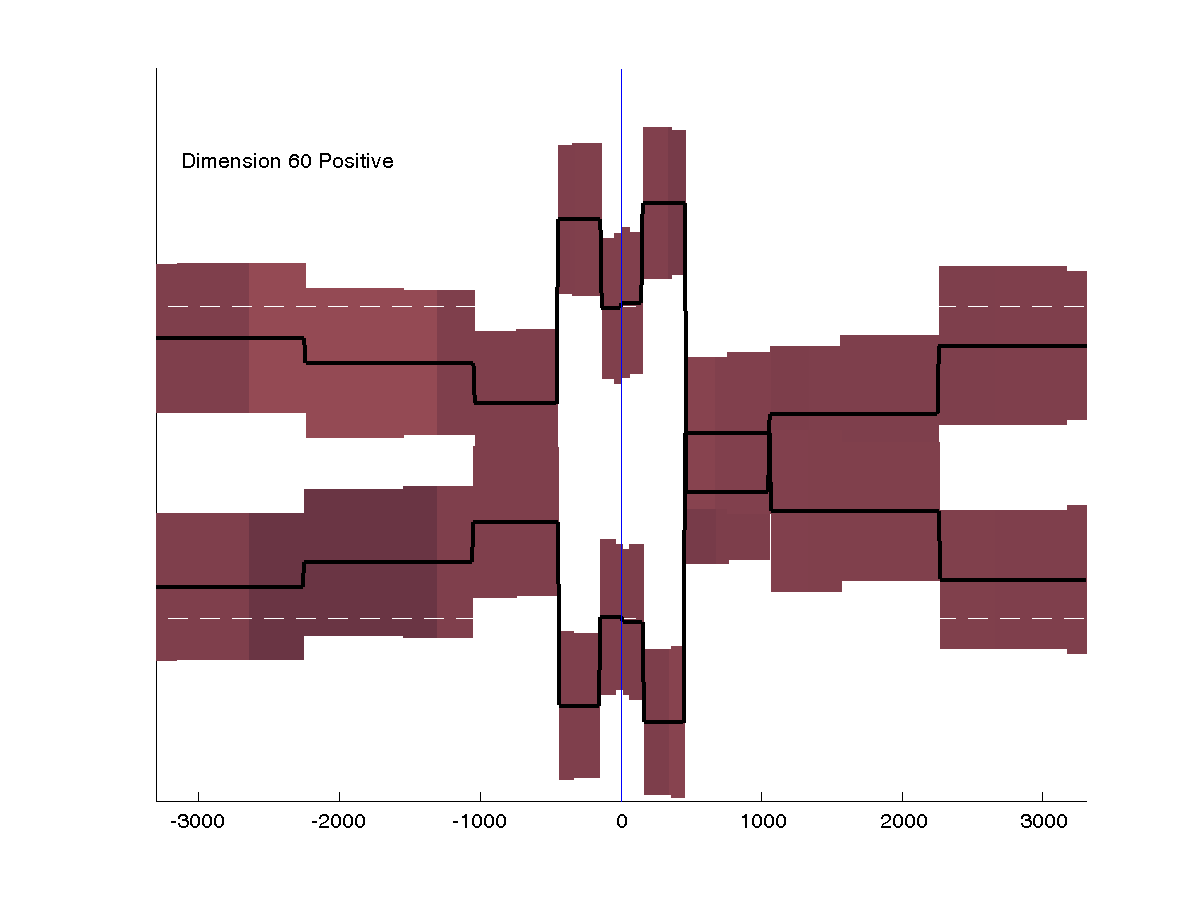

Dimension 60

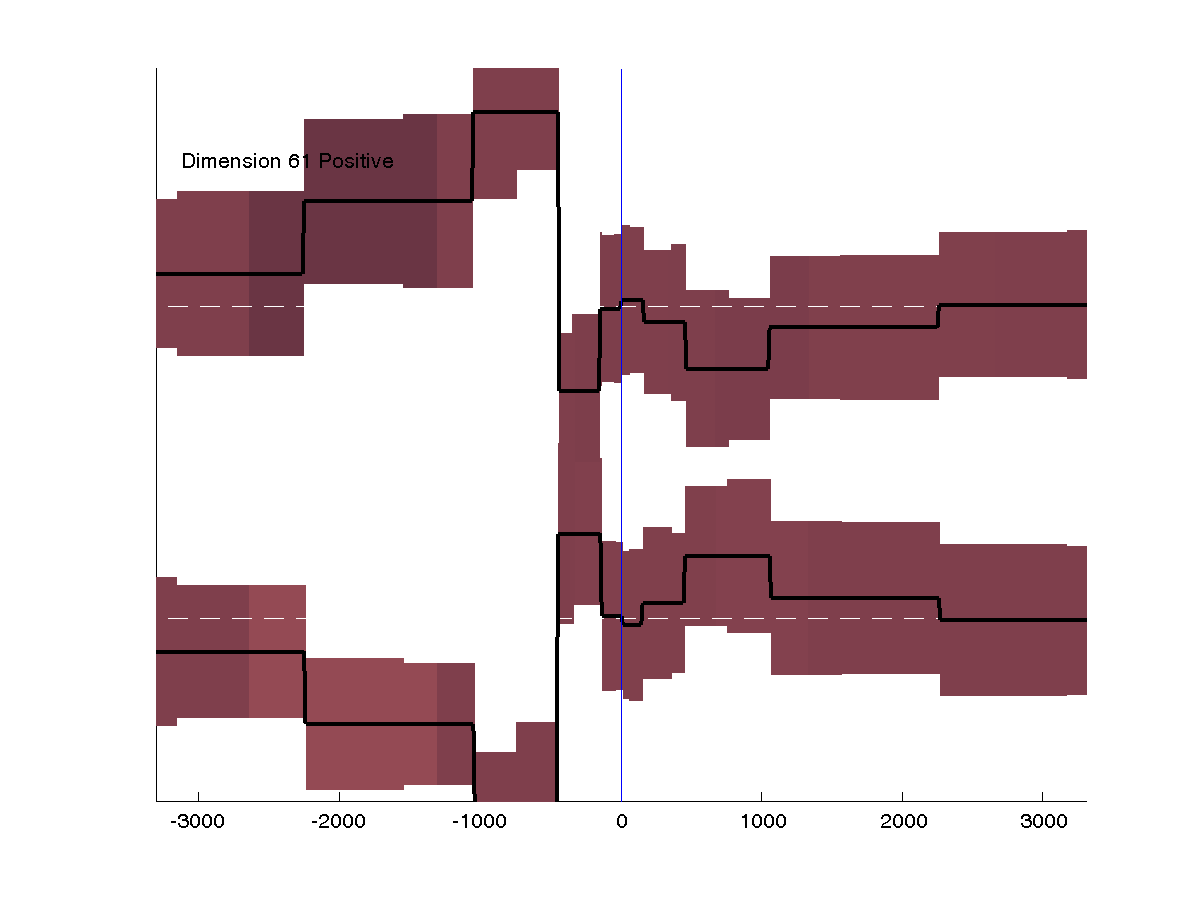

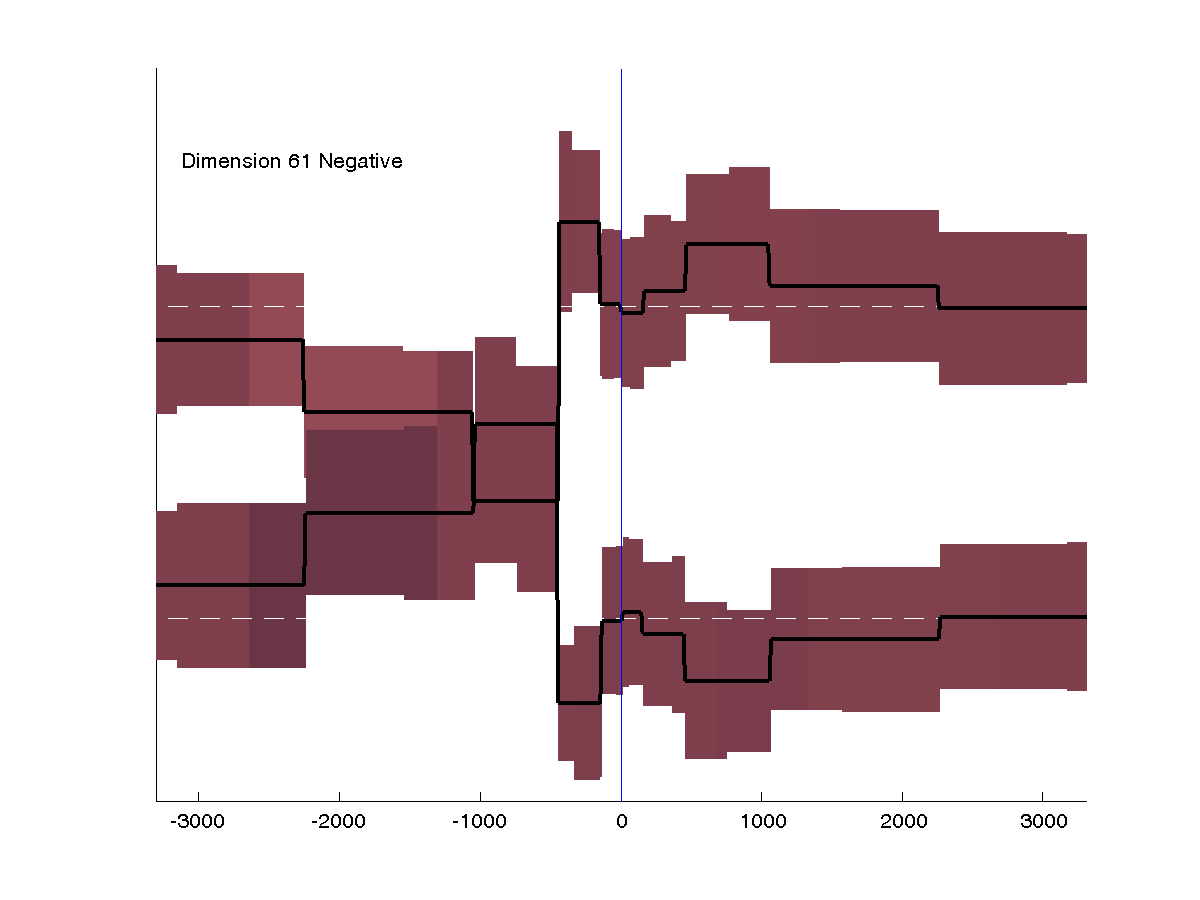

Dimension 61

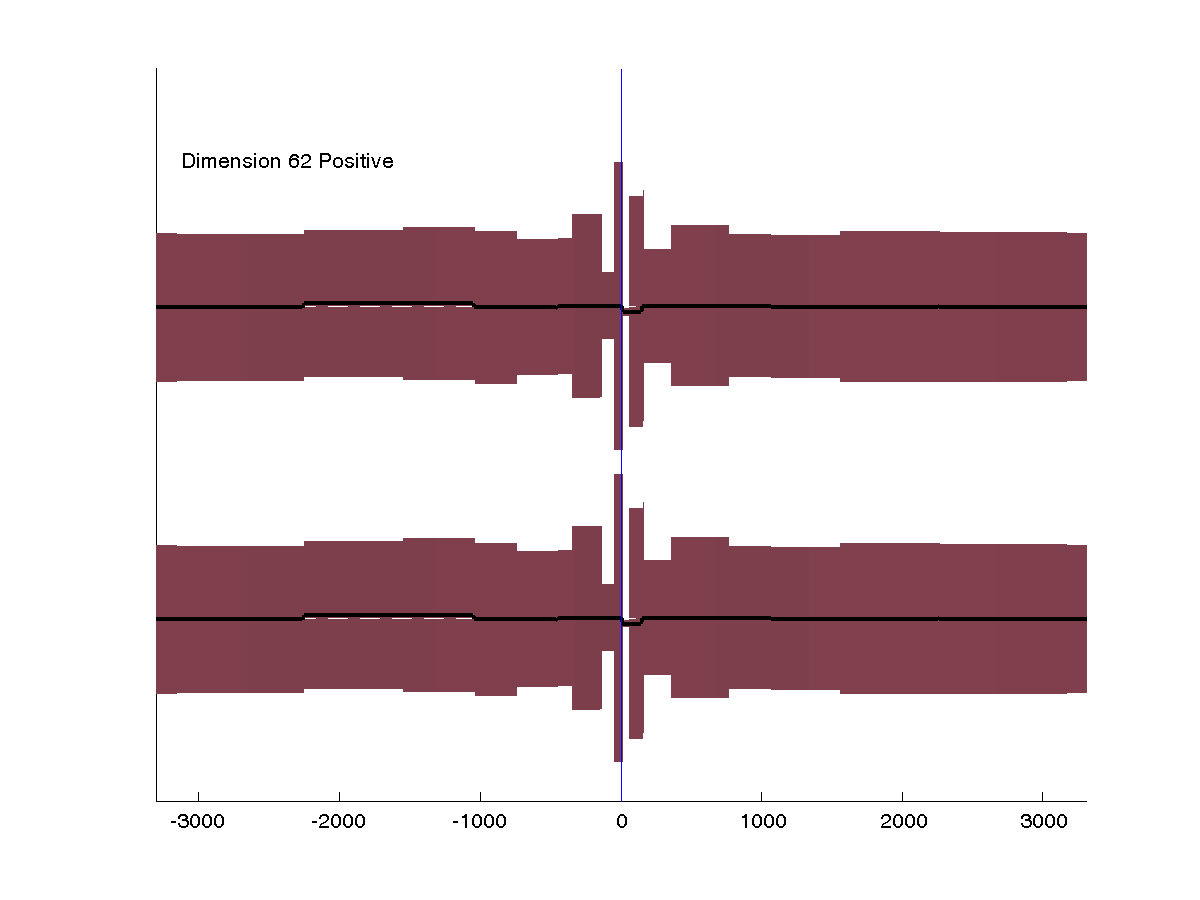

Dimension 62

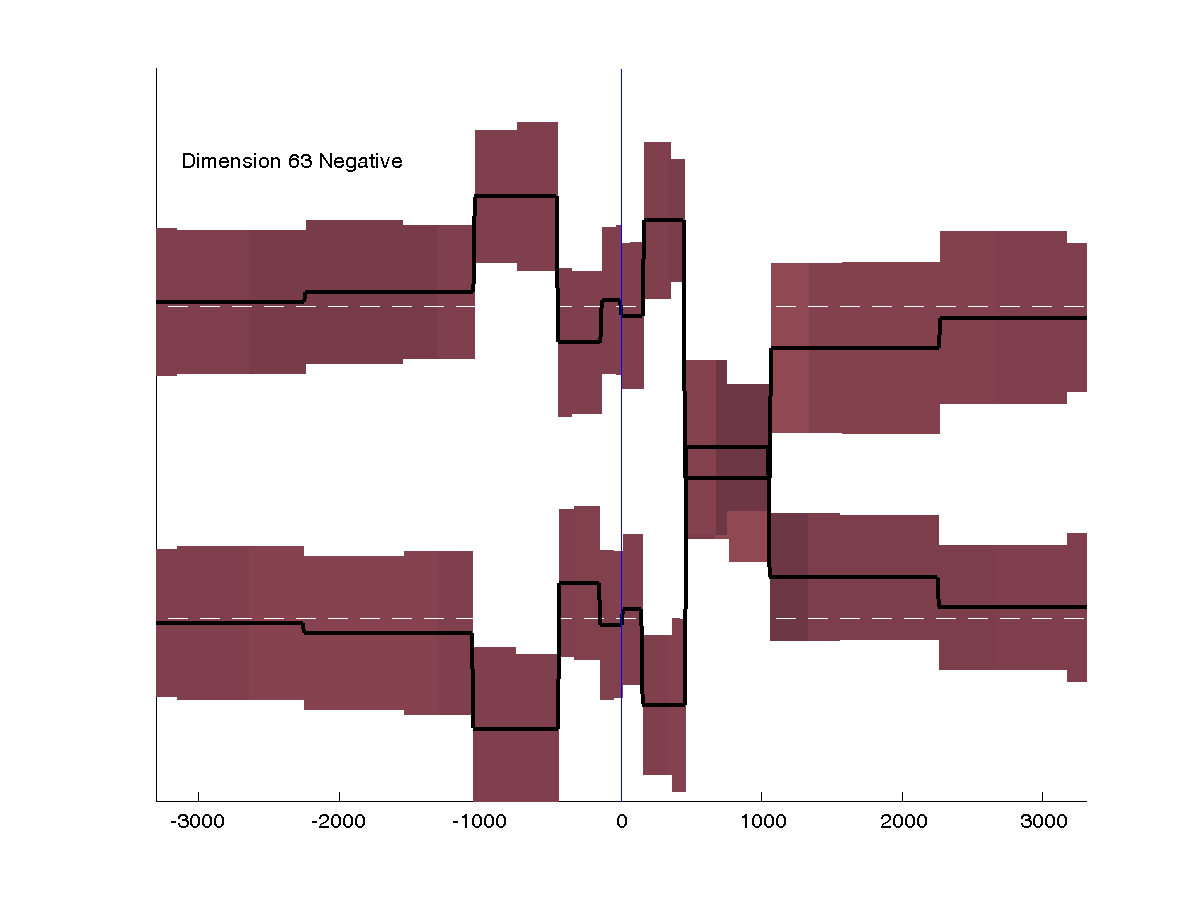

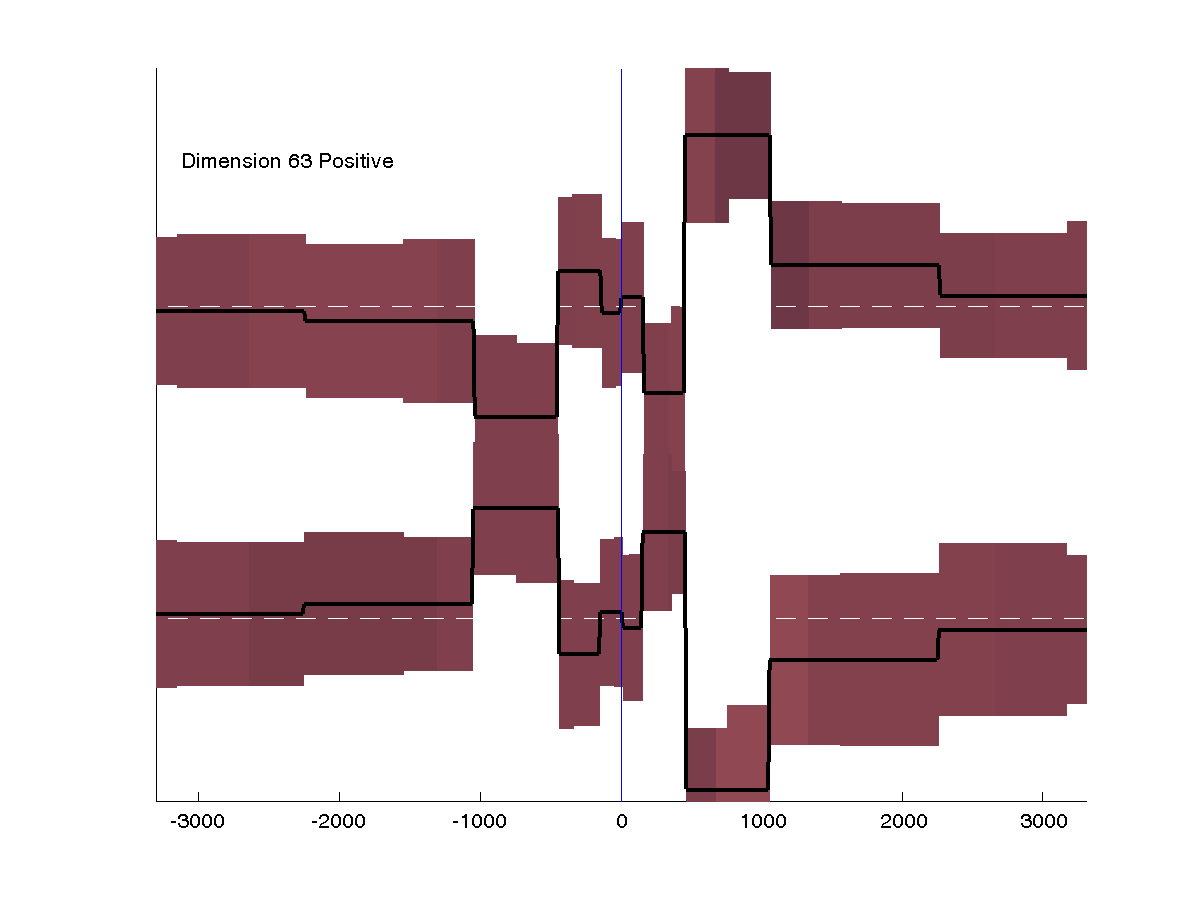

Dimension 63

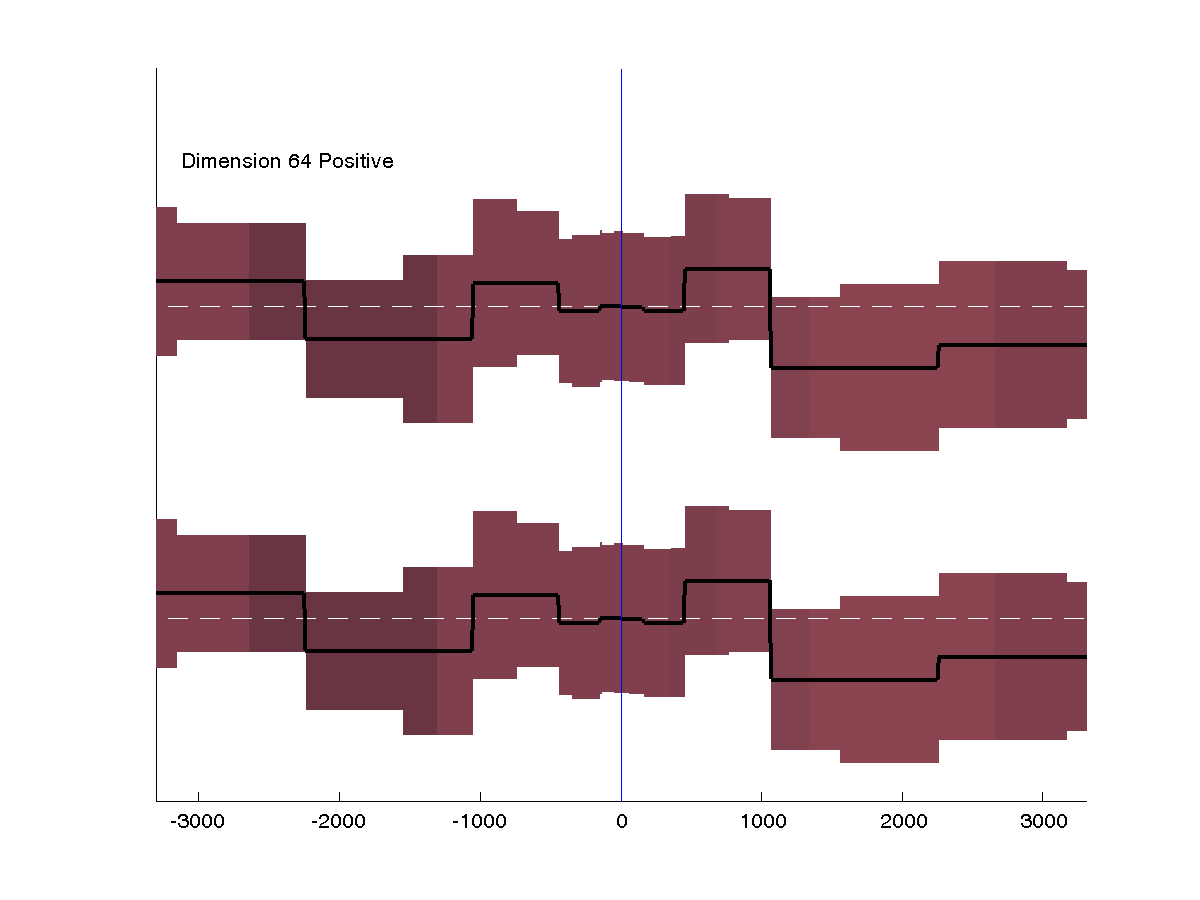

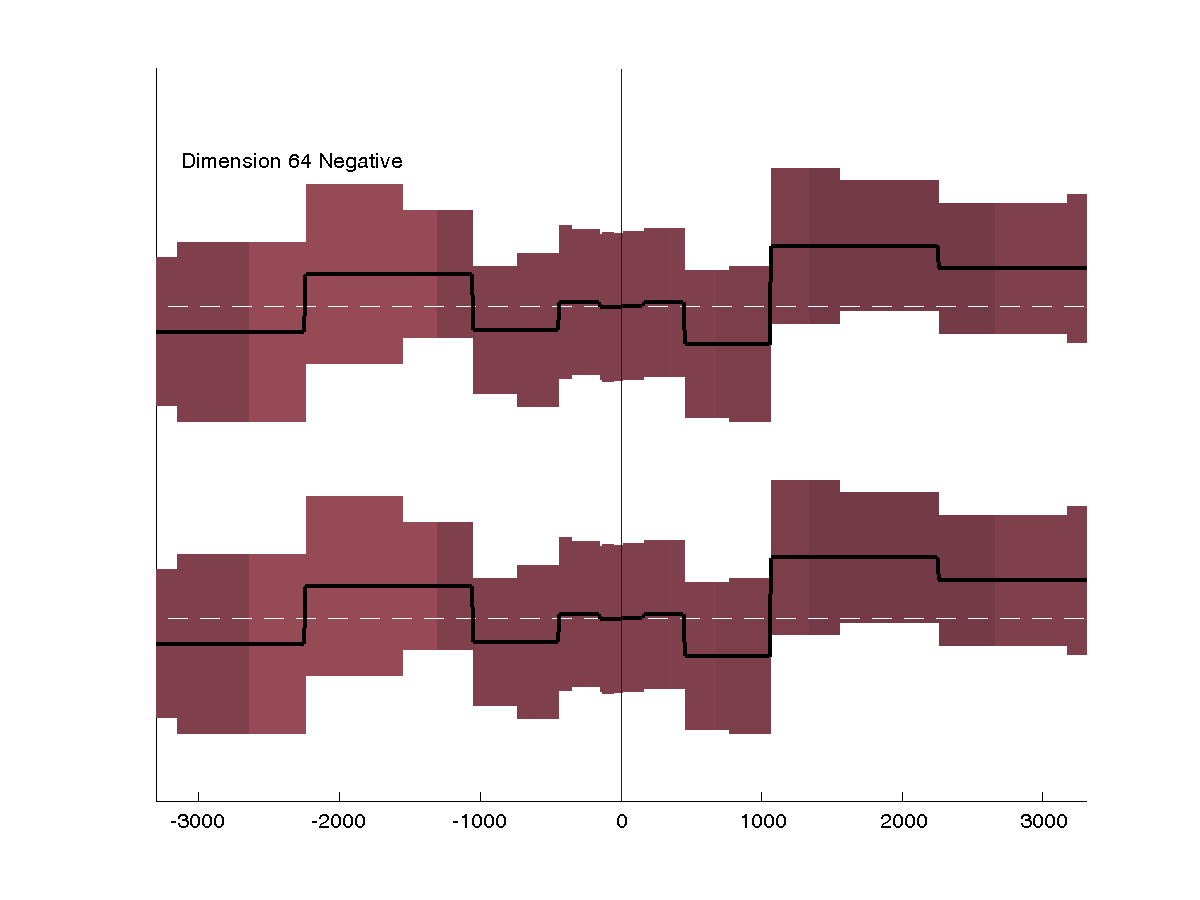

Dimension 64

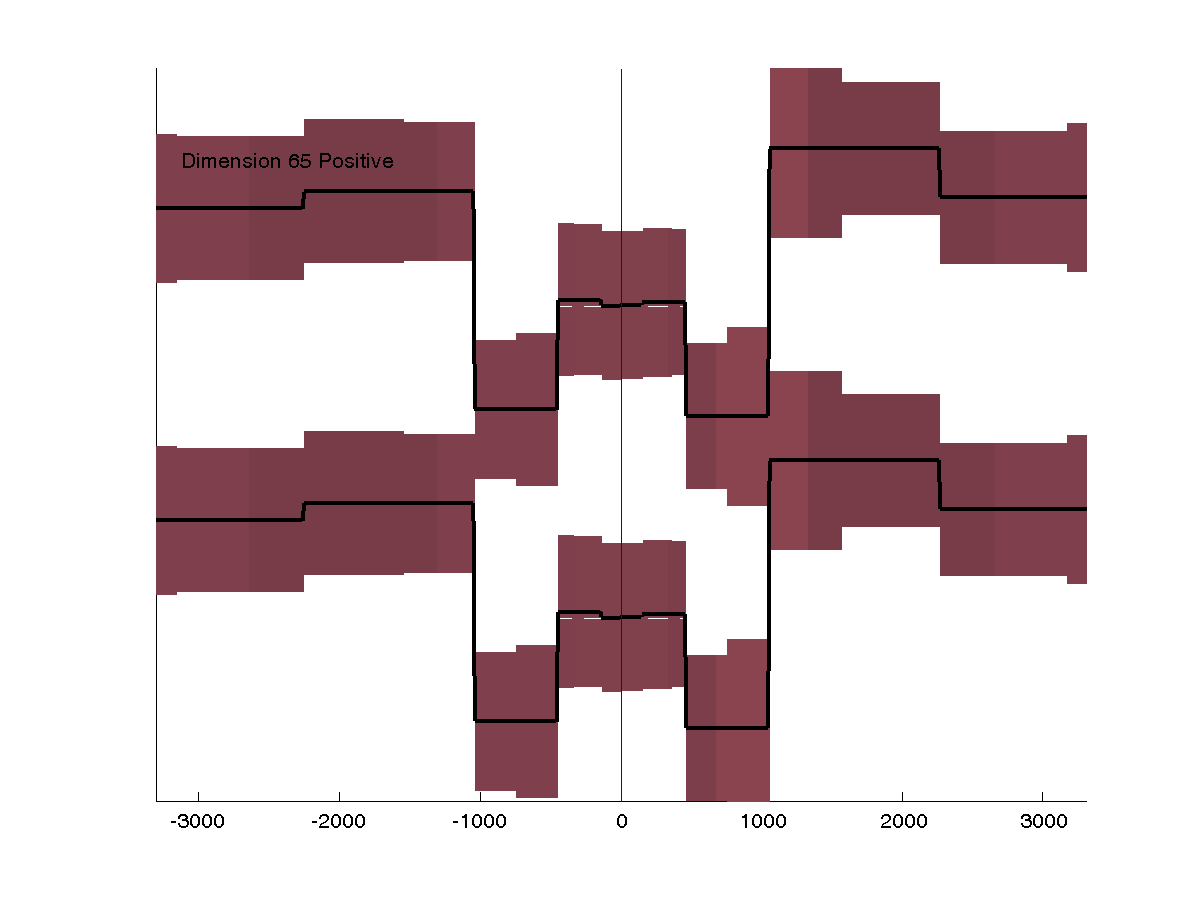

Dimension 65

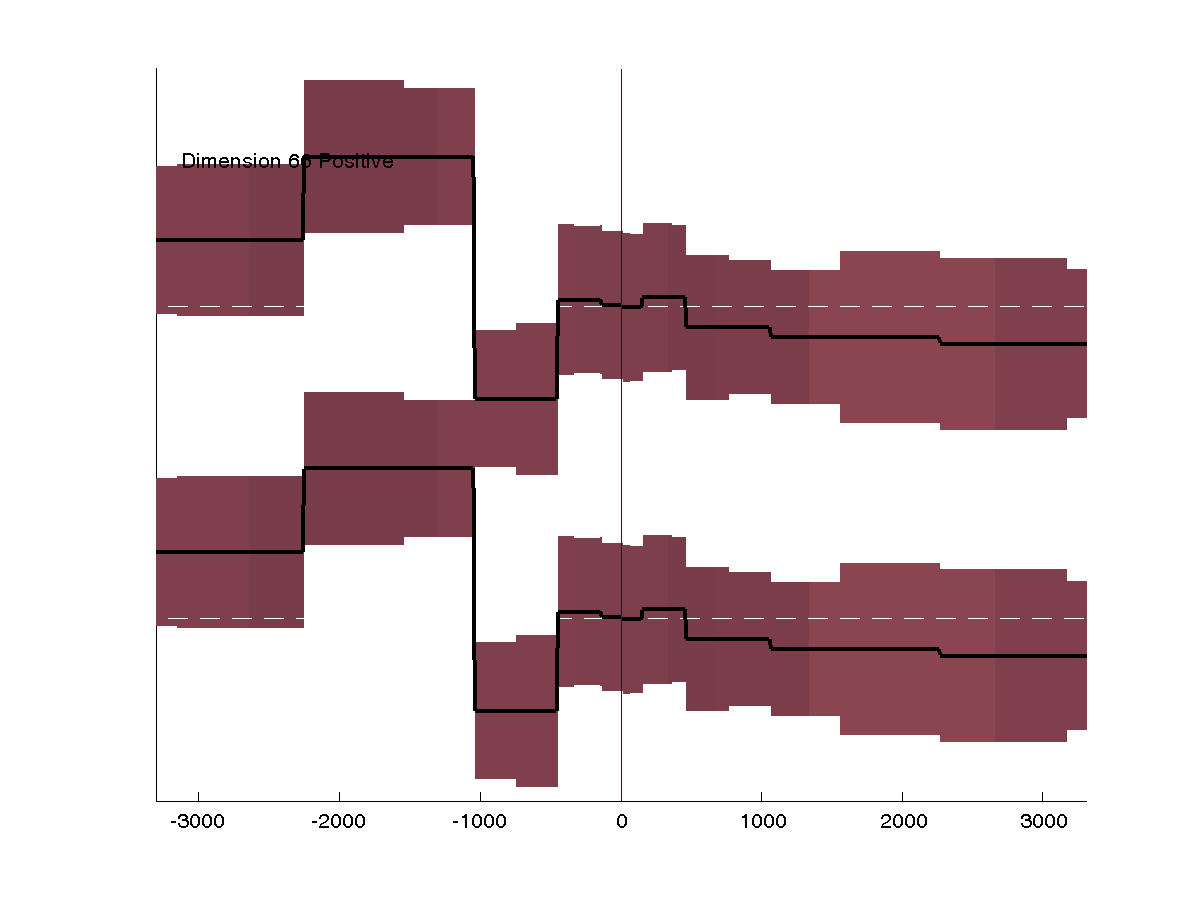

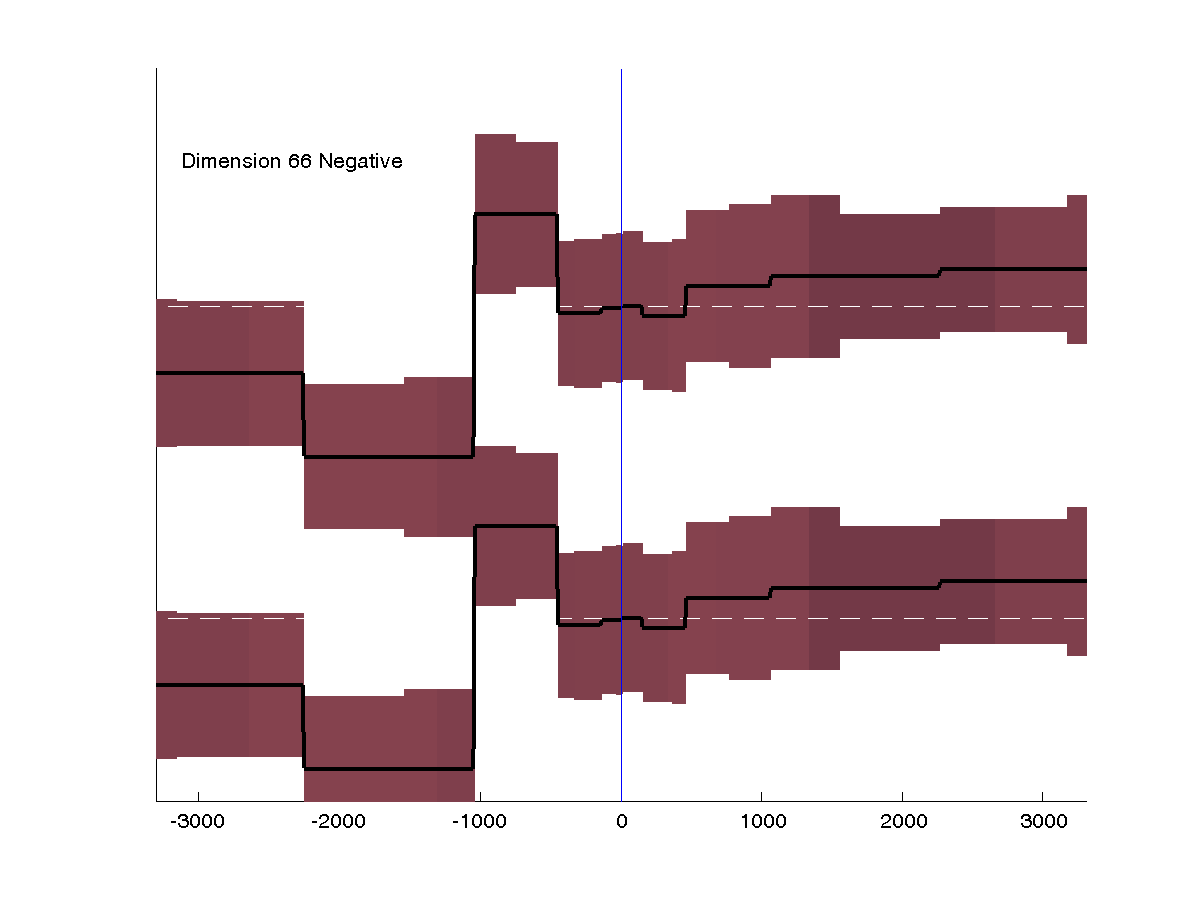

Dimension 66

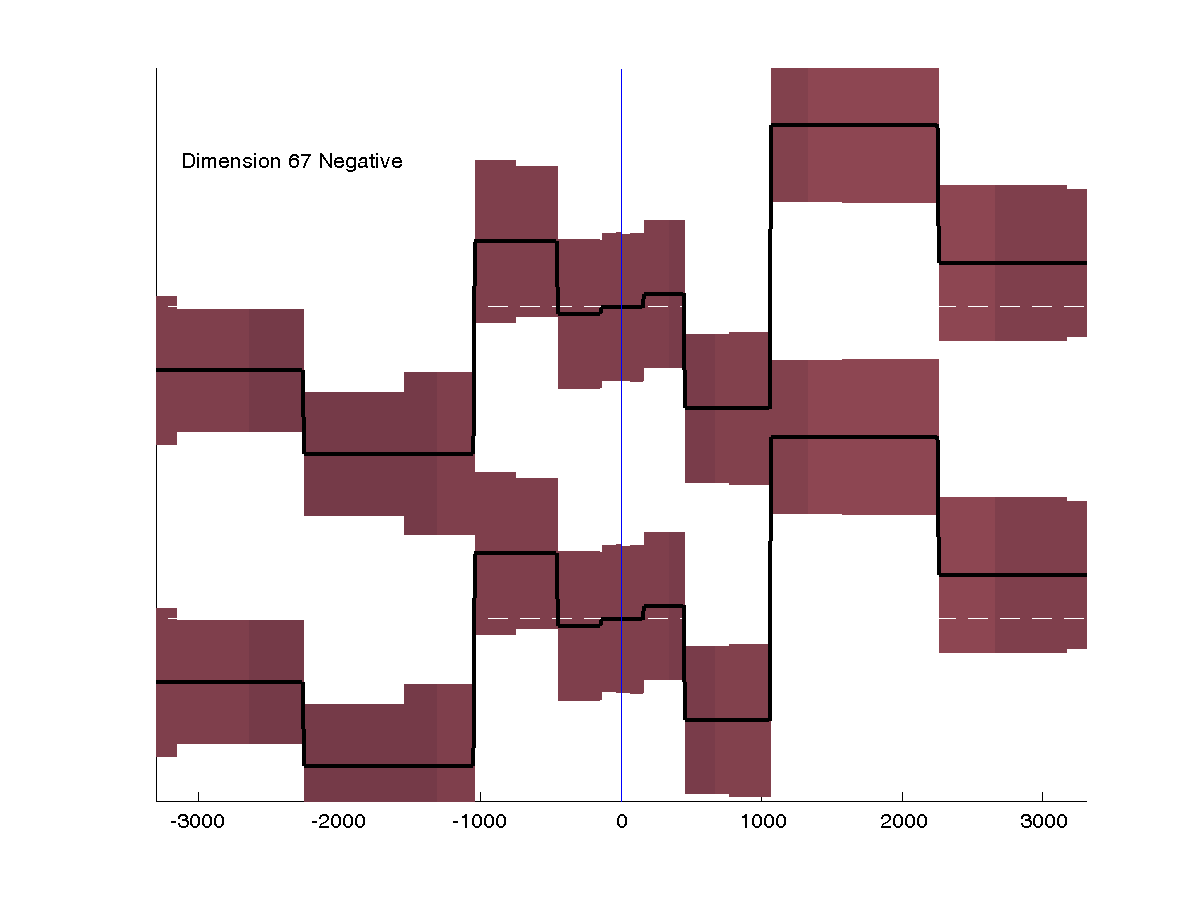

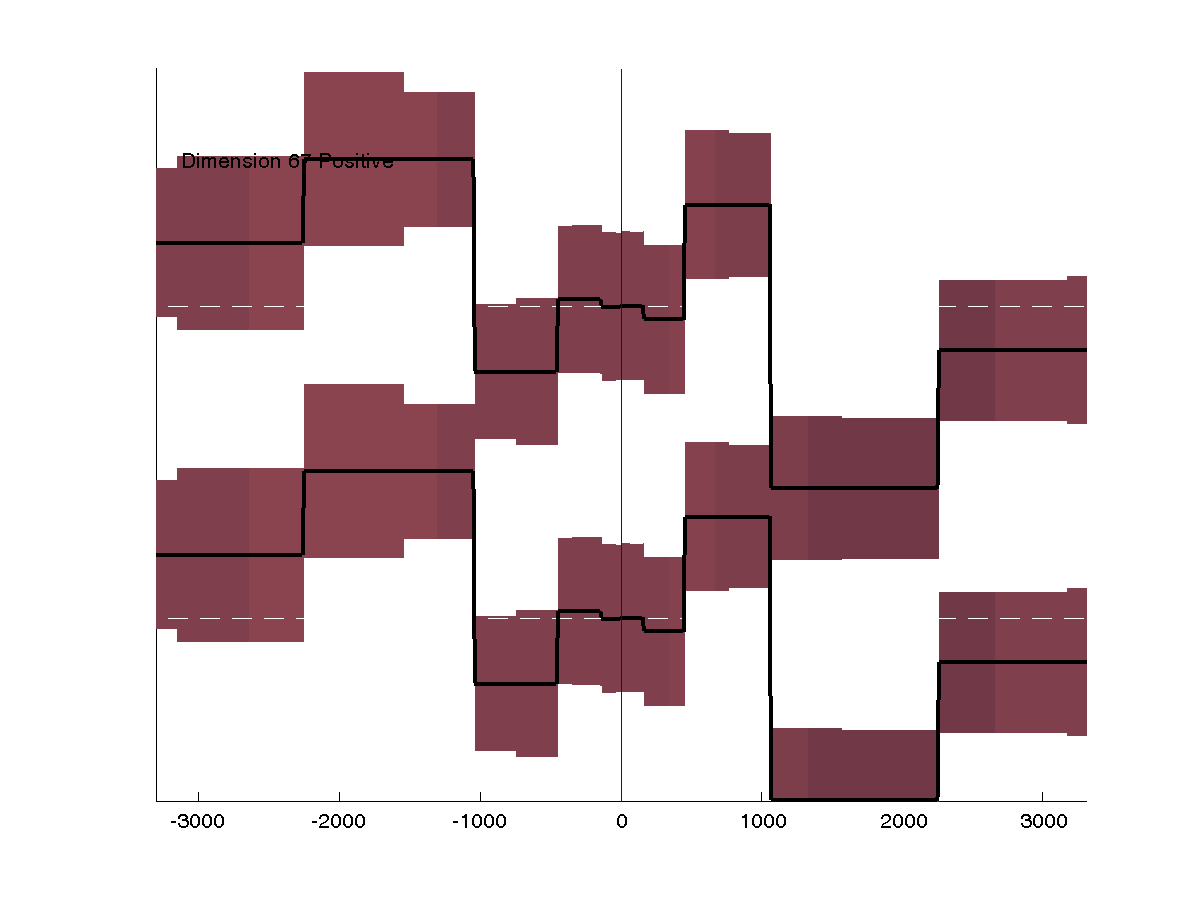

Dimension 67

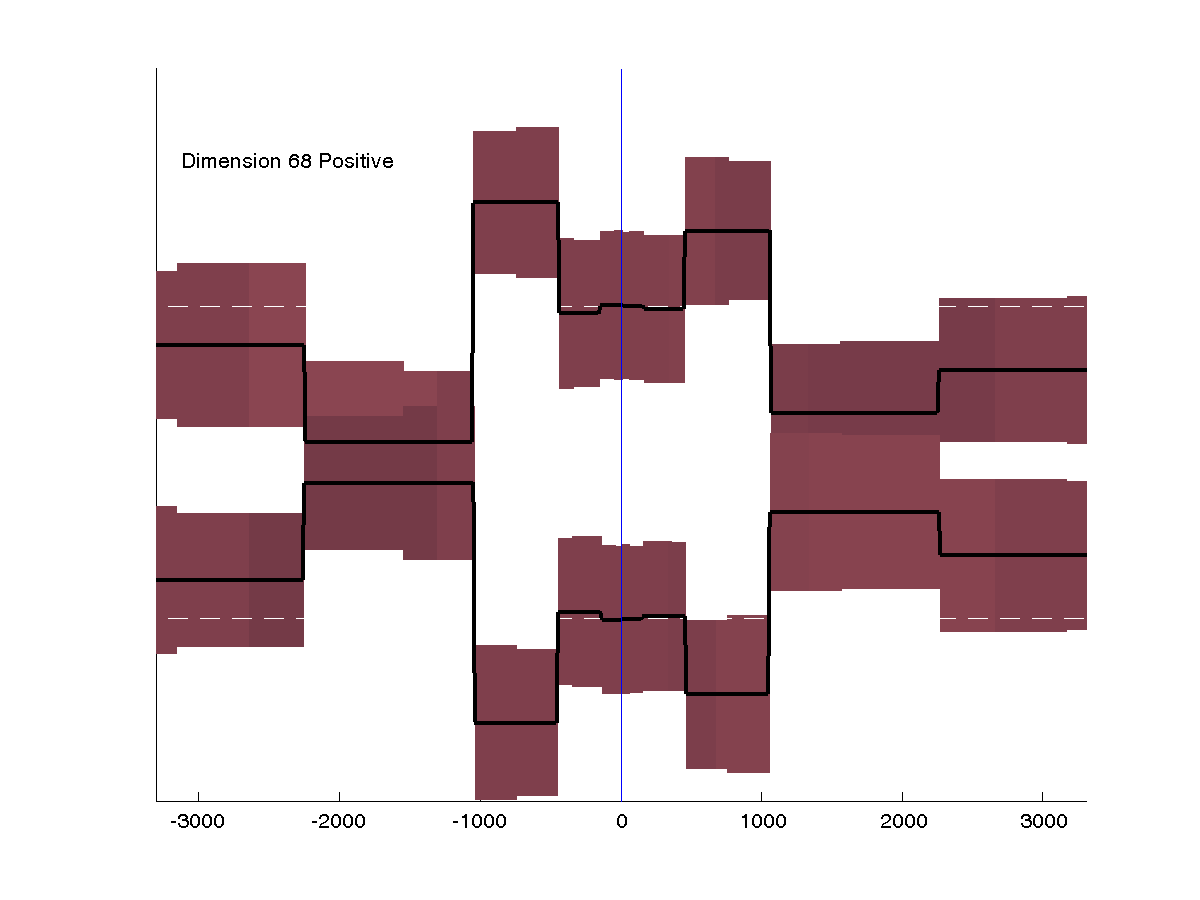

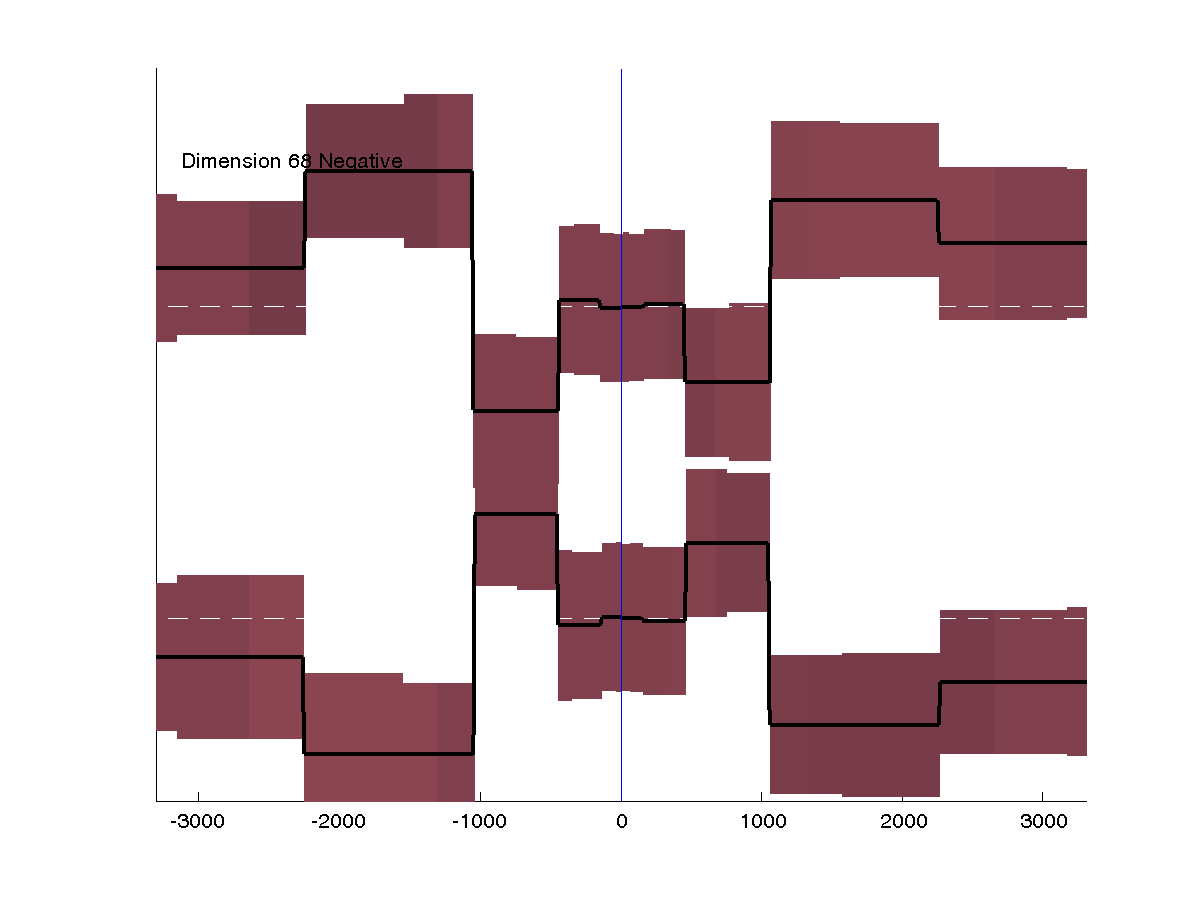

Dimension 68

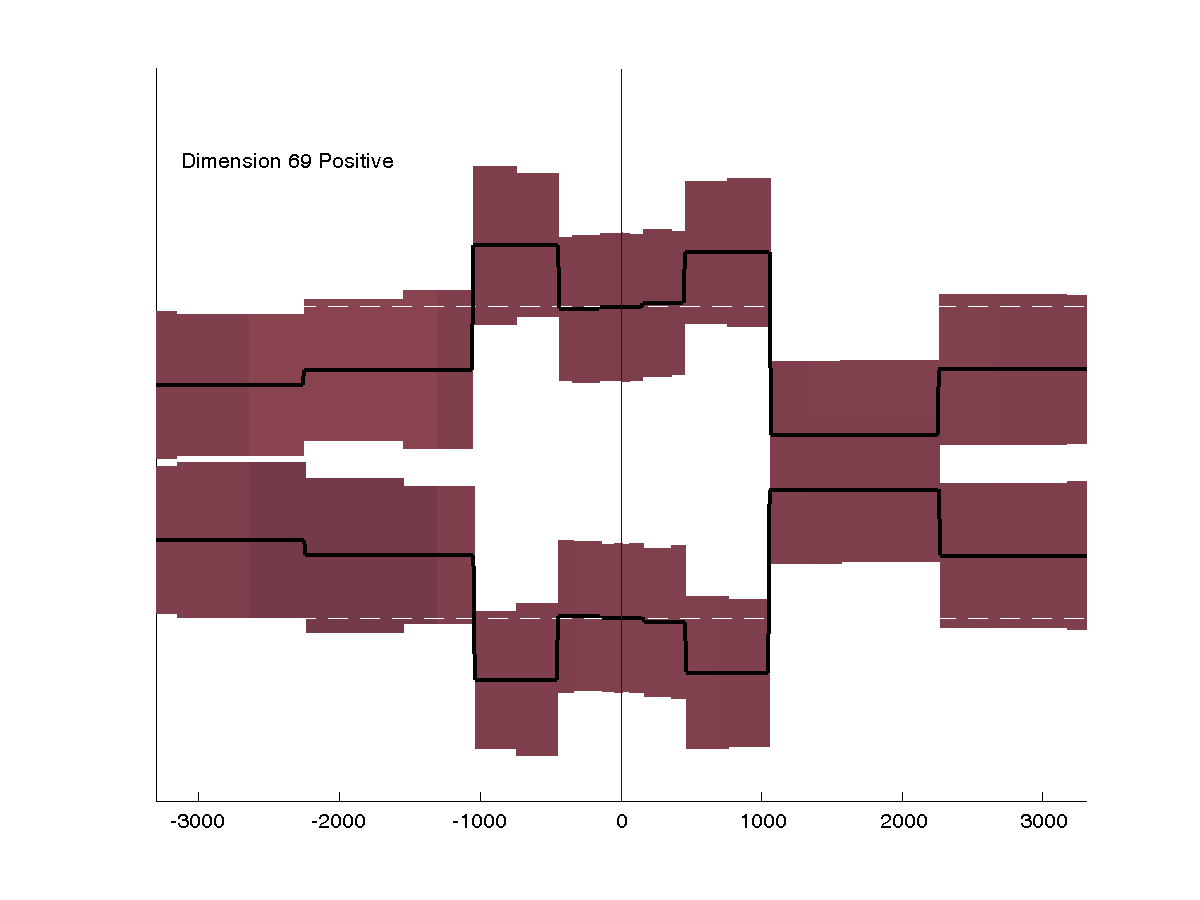

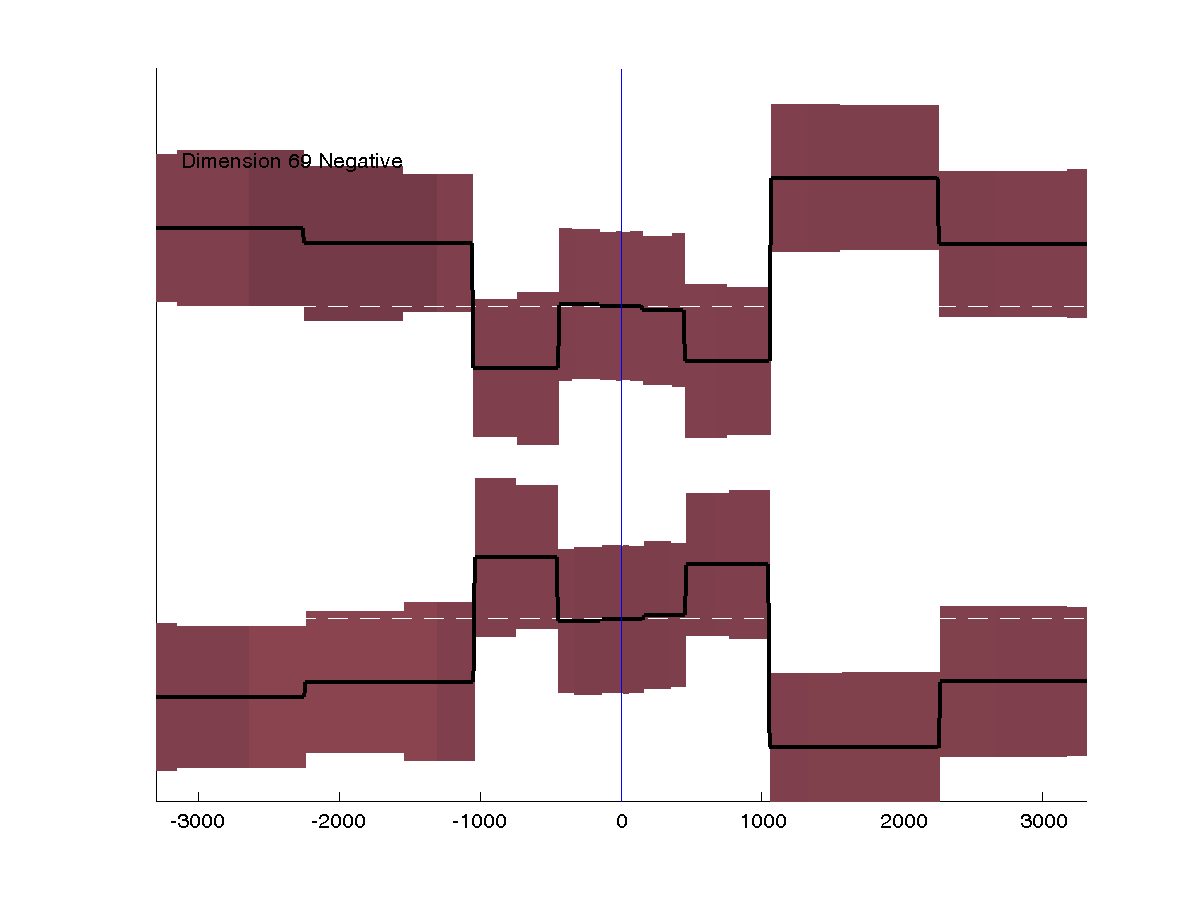

Dimension 69

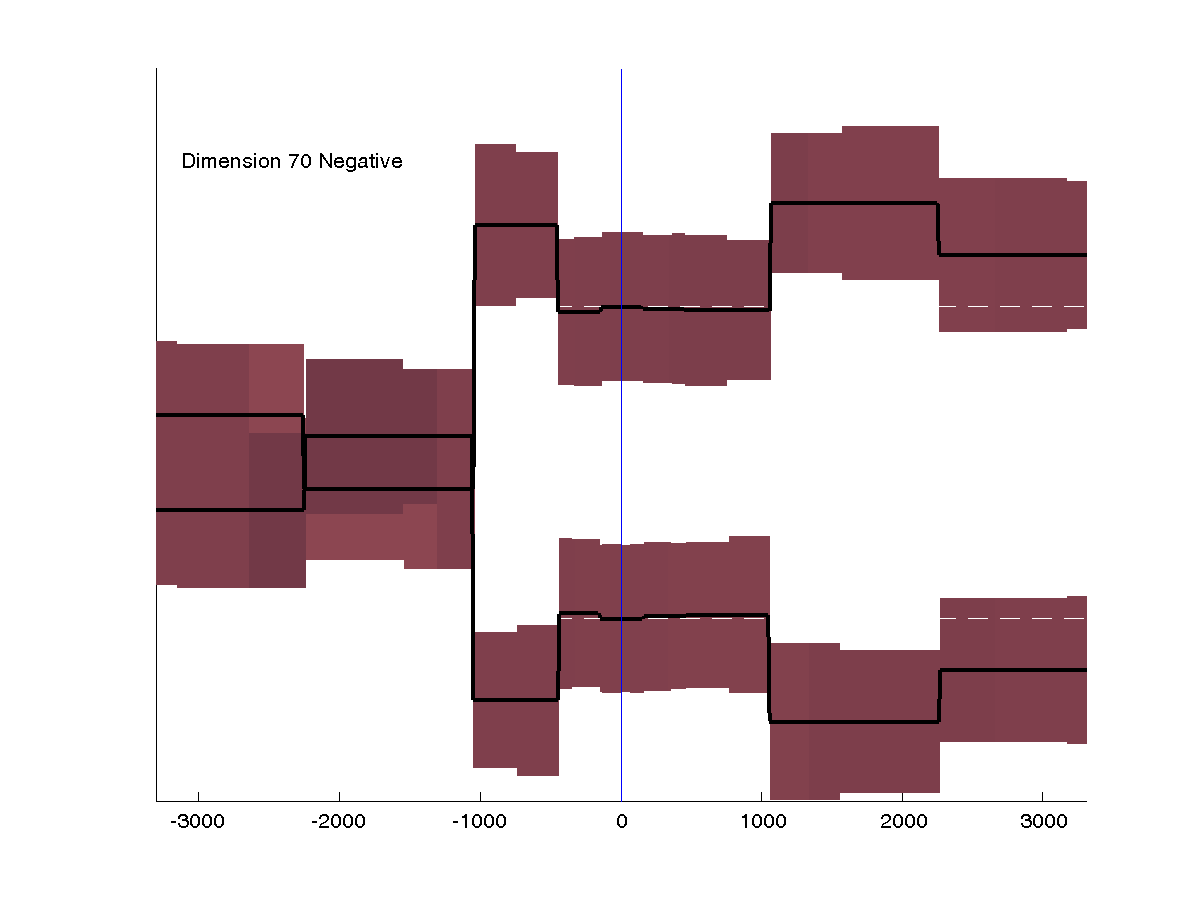

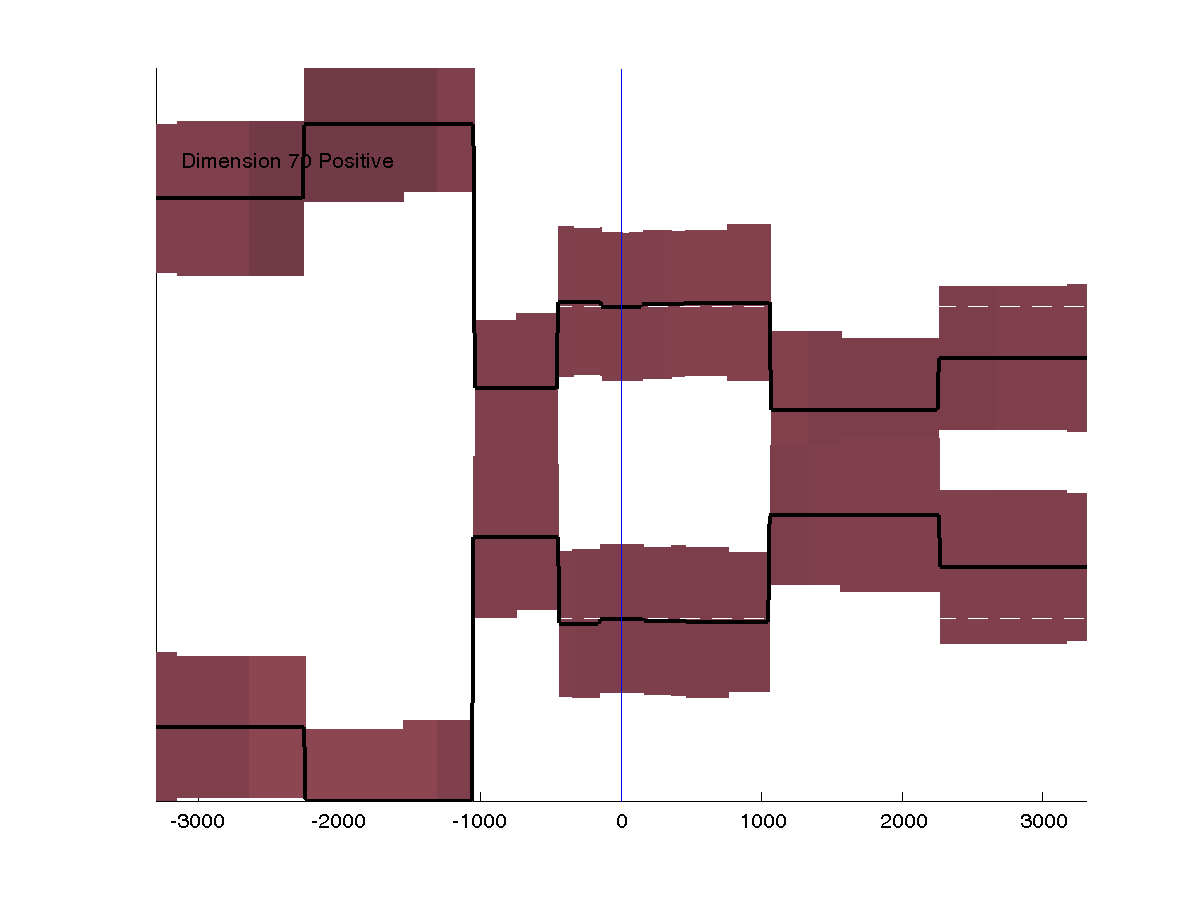

Dimension 70

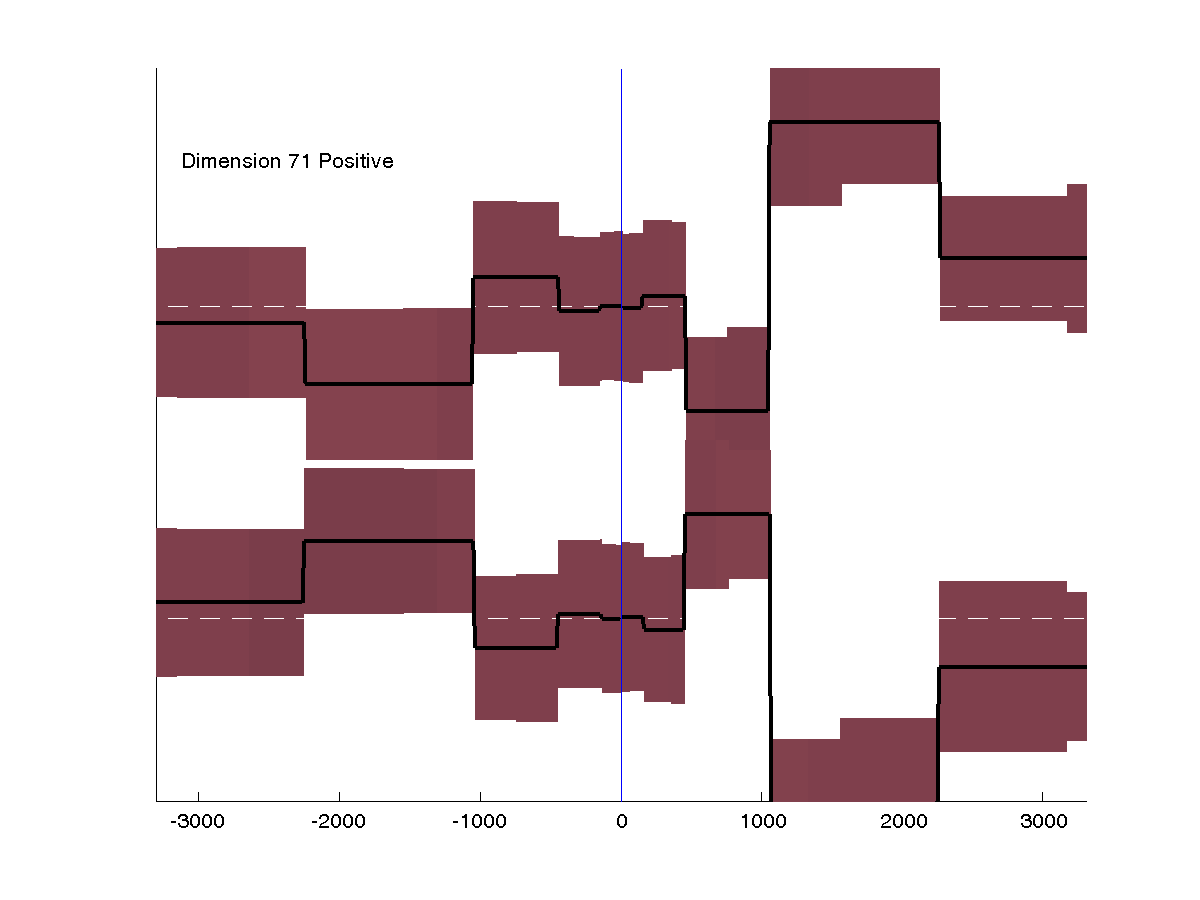

Dimension 71

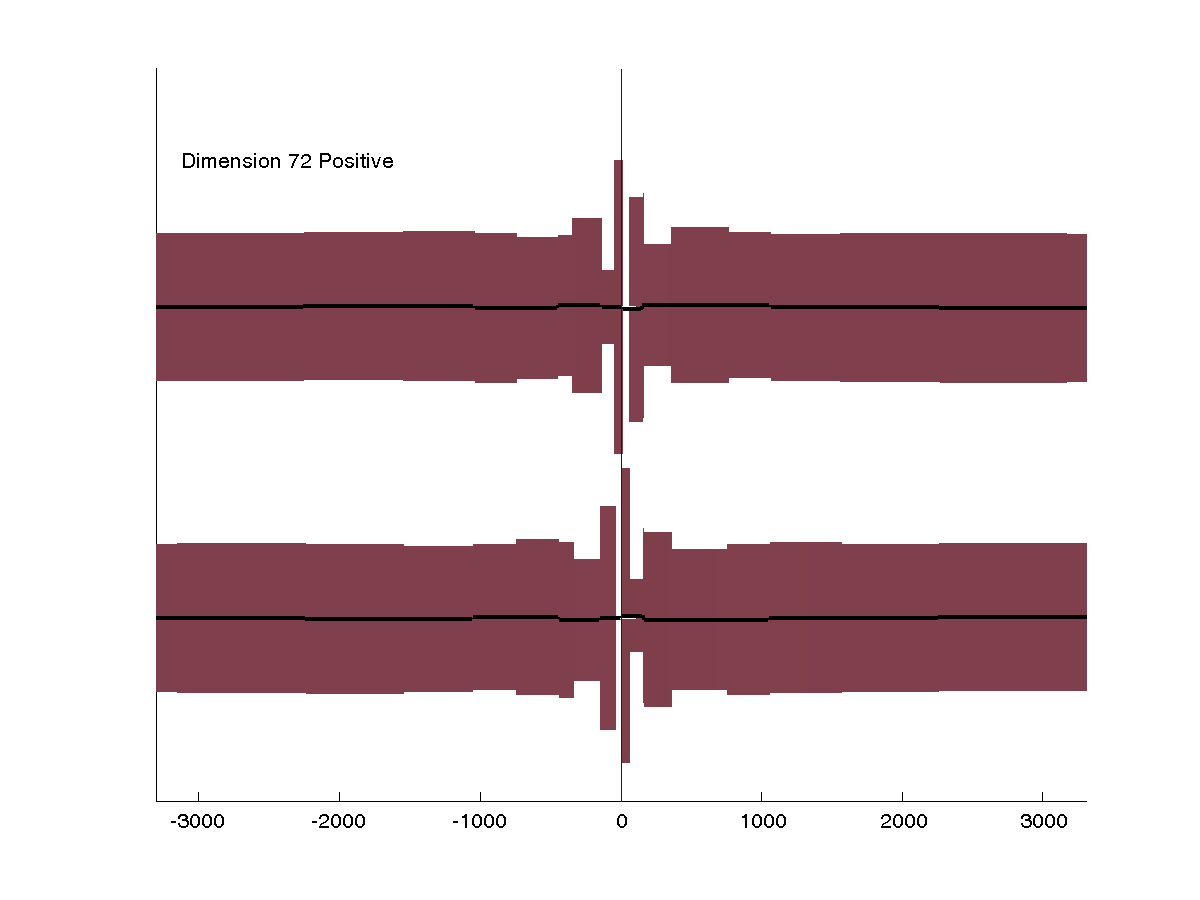

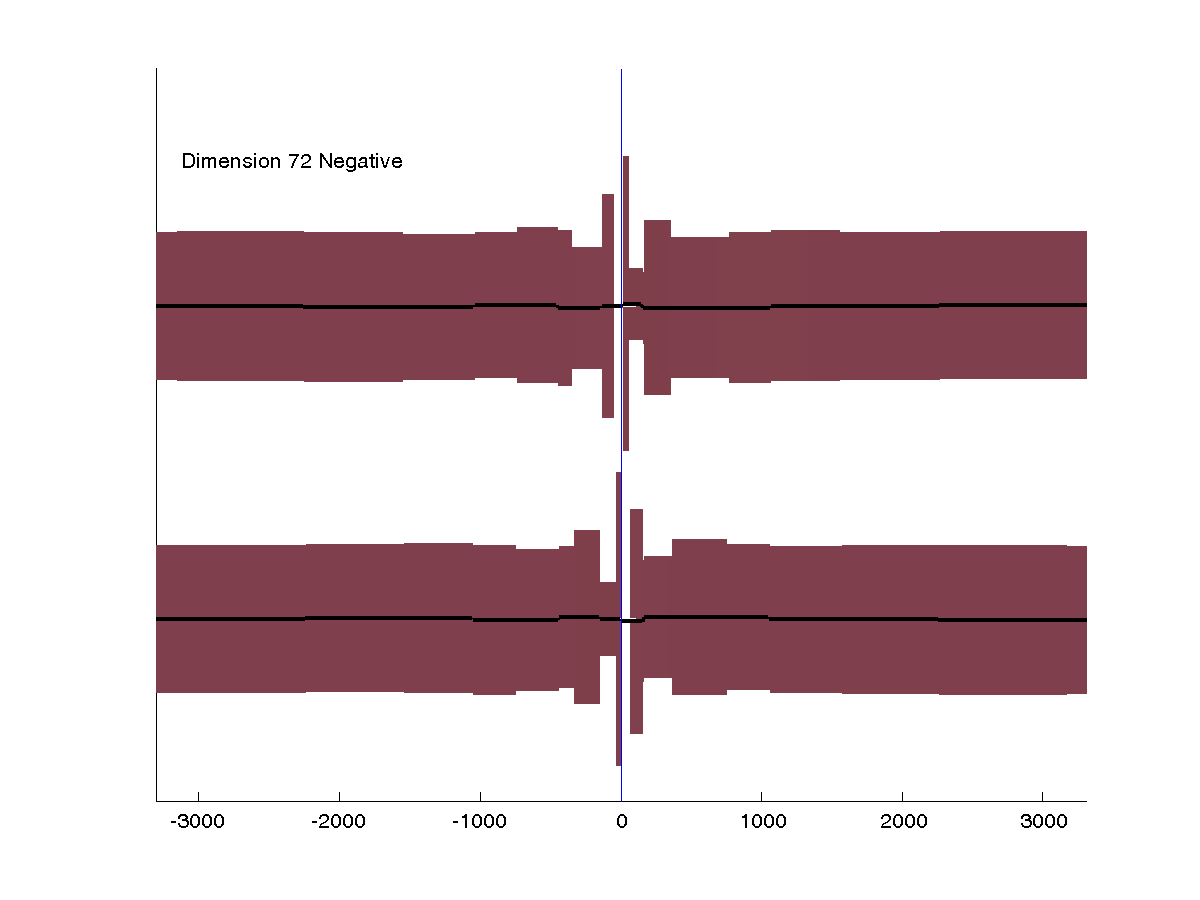

Dimension 72

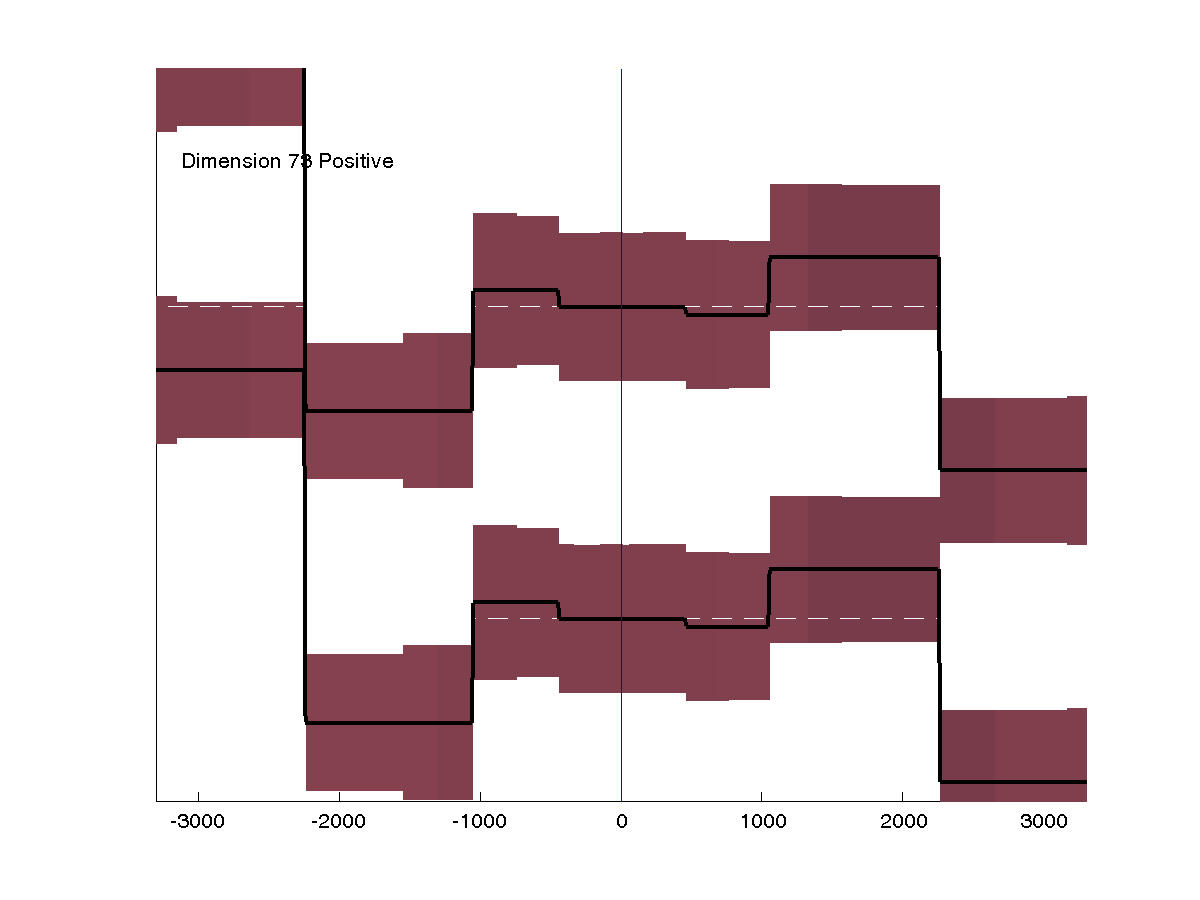

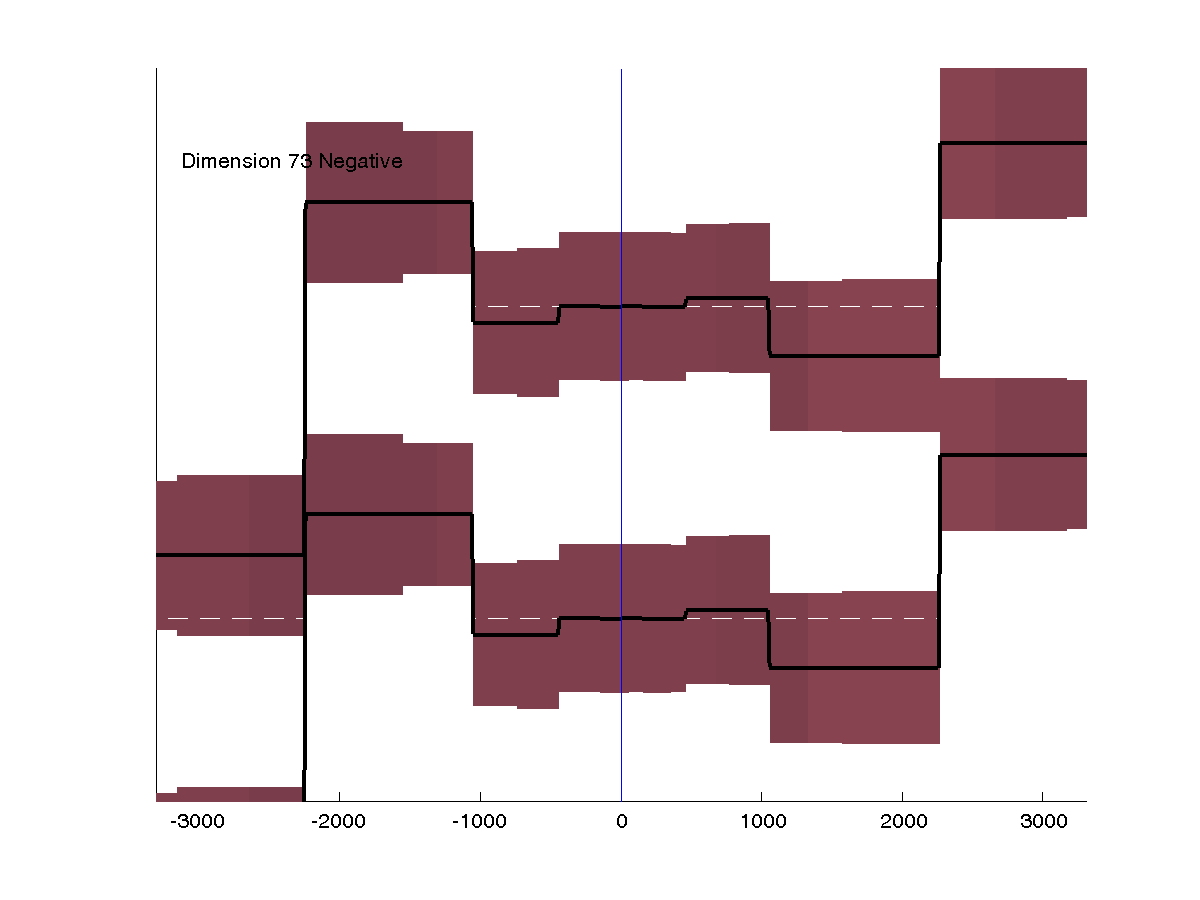

Dimension 73

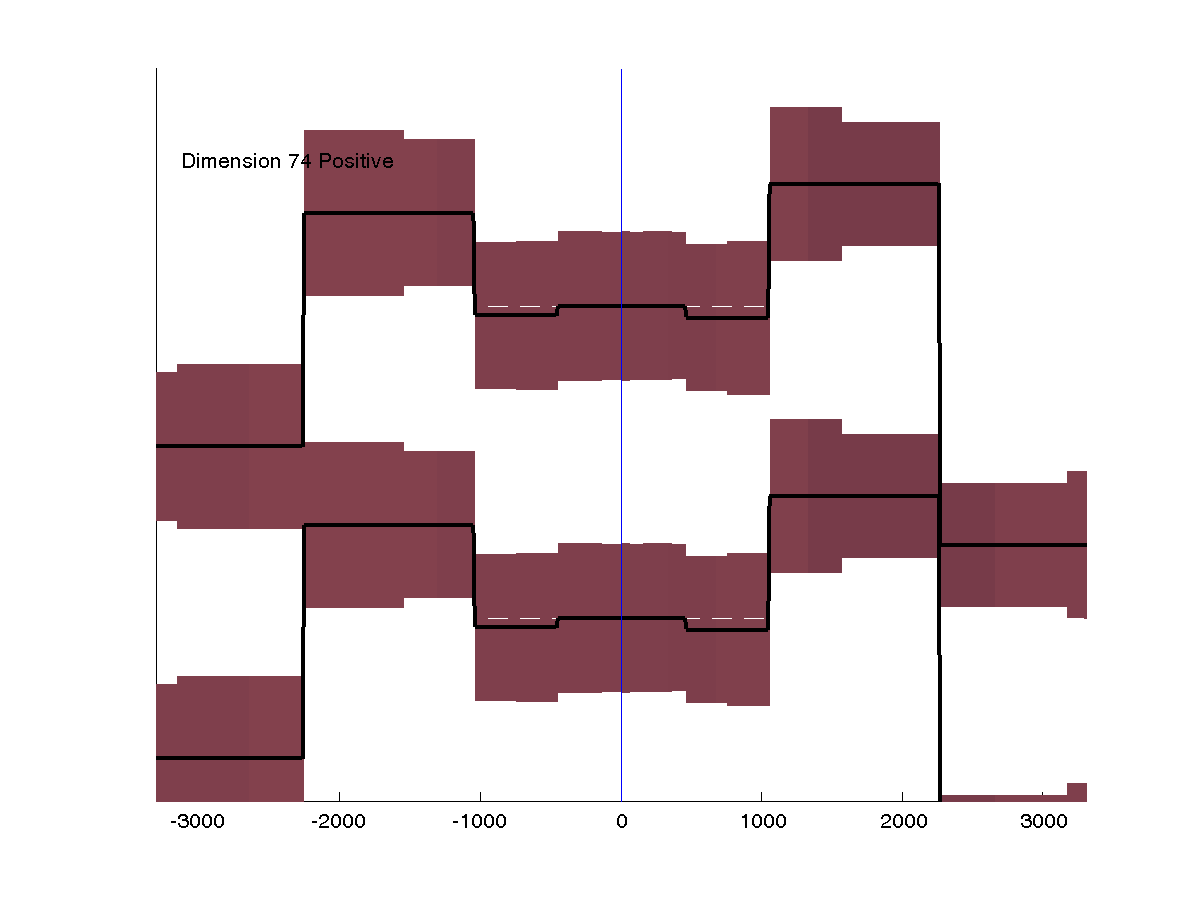

Dimension 74

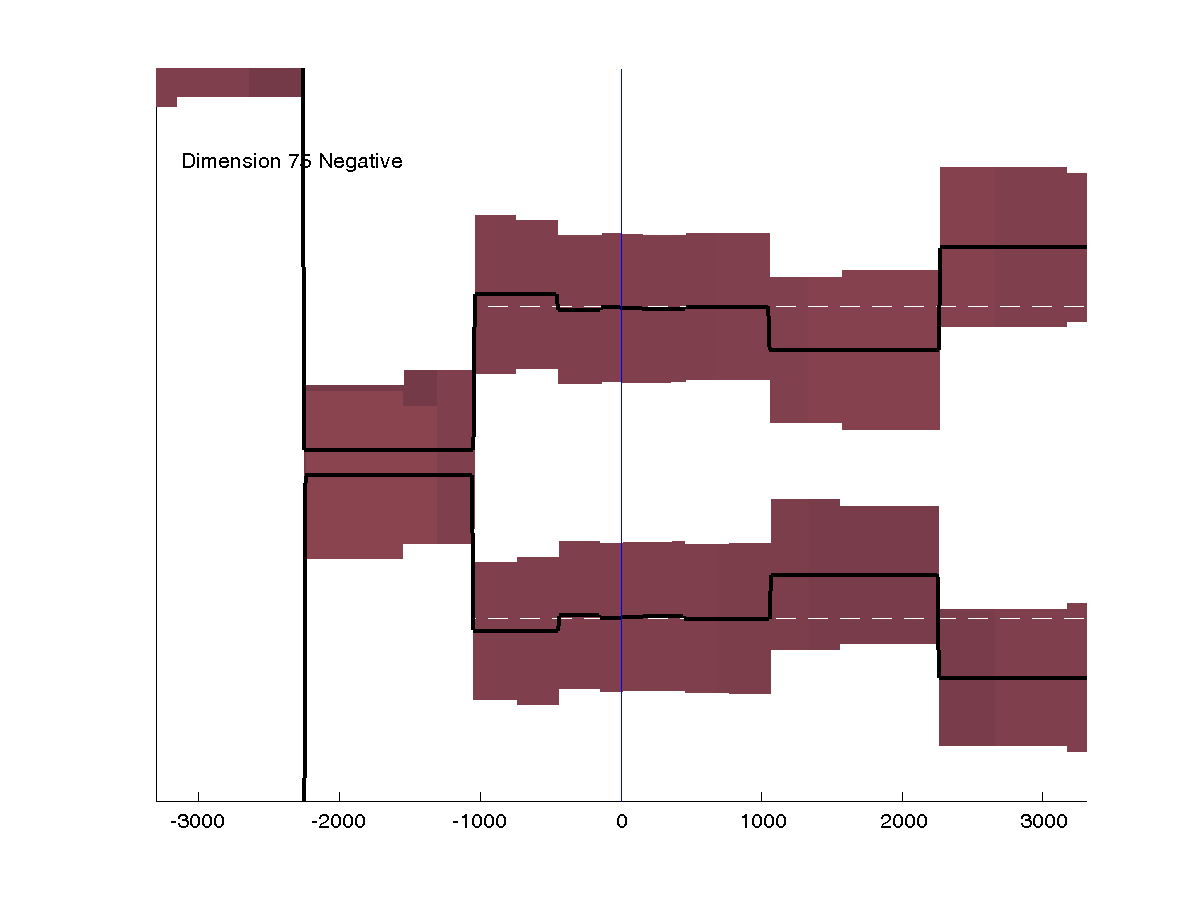

Dimension 75

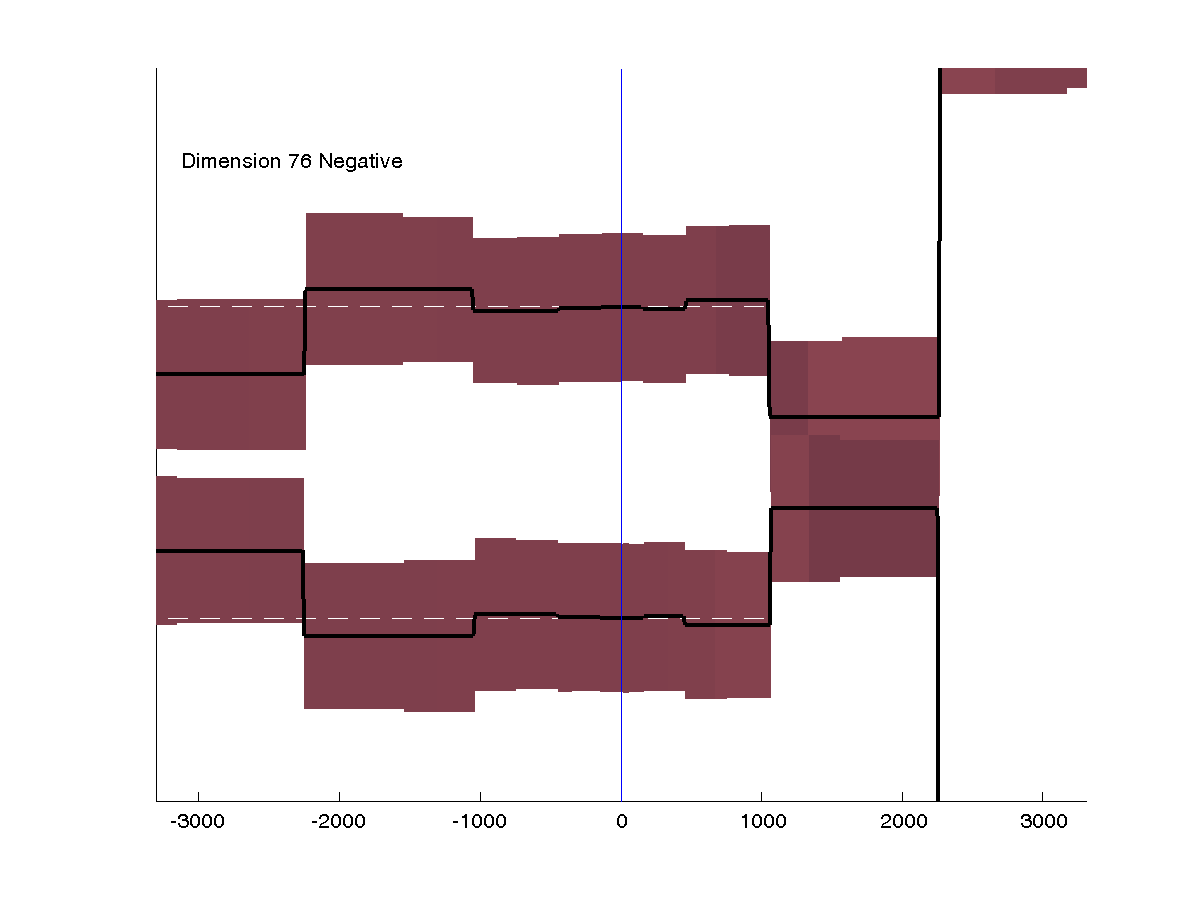

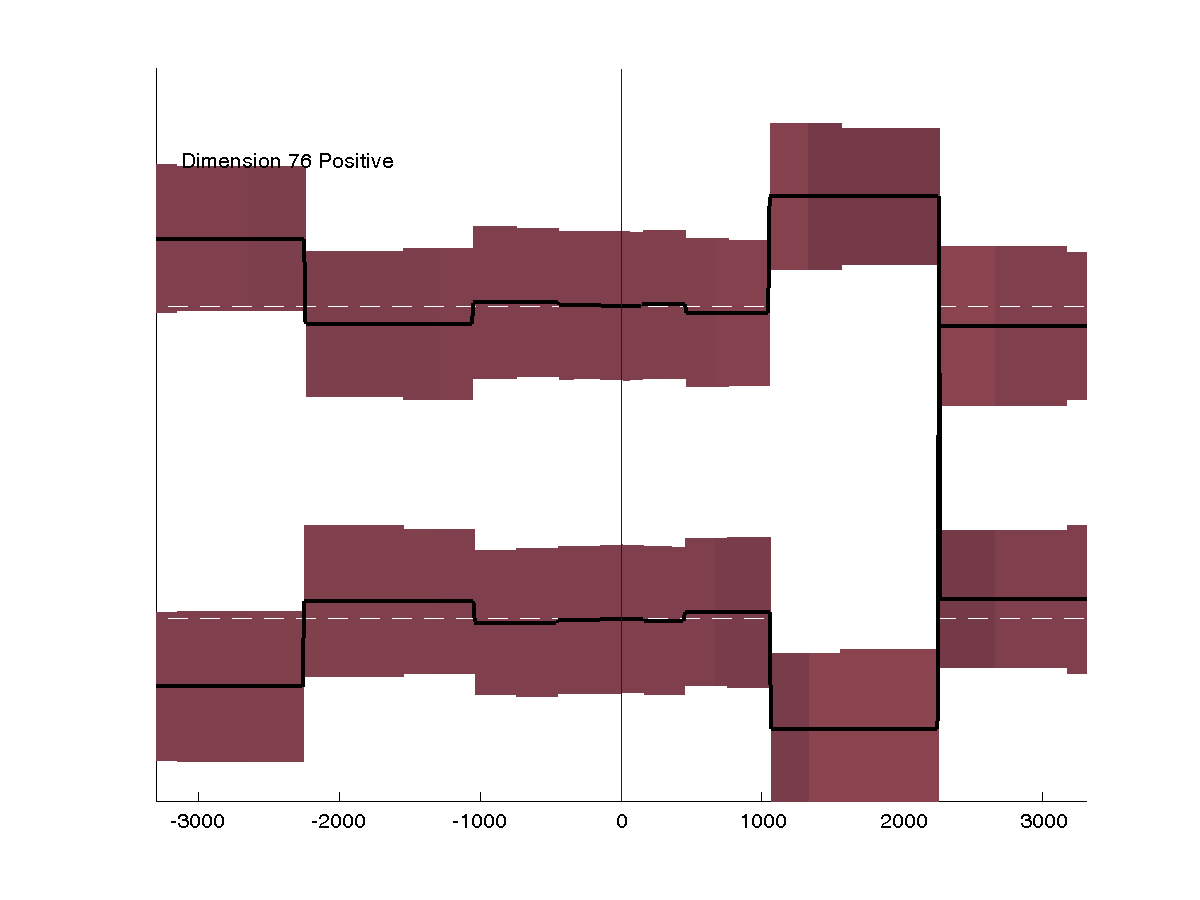

Dimension 76

Nigel Ward, December 2013
